ATP – Structure & Function Anaerobic and Aerobic Respiration Mitochondria презентация

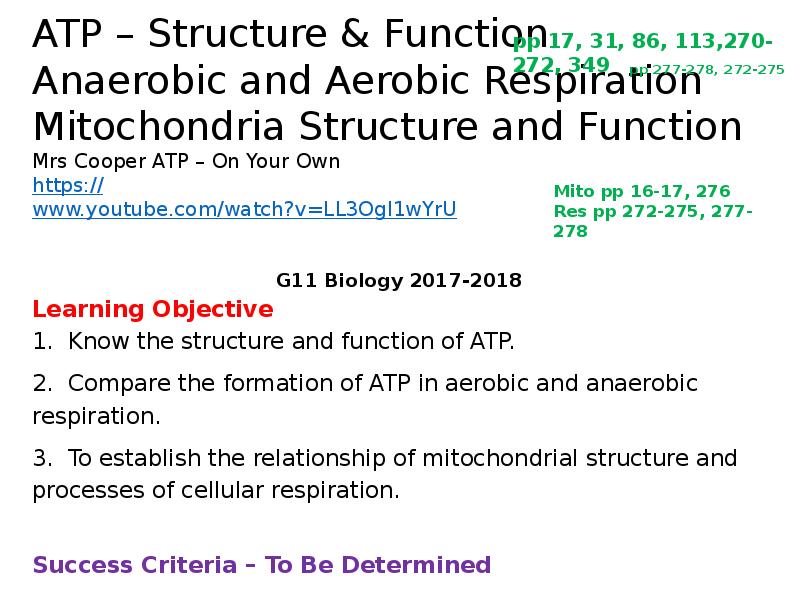

ATP – Structure & Function Anaerobic and Aerobic Respiration Mitochondria Structure and Function G11 Biology 2017-2018 Learning Objective 1. Know the structure and function of ATP. 2. Compare the formation of ATP in aerobic and anaerobic respiration. 3. To establish the relationship of mitochondrial structure and processes of cellular respiration. Success Criteria – To Be Determined

Terminology

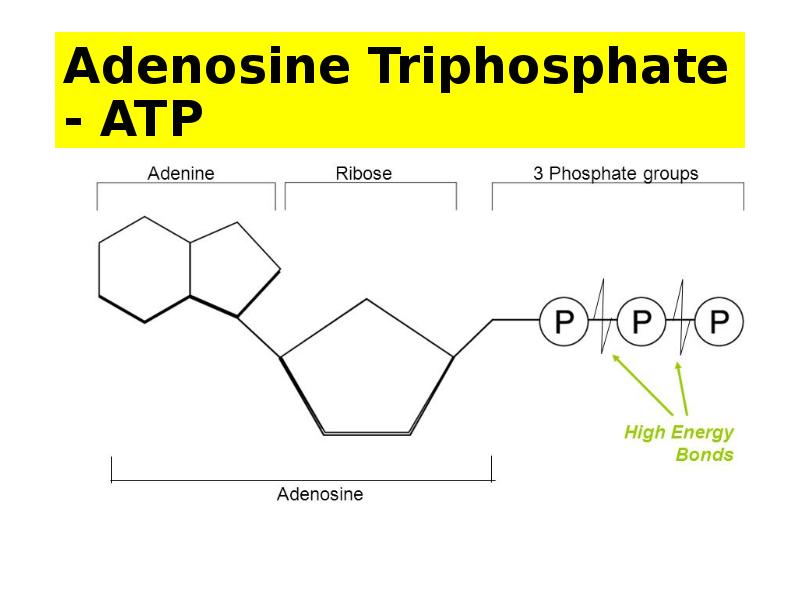

Adenosine Triphosphate - ATP

Adenosine TriphosPhate

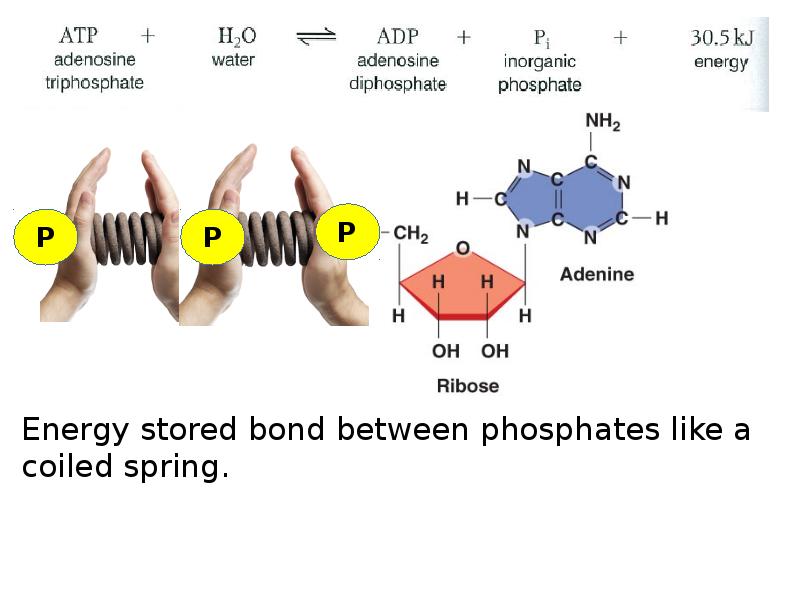

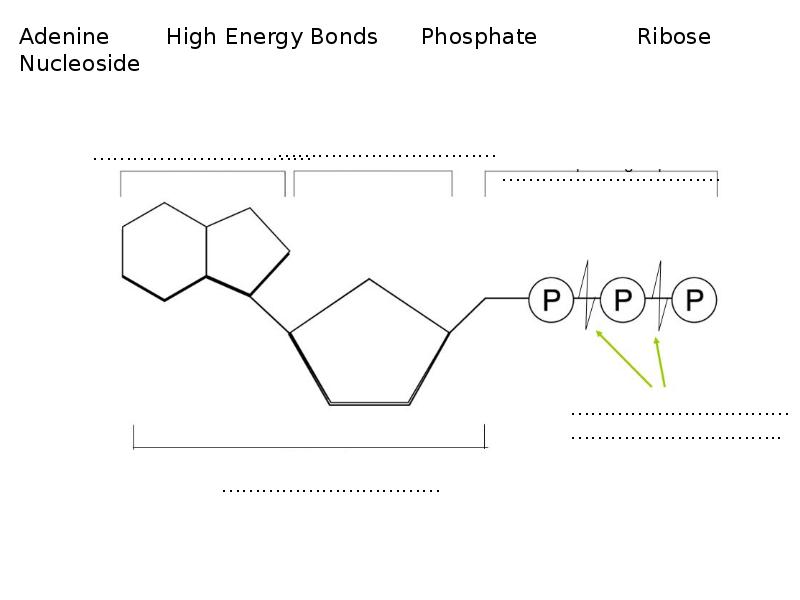

Diagram and Label on your desk ATP, ADP, AMP Diagram and Label on your desk ATP, ADP, AMP Inorganic Phosphate or Pi Adenine Ribose

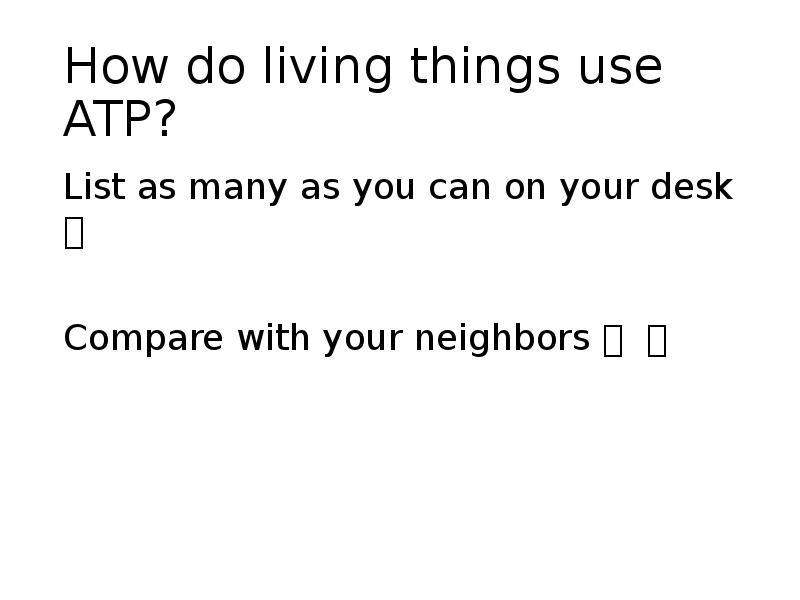

How do living things use ATP? List as many as you can on your desk  Compare with your neighbors  

DNA replication – growth and development Protein synthesis – growth, development, and important biological molecules (enzymes, hormones, muscle tissue) Movement – muscles must to have ATP power contraction Body heat – the metabolic reactions release the energy stored in ATP to your body. Active Transport – ATP provides energy to move molecules against the gradient.

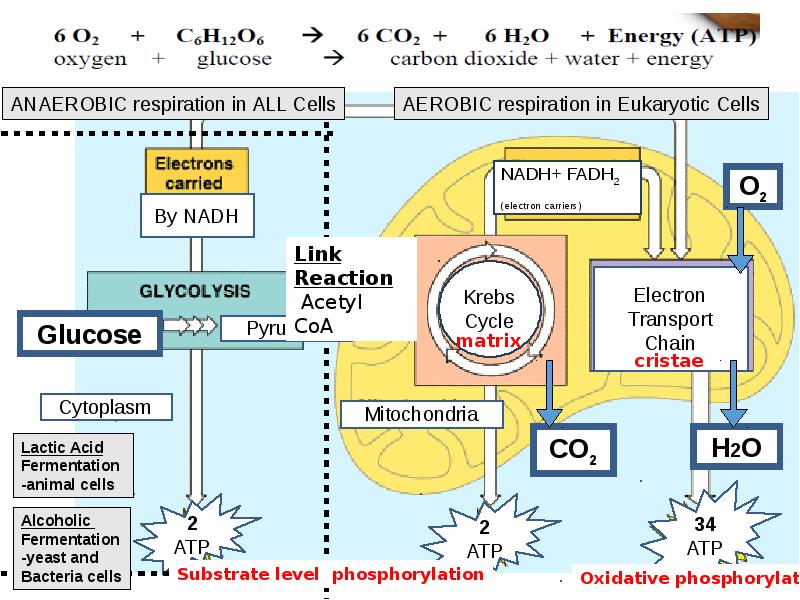

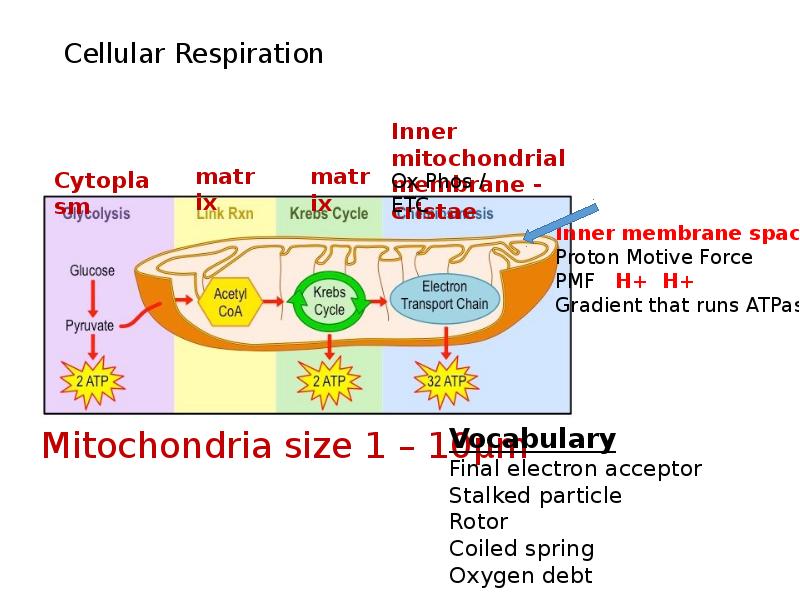

Cellular Respiration

ATP Production

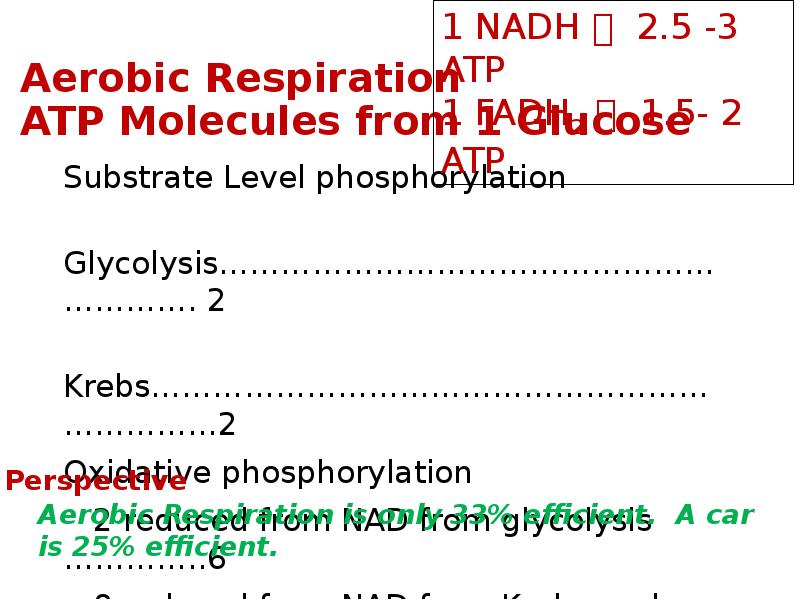

Aerobic Respiration ATP Molecules from 1 Glucose Substrate Level phosphorylation Glycolysis……………………………………………………. 2 Krebs……………………………………………………………2 Oxidative phosphorylation 2 reduced from NAD from glycolysis …………..6 8 reduced from NAD from Krebs cycle ……….24 2 reduced from FAD from Krebs cycle ……… 4

Substrate-level phosphorylation

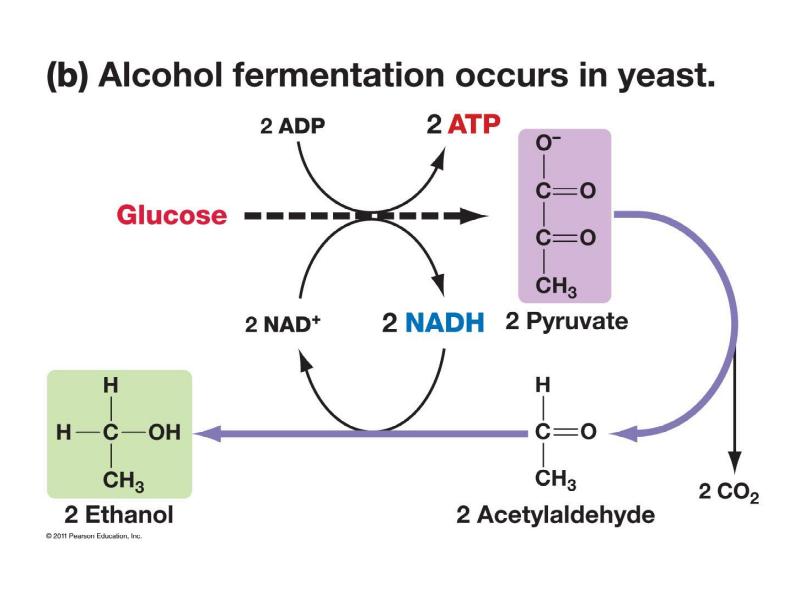

Anaerobic Respiration Alcoholic Fermentation – 2 step process

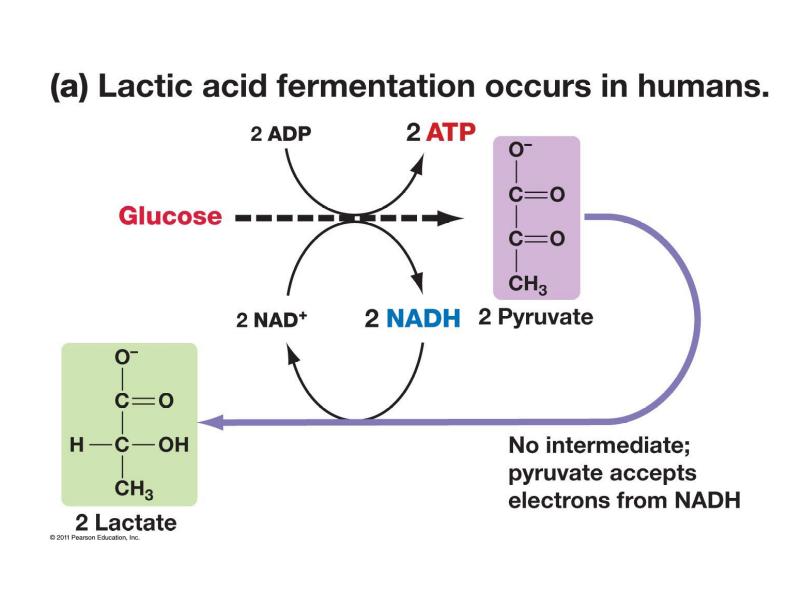

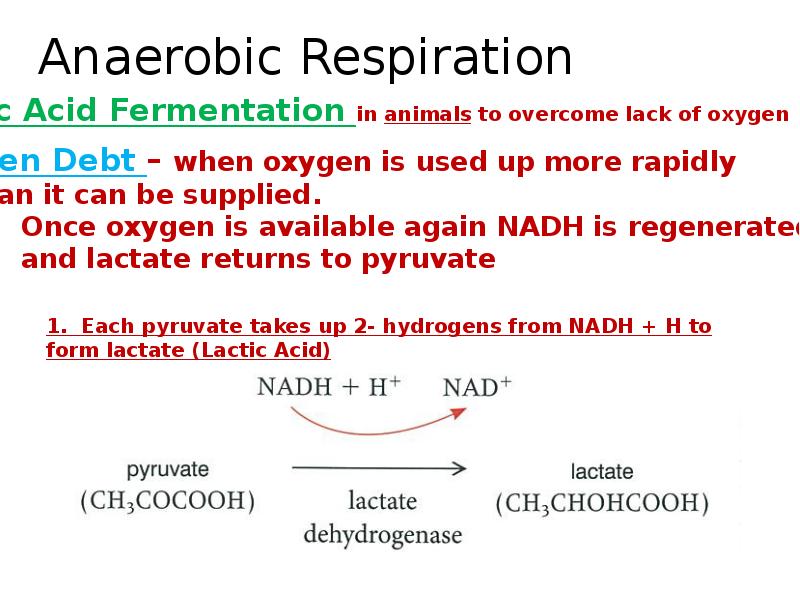

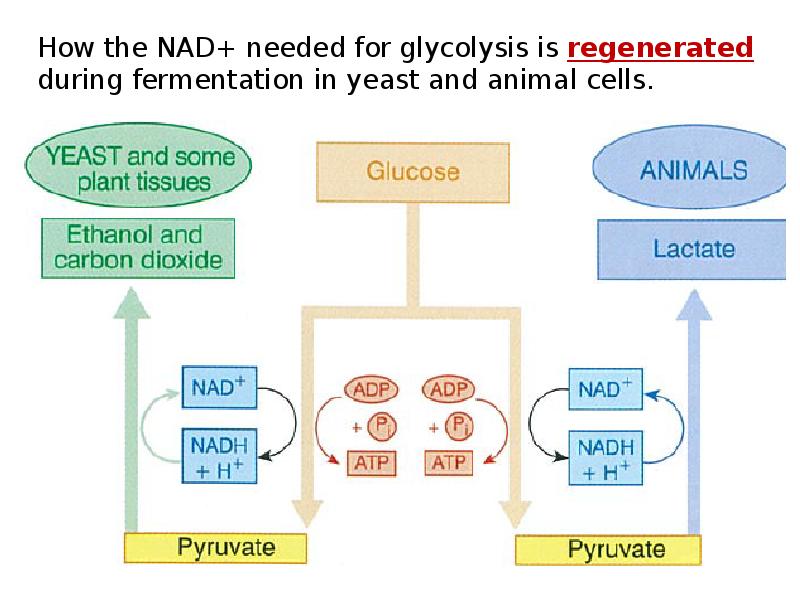

Anaerobic Respiration

Metabolic Pathways, Mitochondria, ATP Anaerobic – Aerobic Metabolism Anabolic – catabolic Energy – currency Anaerobic – aerobic Substrate level phosphorylation – oxidative phosphorlyation

Electron Micrograph of Mitochondria
