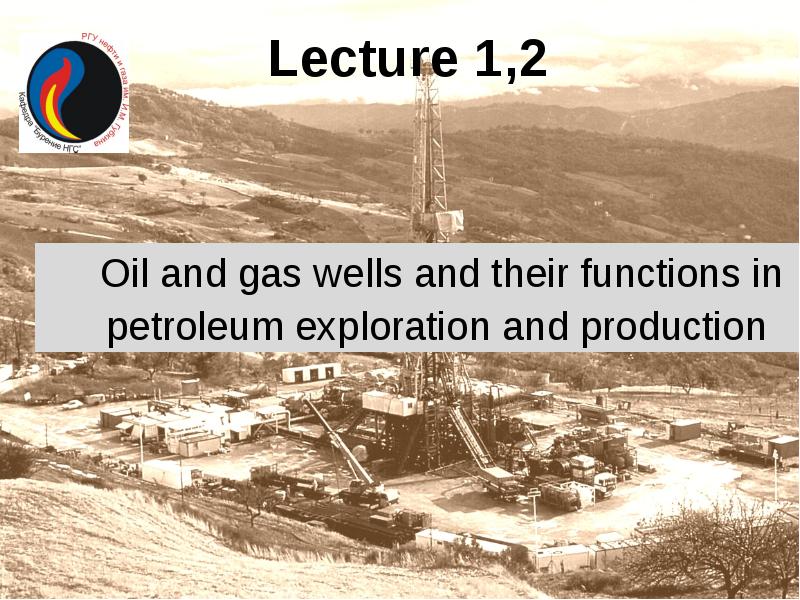

Lecture 1,2 Oil and gas wells and their functions in petroleum exploration and презентация

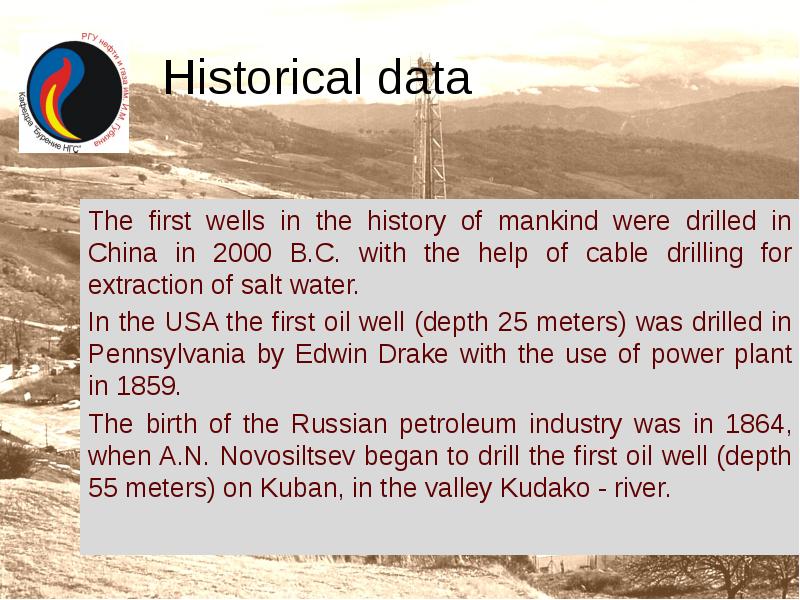

Historical data The first wells in the history of mankind were drilled in China in 2000 B.C. with the help of cable drilling for extraction of salt water. In the USA the first oil well (depth 25 meters) was drilled in Pennsylvania by Edwin Drake with the use of power plant in 1859. The birth of the Russian petroleum industry was in 1864, when A.N. Novosiltsev began to drill the first oil well (depth 55 meters) on Kuban, in the valley Kudako - river.

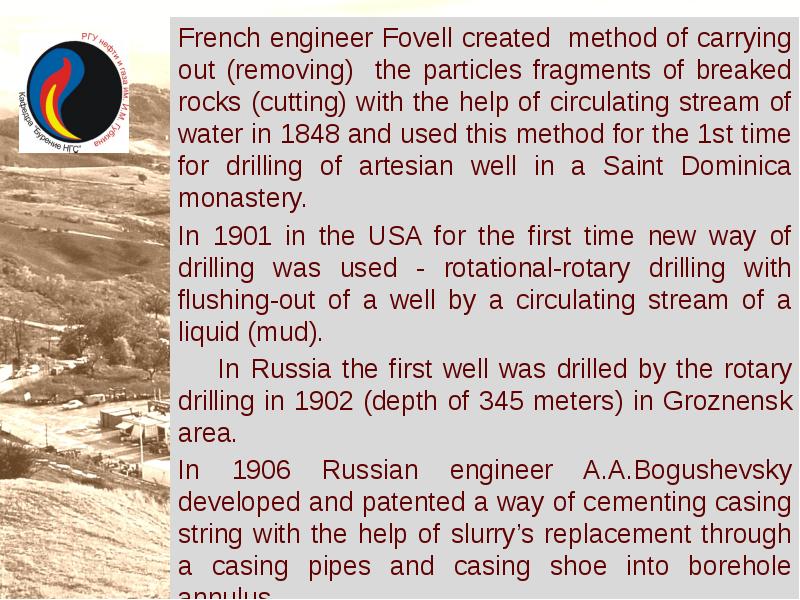

French engineer Fovell created method of carrying out (removing) the particles fragments of breaked rocks (cutting) with the help of circulating stream of water in 1848 and used this method for the 1st time for drilling of artesian well in a Saint Dominica monastery. French engineer Fovell created method of carrying out (removing) the particles fragments of breaked rocks (cutting) with the help of circulating stream of water in 1848 and used this method for the 1st time for drilling of artesian well in a Saint Dominica monastery. In 1901 in the USA for the first time new way of drilling was used - rotational-rotary drilling with flushing-out of a well by a circulating stream of a liquid (mud). In Russia the first well was drilled by the rotary drilling in 1902 (depth of 345 meters) in Groznensk area. In 1906 Russian engineer A.A.Bogushevsky developed and patented a way of cementing casing string with the help of slurry’s replacement through a casing pipes and casing shoe into borehole annulus.

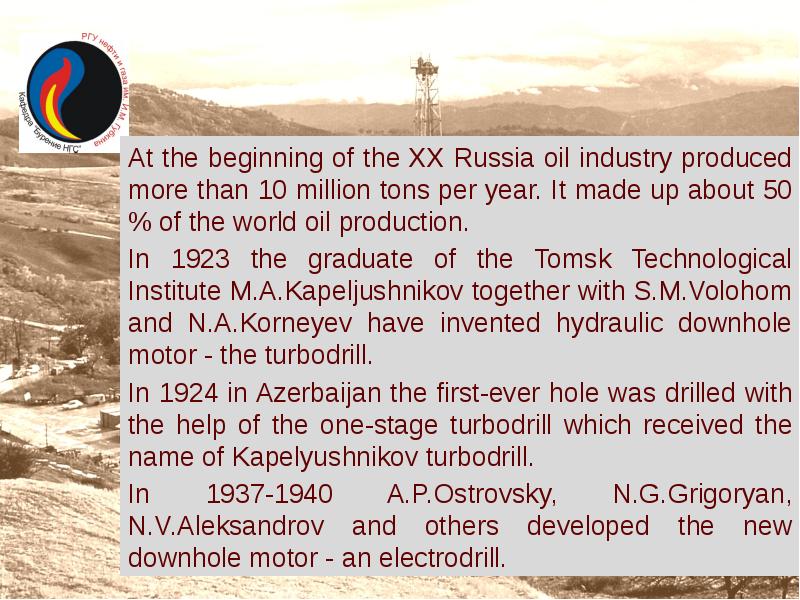

At the beginning of the XX Russia oil industry produced more than 10 million tons per year. It made up about 50 % of the world oil production. At the beginning of the XX Russia oil industry produced more than 10 million tons per year. It made up about 50 % of the world oil production. In 1923 the graduate of the Tomsk Technological Institute M.A.Kapeljushnikov together with S.M.Volohom and N.A.Korneyev have invented hydraulic downhole motor - the turbodrill. In 1924 in Azerbaijan the first-ever hole was drilled with the help of the one-stage turbodrill which received the name of Kapelyushnikov turbodrill. In 1937-1940 A.P.Ostrovsky, N.G.Grigoryan, N.V.Aleksandrov and others developed the new downhole motor - an electrodrill.

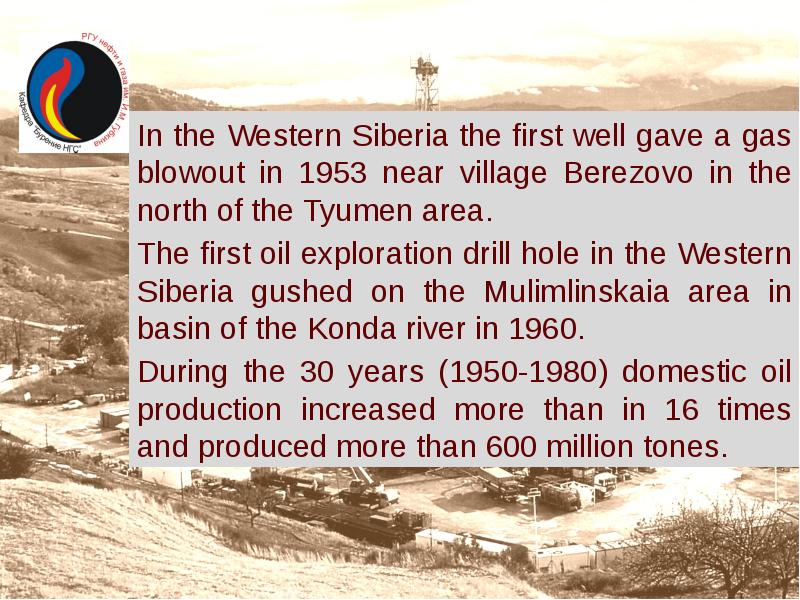

In the Western Siberia the first well gave a gas blowout in 1953 near village Berezovo in the north of the Tyumen area. In the Western Siberia the first well gave a gas blowout in 1953 near village Berezovo in the north of the Tyumen area. The first oil exploration drill hole in the Western Siberia gushed on the Mulimlinskaia area in basin of the Konda river in 1960. During the 30 years (1950-1980) domestic oil production increased more than in 16 times and produced more than 600 million tones.

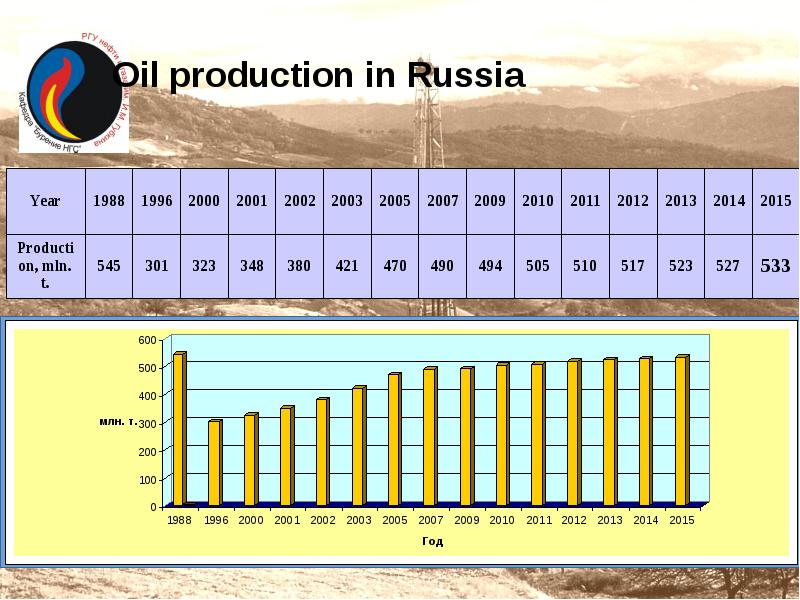

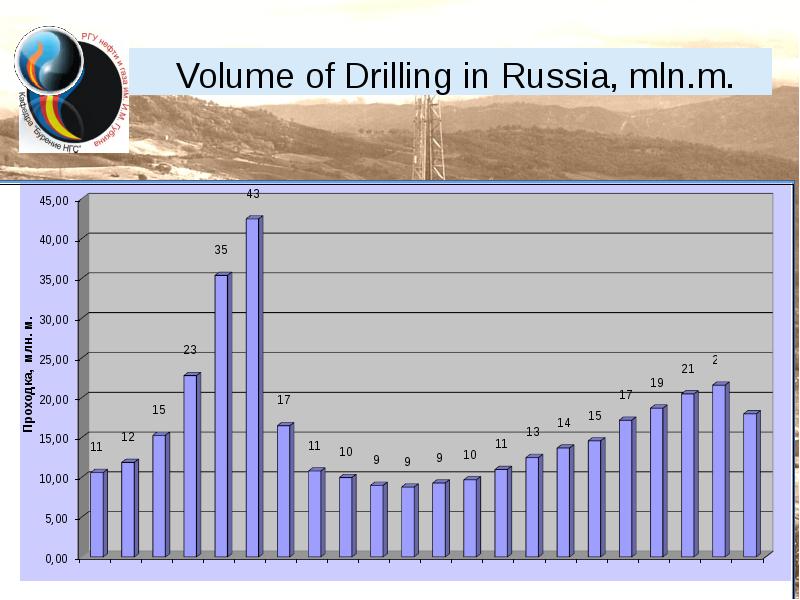

Oil production in Russia

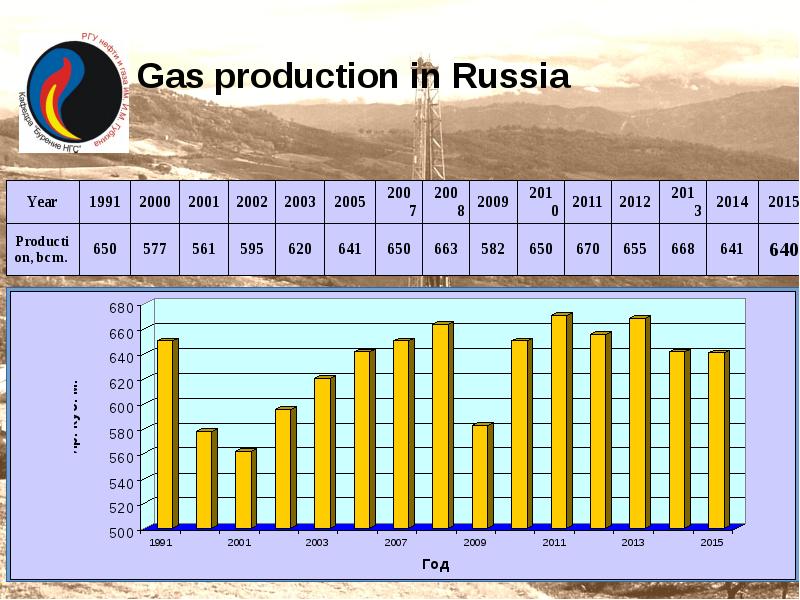

Gas production in Russia

Definition

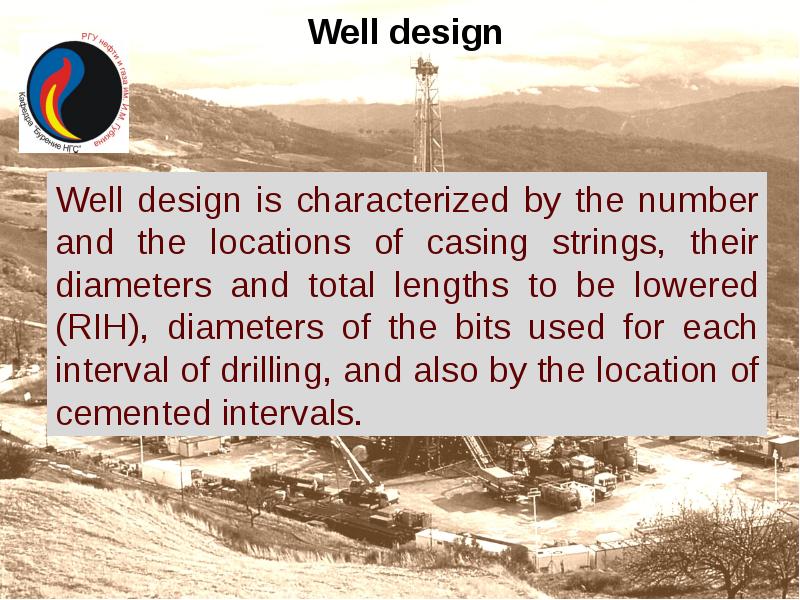

Well design

Abbreviations RIH - run into hole (insert, lower) POOH - pool out of hole (lift, raise) ROP - rate of penetration WOB - weight on the bit (load) RPM - revolutions per minute

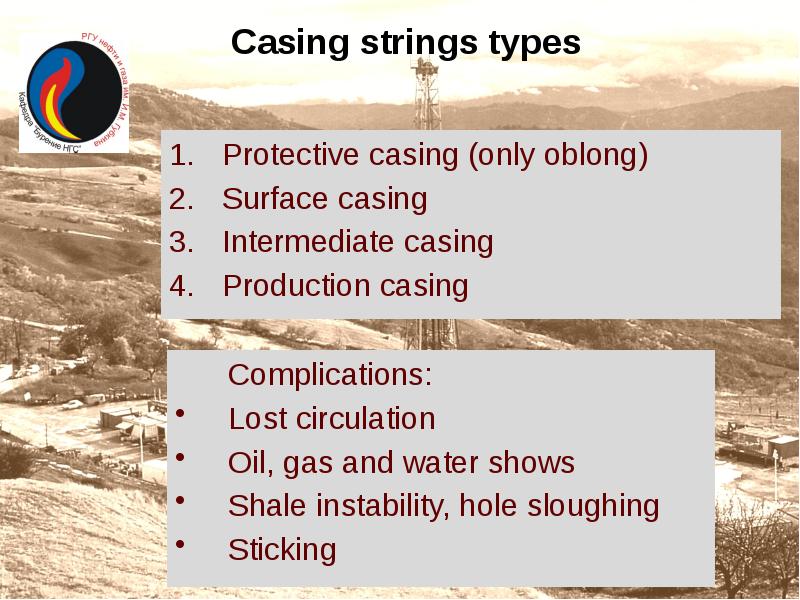

Casing strings types Protective casing (only oblong) Surface casing Intermediate casing Production casing

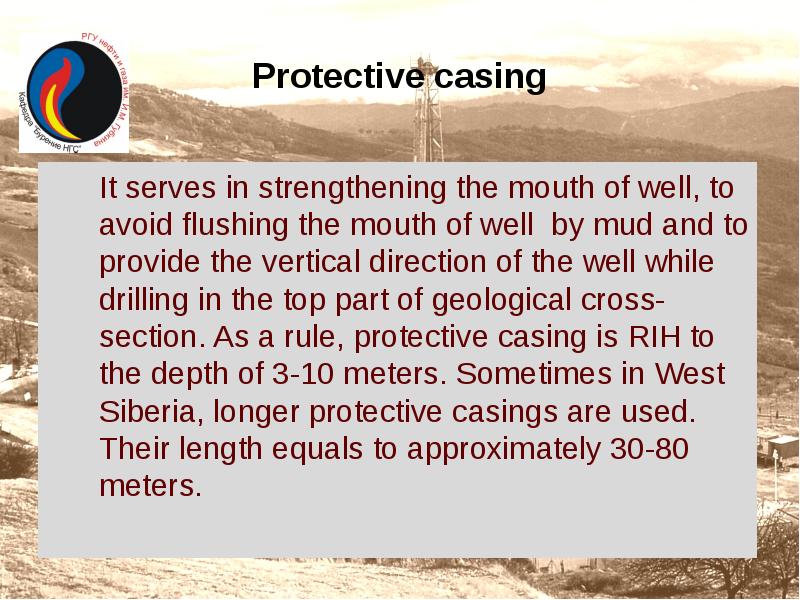

Protective casing It serves in strengthening the mouth of well, to avoid flushing the mouth of well by mud and to provide the vertical direction of the well while drilling in the top part of geological cross-section. As a rule, protective casing is RIH to the depth of 3-10 meters. Sometimes in West Siberia, longer protective casings are used. Their length equals to approximately 30-80 meters.

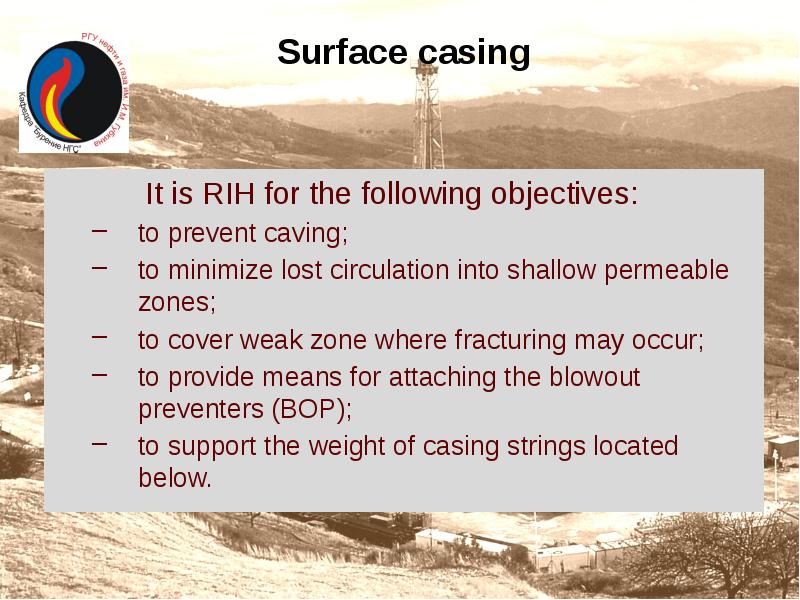

Surface casing It is RIH for the following objectives: to prevent caving; to minimize lost circulation into shallow permeable zones; to cover weak zone where fracturing may occur; to provide means for attaching the blowout preventers (BOP); to support the weight of casing strings located below.

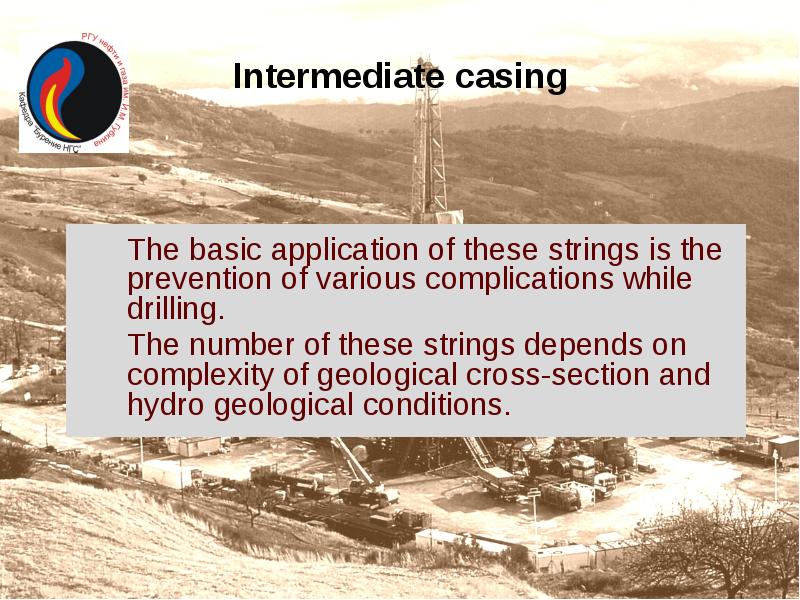

Intermediate casing The basic application of these strings is the prevention of various complications while drilling. The number of these strings depends on complexity of geological cross-section and hydro geological conditions.

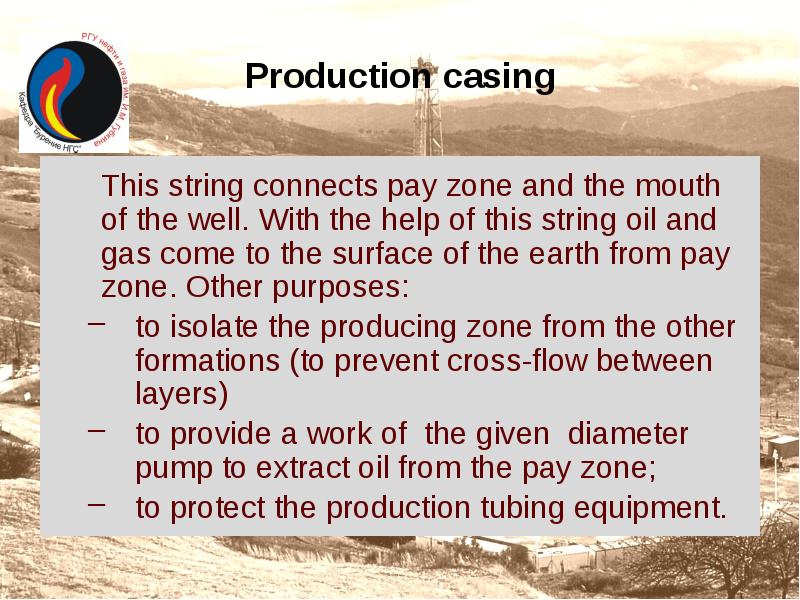

Production casing This string connects pay zone and the mouth of the well. With the help of this string oil and gas come to the surface of the earth from pay zone. Other purposes: to isolate the producing zone from the other formations (to prevent cross-flow between layers) to provide a work of the given diameter pump to extract oil from the pay zone; to protect the production tubing equipment.

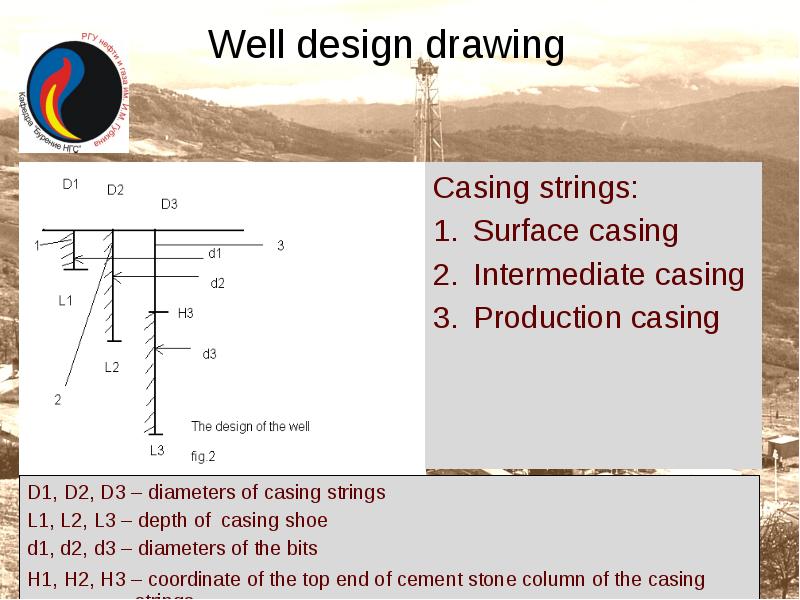

Well design drawing

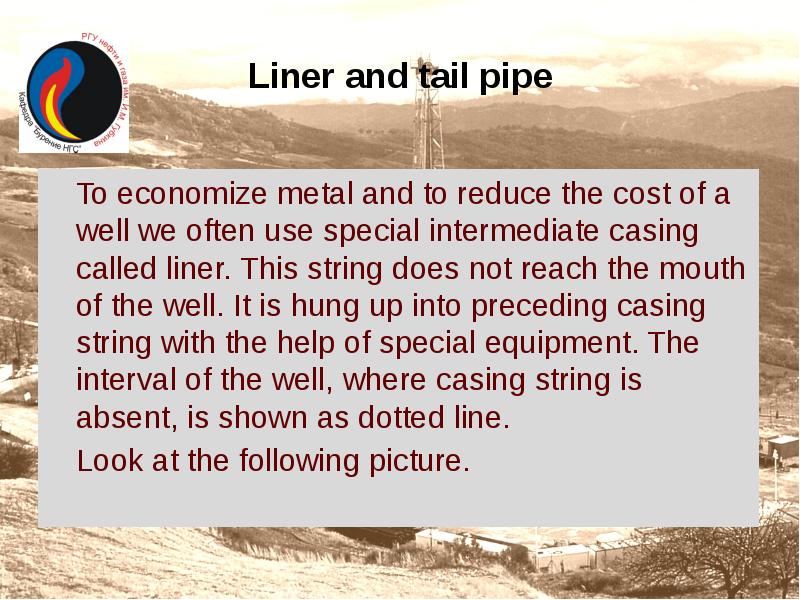

Liner and tail pipe To economize metal and to reduce the cost of a well we often use special intermediate casing called liner. This string does not reach the mouth of the well. It is hung up into preceding casing string with the help of special equipment. The interval of the well, where casing string is absent, is shown as dotted line. Look at the following picture.

Well design with liner

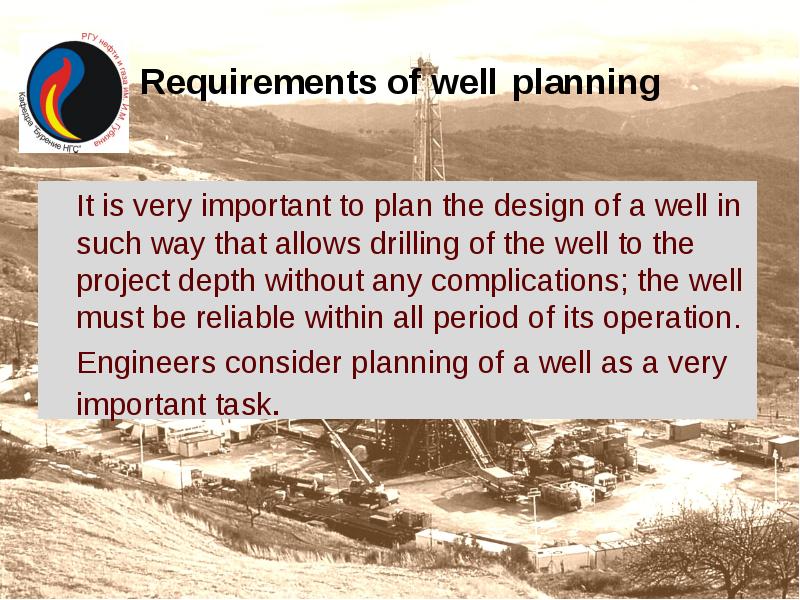

Requirements of well planning It is very important to plan the design of a well in such way that allows drilling of the well to the project depth without any complications; the well must be reliable within all period of its operation. Engineers consider planning of a well as a very important task.

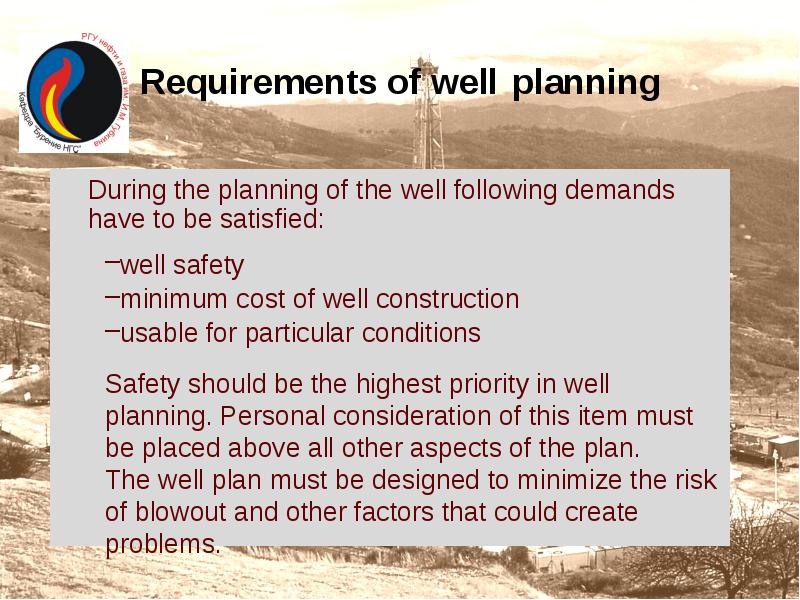

Requirements of well planning During the planning of the well following demands have to be satisfied: well safety minimum cost of well construction usable for particular conditions Safety should be the highest priority in well planning. Personal consideration of this item must be placed above all other aspects of the plan. The well plan must be designed to minimize the risk of blowout and other factors that could create problems.

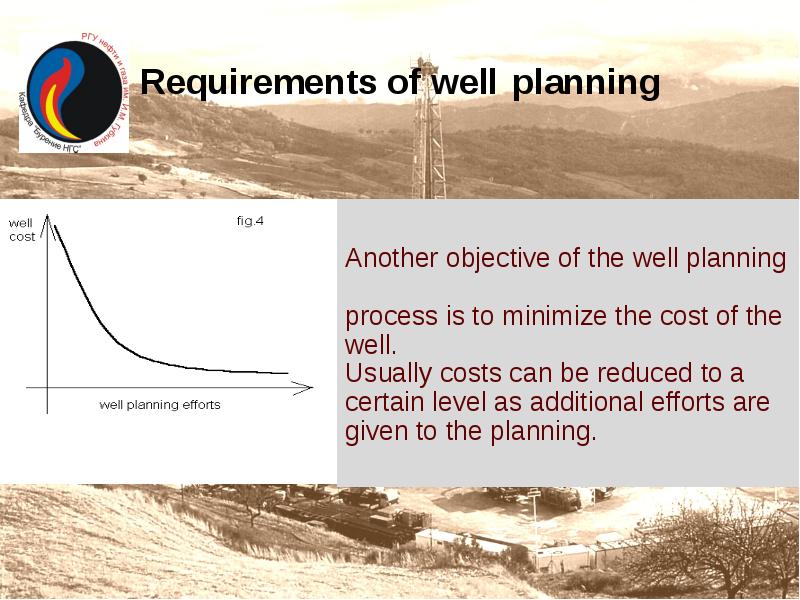

Another objective of the well planning process is to minimize the cost of the well. Usually costs can be reduced to a certain level as additional efforts are given to the planning.

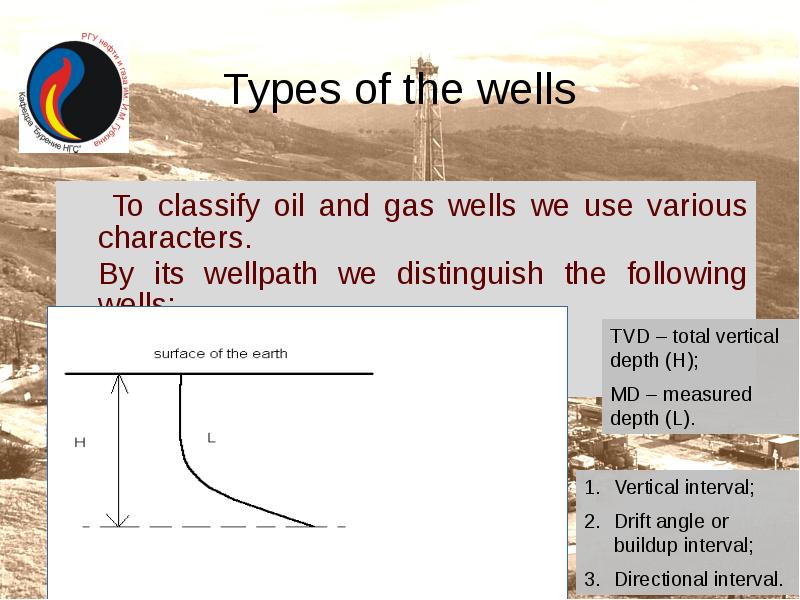

Types of the wells

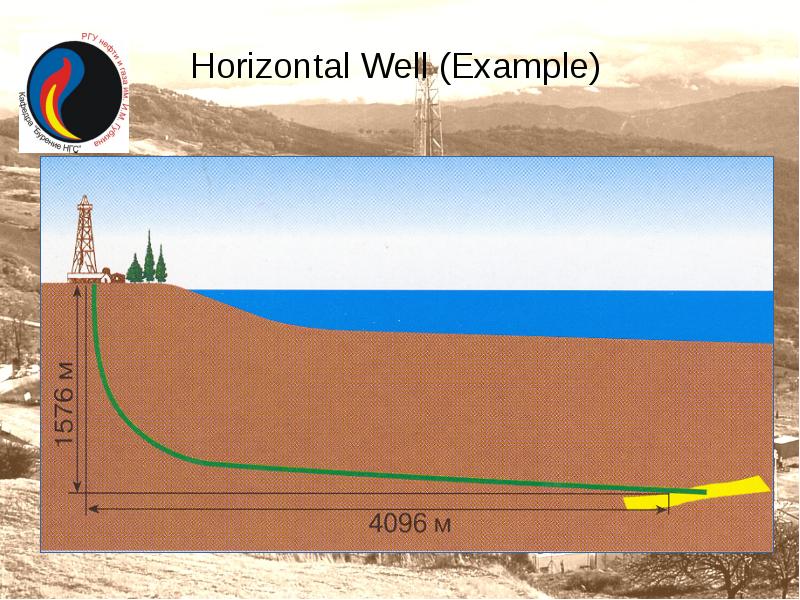

Horizontal Well (Example)

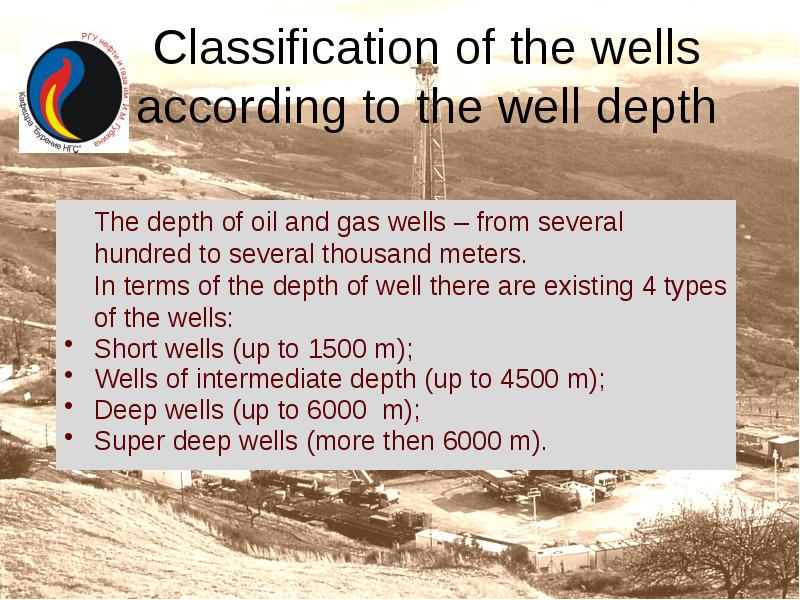

Classification of the wells according to the well depth The depth of oil and gas wells – from several hundred to several thousand meters. In terms of the depth of well there are existing 4 types of the wells: Short wells (up to 1500 m); Wells of intermediate depth (up to 4500 m); Deep wells (up to 6000 m); Super deep wells (more then 6000 m).

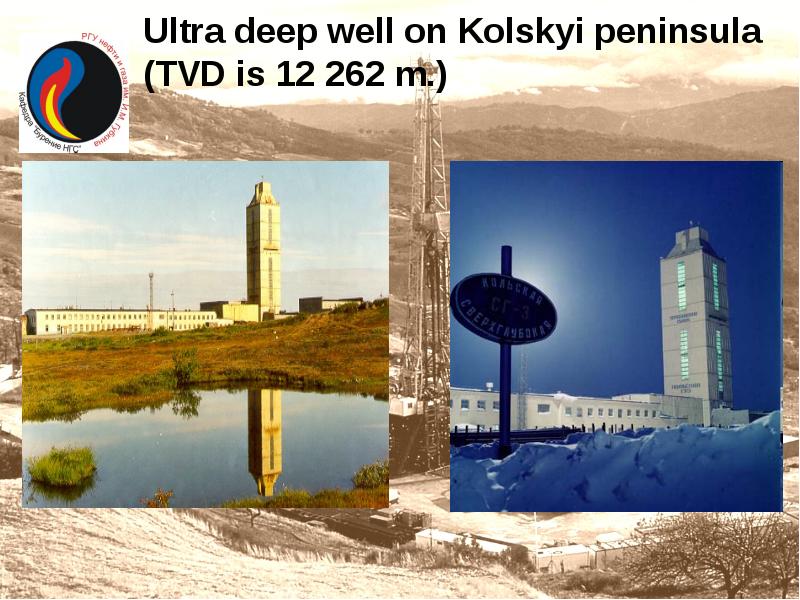

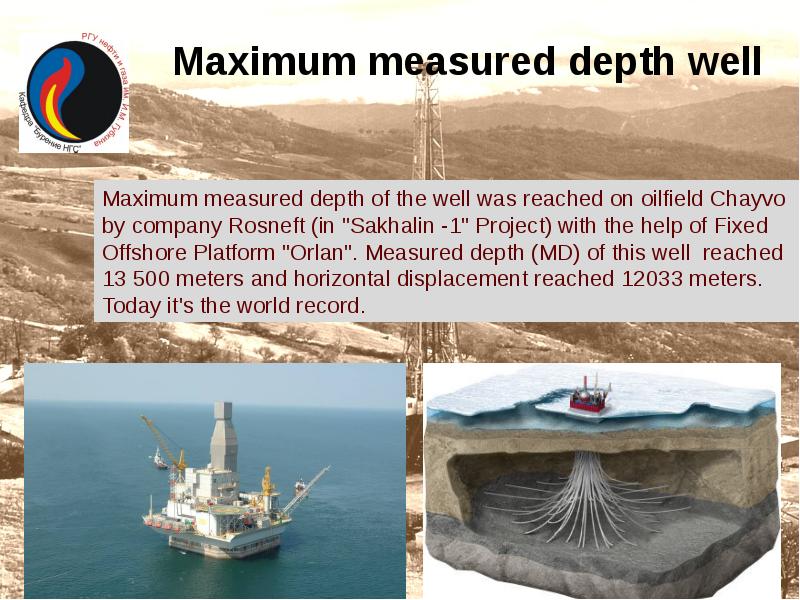

Ultra deep well on Kolskyi peninsula (TVD is 12 262 m.)

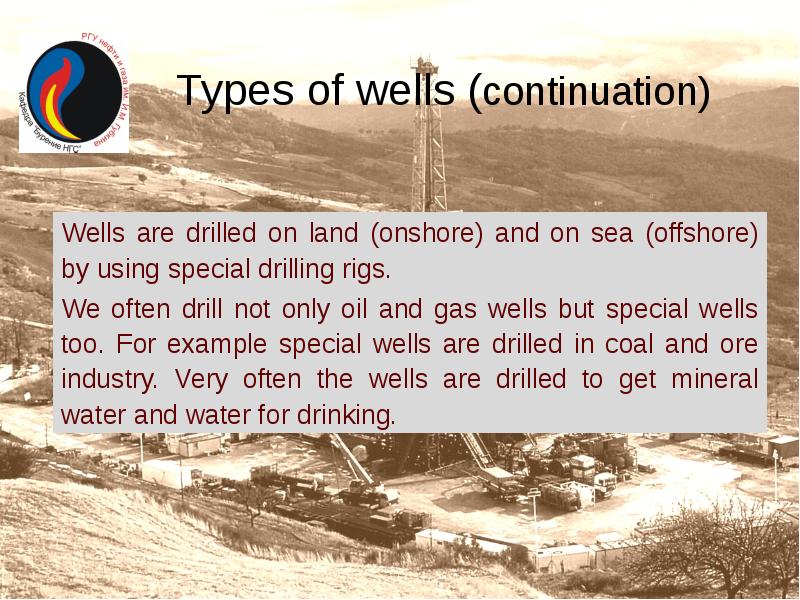

Types of wells (continuation)

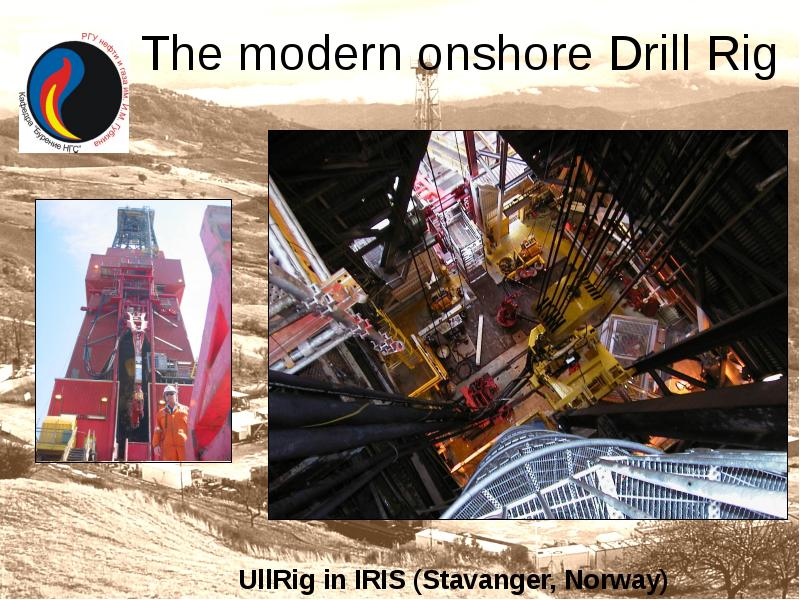

The modern onshore Drill Rig

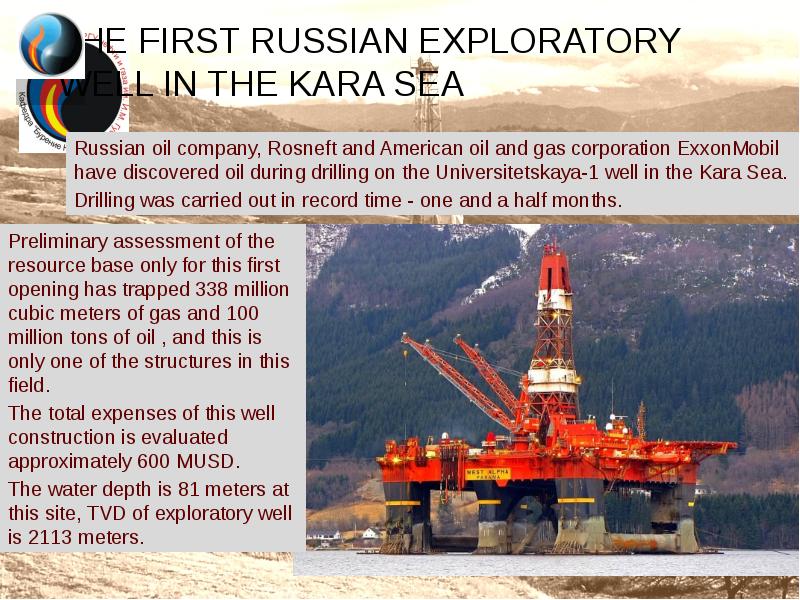

THE FIRST RUSSIAN EXPLORATORY WELL IN THE KARA SEA

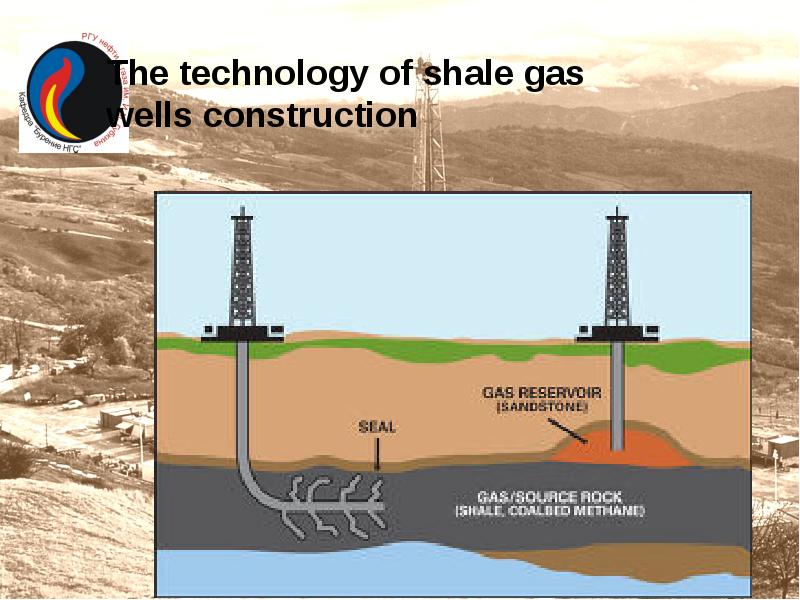

The technology of shale gas wells construction

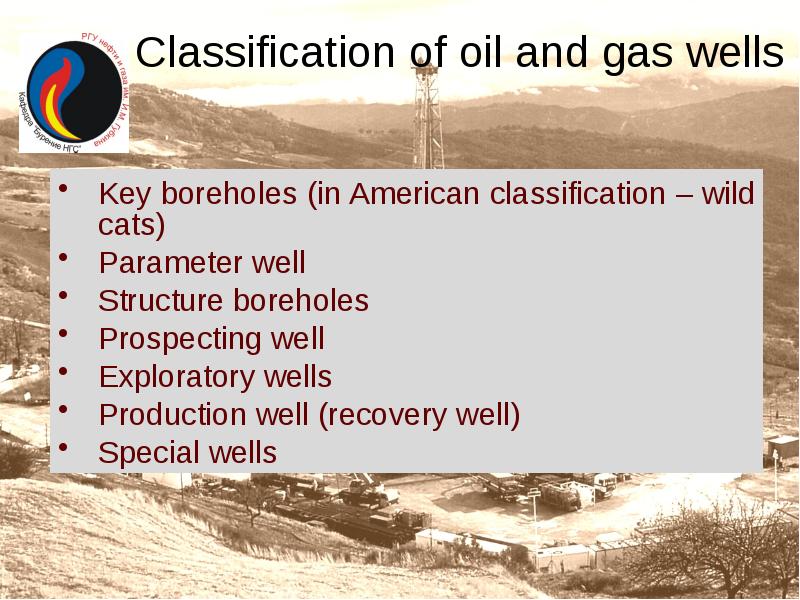

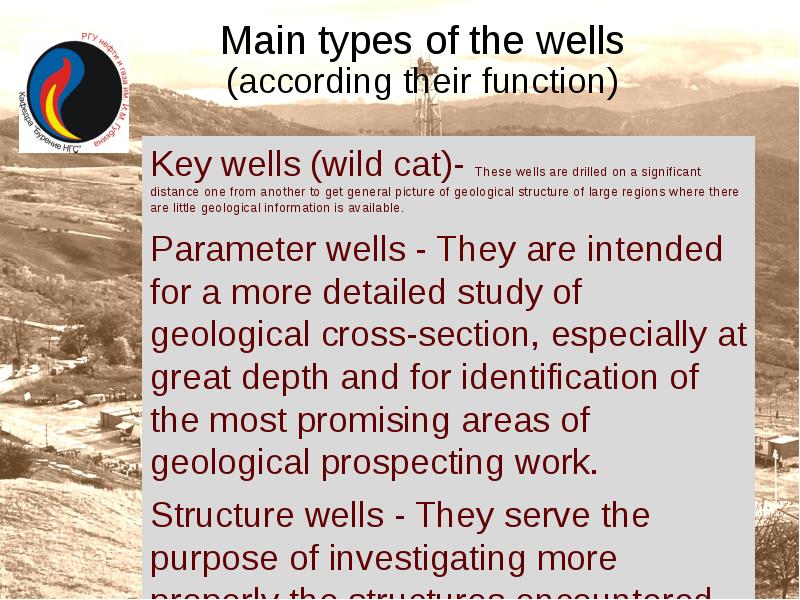

Classification of oil and gas wells

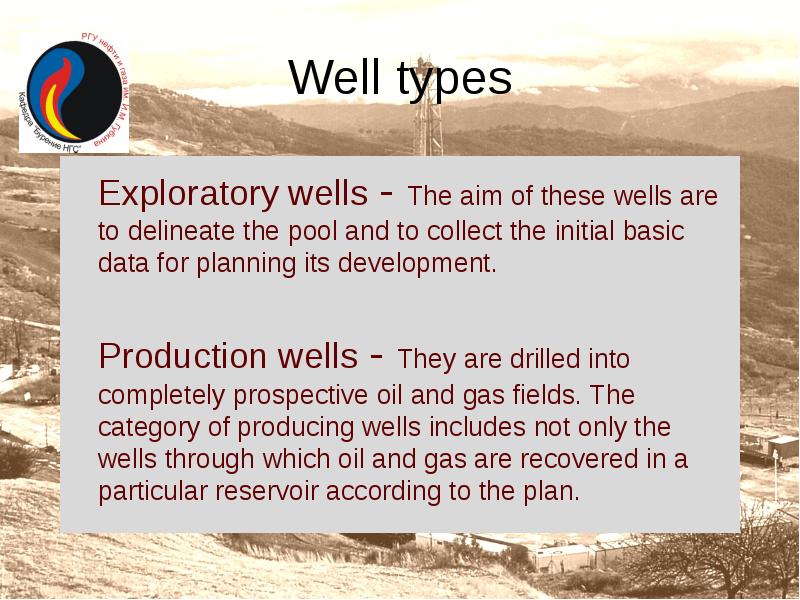

Well types Exploratory wells - The aim of these wells are to delineate the pool and to collect the initial basic data for planning its development. Production wells - They are drilled into completely prospective oil and gas fields. The category of producing wells includes not only the wells through which oil and gas are recovered in a particular reservoir according to the plan.

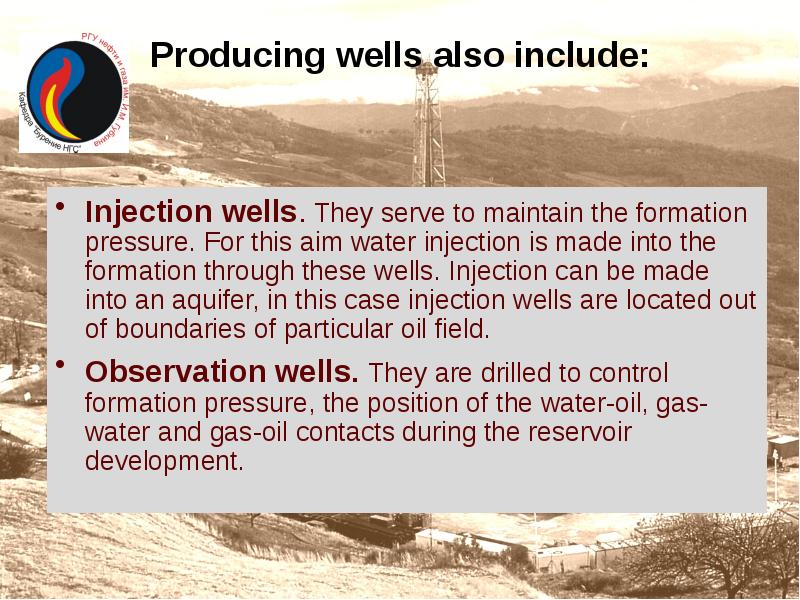

Producing wells also include: Injection wells. They serve to maintain the formation pressure. For this aim water injection is made into the formation through these wells. Injection can be made into an aquifer, in this case injection wells are located out of boundaries of particular oil field. Observation wells. They are drilled to control formation pressure, the position of the water-oil, gas-water and gas-oil contacts during the reservoir development.

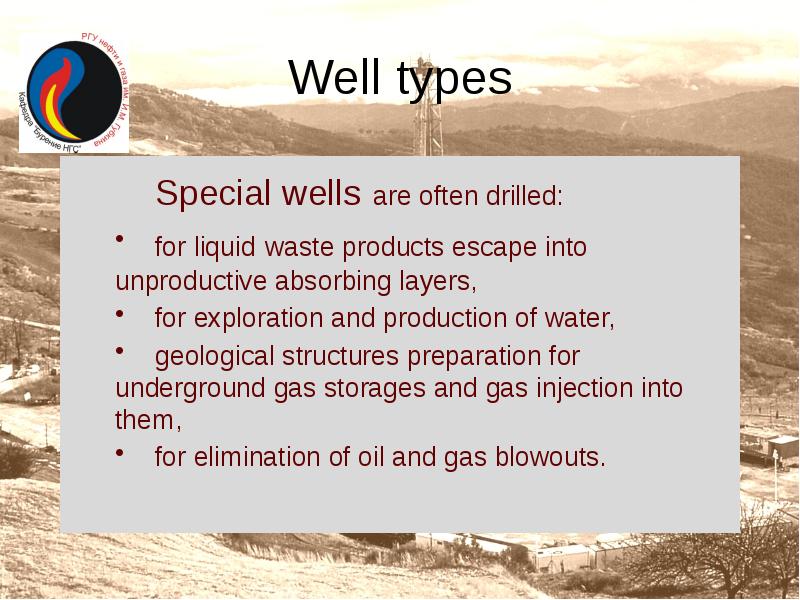

Well types Special wells are often drilled: for liquid waste products escape into unproductive absorbing layers, for exploration and production of water, geological structures preparation for underground gas storages and gas injection into them, for elimination of oil and gas blowouts.
