RIA in Perspective

Since The Beginning of Time…

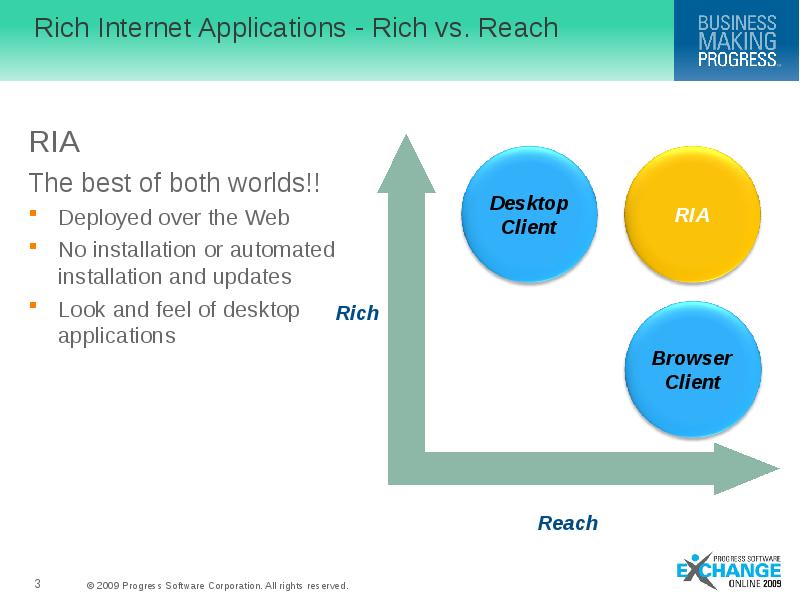

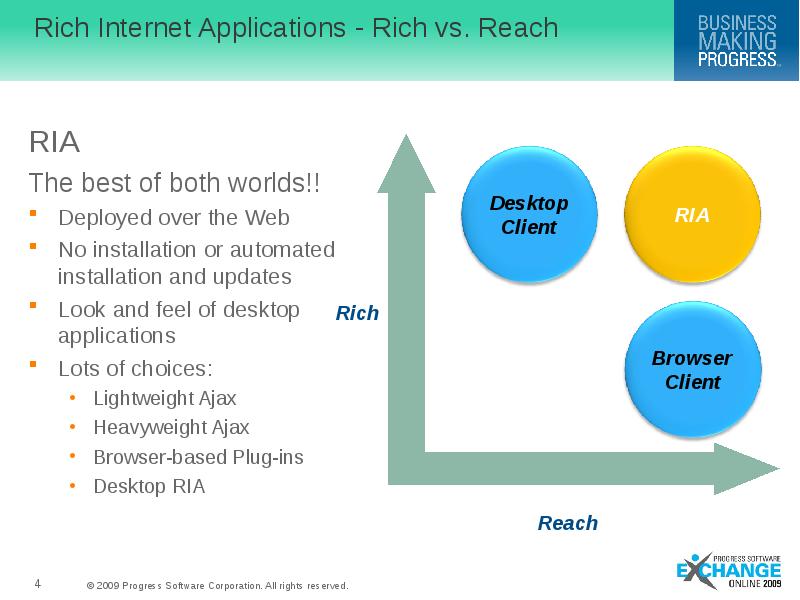

Rich Internet Applications - Rich vs. Reach RIA The best of both worlds!! Deployed over the Web No installation or automated installation and updates Look and feel of desktop applications

Rich Internet Applications - Rich vs. Reach RIA The best of both worlds!! Deployed over the Web No installation or automated installation and updates Look and feel of desktop applications Lots of choices: Lightweight Ajax Heavyweight Ajax Browser-based Plug-ins Desktop RIA

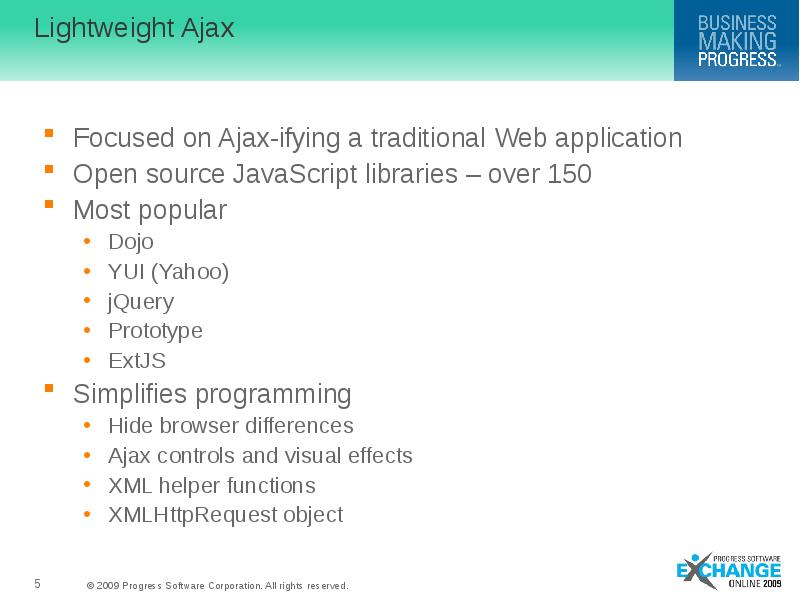

Lightweight Ajax Focused on Ajax-ifying a traditional Web application Open source JavaScript libraries – over 150 Most popular Dojo YUI (Yahoo) jQuery Prototype ExtJS Simplifies programming Hide browser differences Ajax controls and visual effects XML helper functions XMLHttpRequest object

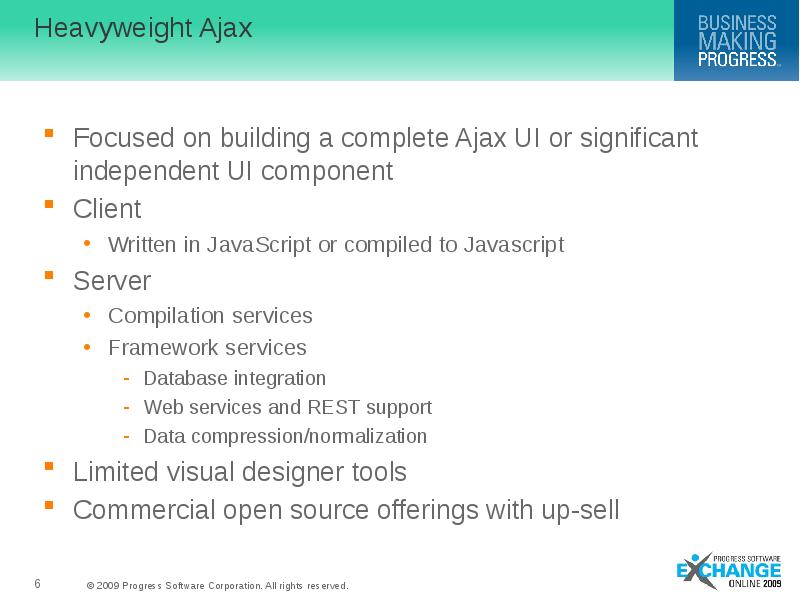

Heavyweight Ajax Focused on building a complete Ajax UI or significant independent UI component Client Written in JavaScript or compiled to Javascript Server Compilation services Framework services Database integration Web services and REST support Data compression/normalization Limited visual designer tools Commercial open source offerings with up-sell

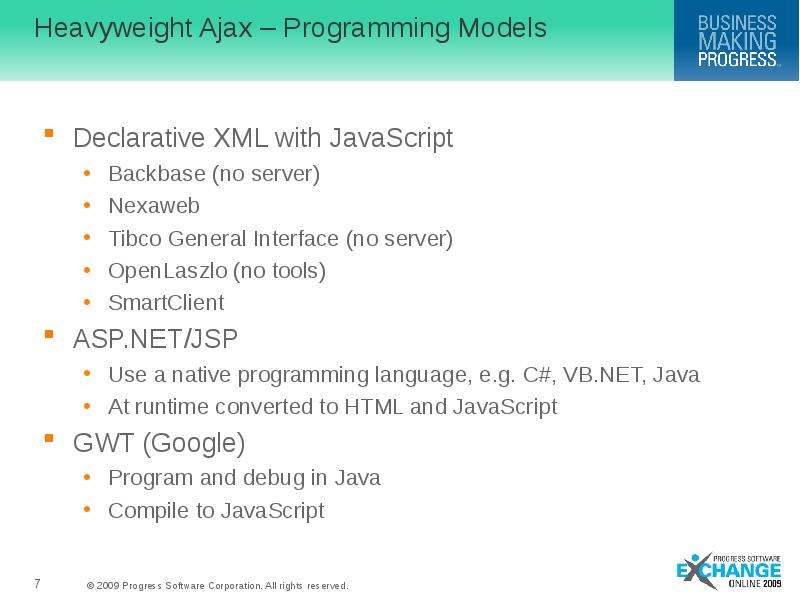

Heavyweight Ajax – Programming Models Declarative XML with JavaScript Backbase (no server) Nexaweb Tibco General Interface (no server) OpenLaszlo (no tools) SmartClient ASP.NET/JSP Use a native programming language, e.g. C#, VB.NET, Java At runtime converted to HTML and JavaScript GWT (Google) Program and debug in Java Compile to JavaScript

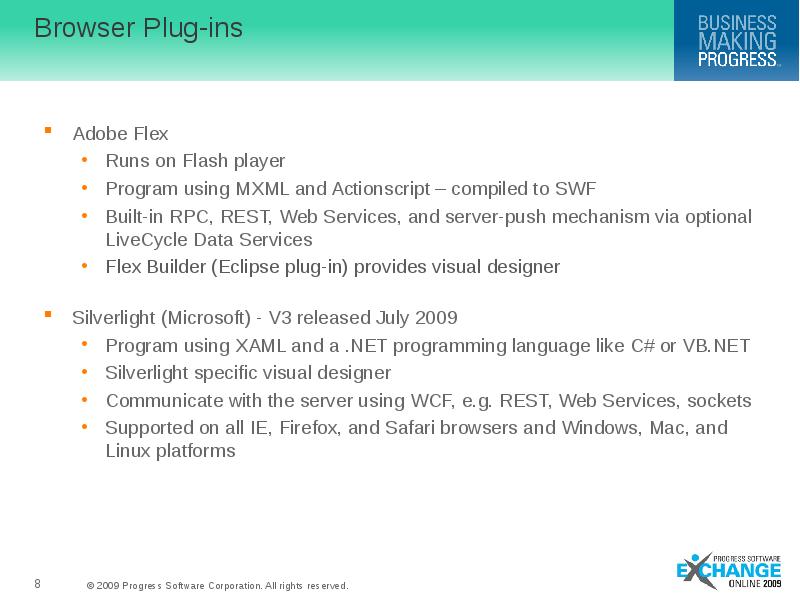

Browser Plug-ins Adobe Flex Runs on Flash player Program using MXML and Actionscript – compiled to SWF Built-in RPC, REST, Web Services, and server-push mechanism via optional LiveCycle Data Services Flex Builder (Eclipse plug-in) provides visual designer Silverlight (Microsoft) - V3 released July 2009 Program using XAML and a .NET programming language like C# or VB.NET Silverlight specific visual designer Communicate with the server using WCF, e.g. REST, Web Services, sockets Supported on all IE, Firefox, and Safari browsers and Windows, Mac, and Linux platforms

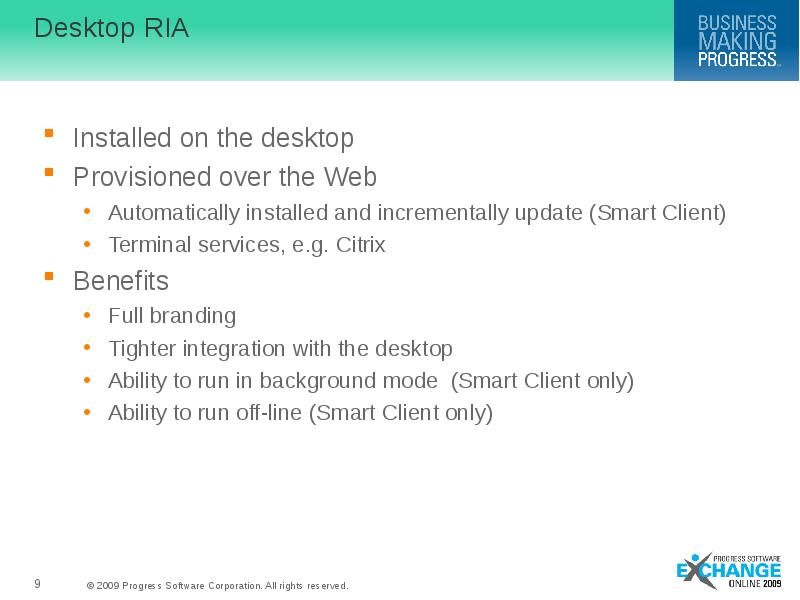

Desktop RIA Installed on the desktop Provisioned over the Web Automatically installed and incrementally update (Smart Client) Terminal services, e.g. Citrix Benefits Full branding Tighter integration with the desktop Ability to run in background mode (Smart Client only) Ability to run off-line (Smart Client only)

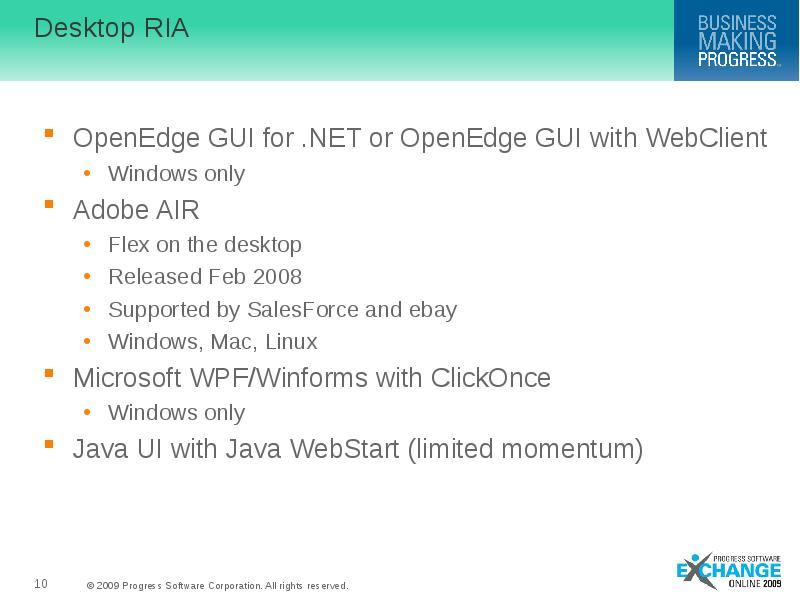

Desktop RIA OpenEdge GUI for .NET or OpenEdge GUI with WebClient Windows only Adobe AIR Flex on the desktop Released Feb 2008 Supported by SalesForce and ebay Windows, Mac, Linux Microsoft WPF/Winforms with ClickOnce Windows only Java UI with Java WebStart (limited momentum)

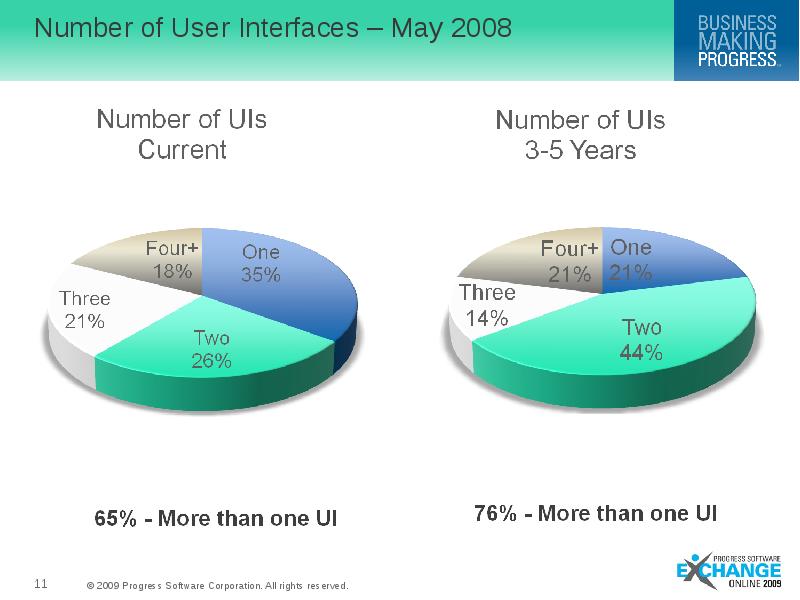

Number of User Interfaces – May 2008

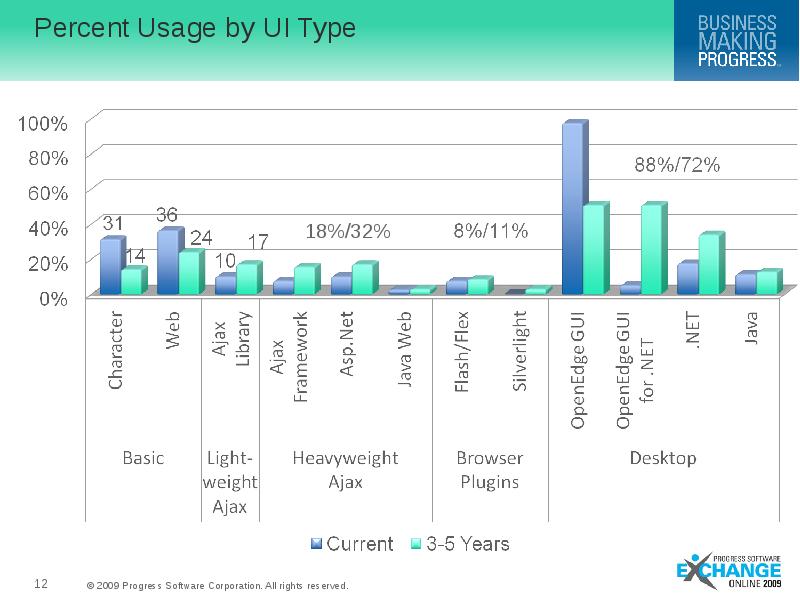

Percent Usage by UI Type

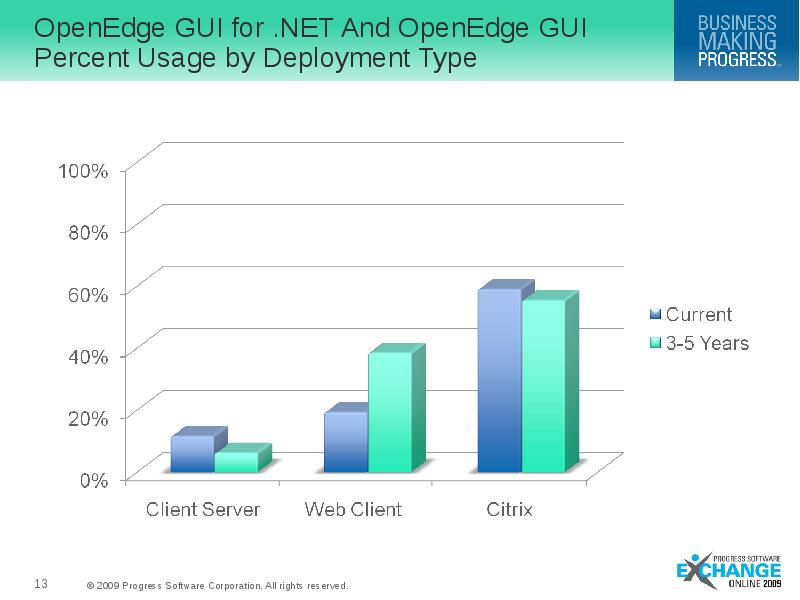

OpenEdge GUI for .NET And OpenEdge GUI Percent Usage by Deployment Type

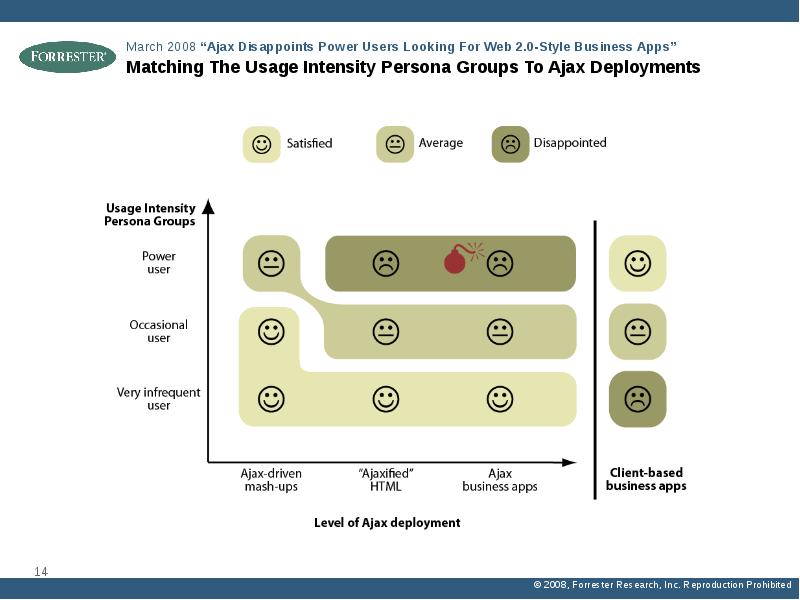

Matching The Usage Intensity Persona Groups To Ajax Deployments

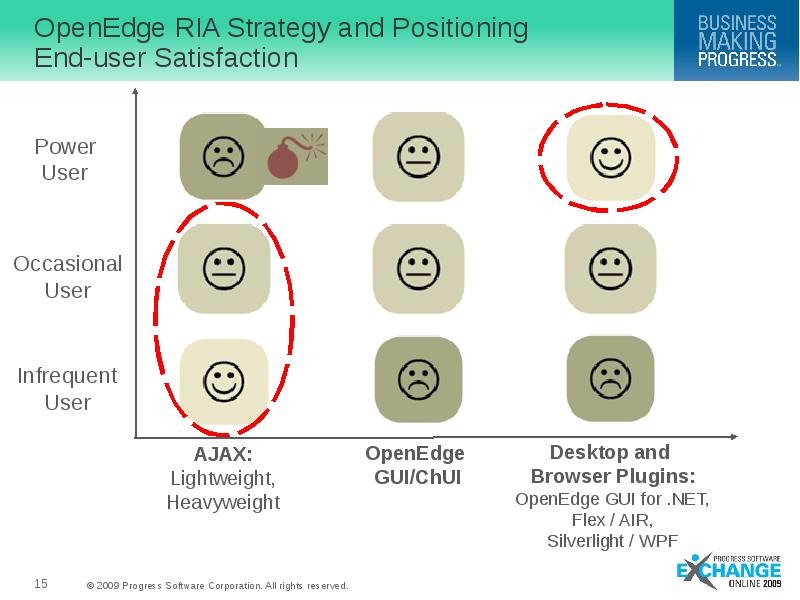

OpenEdge RIA Strategy and Positioning End-user Satisfaction

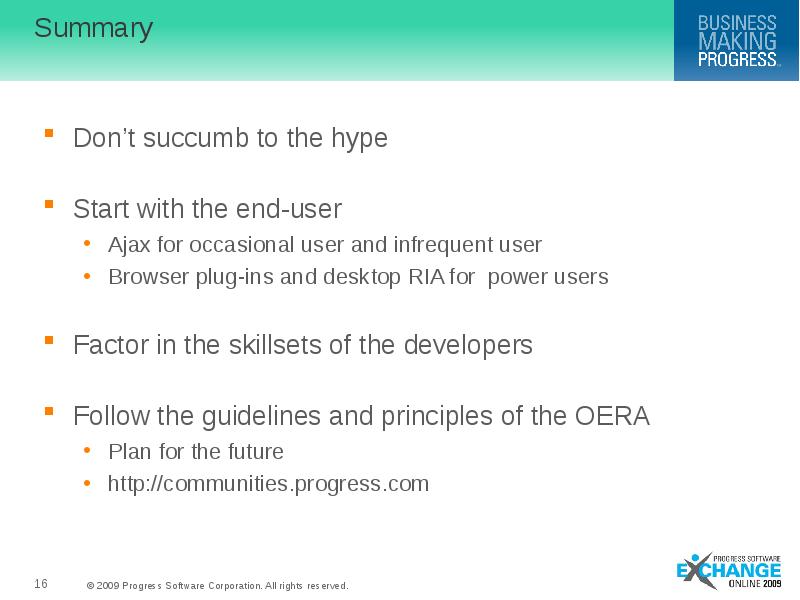

Summary Don’t succumb to the hype Start with the end-user Ajax for occasional user and infrequent user Browser plug-ins and desktop RIA for power users Factor in the skillsets of the developers Follow the guidelines and principles of the OERA Plan for the future http://communities.progress.com

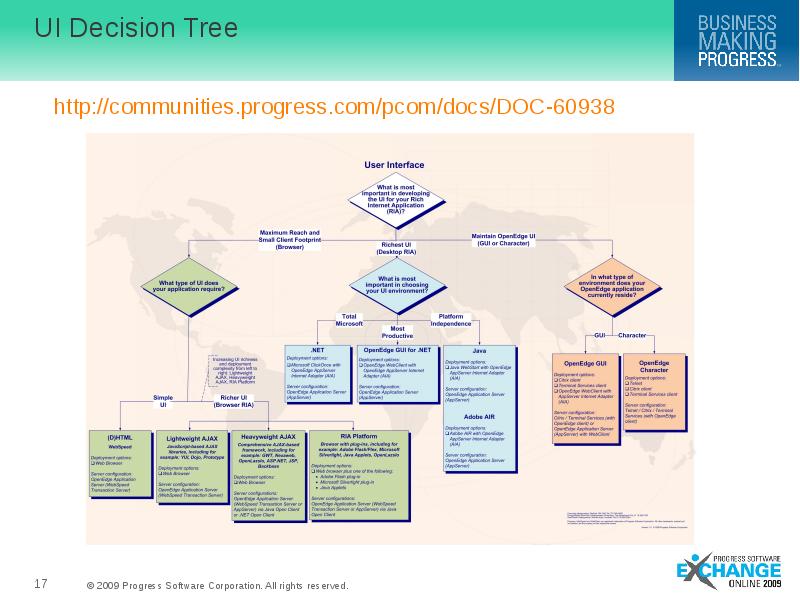

UI Decision Tree
