Hadoop Just the Basics for Big Data Rookies
 Adam Shook
 ashook@gopivotal.comAgenda
 Hadoop Overview
 HDFS Architecture
 Hadoop MapReduce
 Hadoop Ecosystem
 MapReduce Primer
Hadoop OverviewHadoop Core
 Open-source Apache project out of Yahoo! in 2006
 DistributedWhy?
 Bottom line:
 Flexible
 Scalable
 InexpensiveOverview
 Great at
 Reliable storage for multi-petabyte data sets
 Batch queriesData Structure
 Bytes!
 No more ETL necessary
 Store data now, processVersioning
 Version 0.20.x, 0.21.x, 0.22.x, 1.x.x
 Two main MR packages:
 org.apache.hadoop.mapredHDFS ArchitectureHDFS Overview
 Hierarchical UNIX-like file system for data storage
 sort of
NameNode
 Single master service for HDFS
 Single point of failure (HDFSCheckpoint Node (Secondary NN)
 Performs checkpoints of the NameNode’s namespace andDataNode
 Stores blocks on local disk
 Sends frequent heartbeats to NameNode
How HDFS Works - WritesHow HDFS Works - WritesHow HDFS Works - ReadsHow HDFS Works - FailureBlock Replication
 Default of three replicas
 Rack-aware system
 One block onHDFS 2.0 Features
 NameNode High-Availability (HA)
 Two redundant NameNodes in active/passiveHadoop MapReduceHadoop MapReduce 1.x
 Moves the code to the data
 JobTracker
 MasterJobTracker
 Monitors job and task progress
 Issues task attempts to TaskTrackers
TaskTrackers
 Runs on same node as DataNode service
 Sends heartbeats andExploiting Data Locality
 JobTracker will schedule task on a TaskTracker thatHow MapReduce WorksHow MapReduce Works - FailureYARN
 Abstract framework for distributed application development
 Split functionality of JobTrackerMapReduce 2.x on YARN
 MapReduce API has not changed
 Rebuild requiredHadoop EcosystemHadoop Ecosystem
 Core Technologies
 Hadoop Distributed File System
 Hadoop MapReduce
 ManyMoving Data
 Sqoop
 Moving data between RDBMS and HDFS
 Say, migratingFlume ArchitectureHigher Level APIs
 Pig
 Data-flow language – aptly named PigLatin --Pig Word Count

 A = LOAD '$input';
 B = FOREACHKey/Value Stores
 HBase
 Accumulo
 Implementations of Google’s Big Table for HDFS
HBase ArchitectureData Structure
 Avro
 Data serialization system designed for the Hadoop ecosystem
Scalable Machine Learning
 Mahout
 Library for scalable machine learning written inWorkflow Management
 Oozie
 Scheduling system for Hadoop Jobs
 Support for:
 JavaReal-time Stream Processing
 Storm
 Open-source project which runs a streaming ofDistributed Application Coordination
 ZooKeeper
 An effort to develop and maintain anZooKeeper ArchitectureHadoop Streaming
 Write MapReduce mappers and reducers using stdin and stdout
SQL on Hadoop
 Apache Drill
 Cloudera Impala
 Hive Stinger
 Pivotal HAWQ
HAWQ ArchitectureThat’s a lot of projects
 I am likely missing several (Sorry,Sample ArchitectureMapReduce PrimerMapReduce Paradigm
 Data processing system with two key phases
 Map
 PerformHadoop MapReduce Components
 Map Phase
 Input Format
 Record Reader
 Mapper
 Combiner
Writable Interfaces
 public interface Writable {
  void write(DataOutput out);
 InputFormat
 public abstract class InputFormat<K, V> {
  public abstract List<InputSplit>RecordReader
 public abstract class RecordReader<KEYIN, VALUEIN> implements Closeable {
  publicMapper
 public class Mapper<KEYIN, VALUEIN, KEYOUT, VALUEOUT> {
  protected voidPartitioner
 public abstract class Partitioner<KEY, VALUE> {
  public abstract intReducer
 public class Reducer<KEYIN, VALUEIN, KEYOUT, VALUEOUT> {
  protected voidOutputFormat
 public abstract class OutputFormat<K, V> {

  publicRecordWriter
 public abstract class RecordWriter<K, V> {
  public abstract voidWord Count ExampleProblem
 Count the number of times each word is used inMapper Code
 public class WordMapper extends Mapper<LongWritable, Text, Text, IntWritable>{ Shuffle and SortReducer Code
 public class IntSumReducer
 	extends Reducer<Text, LongWritable, Text, IntWritable> {
So what’s so hard about it?So what’s so hard about it?
 MapReduce is a limitation
 EntirelySo what does this mean for you?
 Hadoop is written primarilyResources, Wrap-up, etc.
 http://hadoop.apache.org
 Very supportive community
 Strata + Hadoop WorldGetting Started
 Pivotal HD Single-Node VM and Community Edition
 http://gopivotal.com/pivotal-products/data/pivotal-hd
 ForAcknowledgements
 Apache Hadoop, the Hadoop elephant logo, HDFS, Accumulo, Avro, Drill,Learn More. Stay Connected.
 Talk to us on Twitter: @springcentral
 Find



Слайды и текст этой презентации
Слайд 1
Описание слайда:
Hadoop Just the Basics for Big Data Rookies Adam Shook ashook@gopivotal.com


Слайд 2
Описание слайда:
Agenda Hadoop Overview HDFS Architecture Hadoop MapReduce Hadoop Ecosystem MapReduce Primer Buckle up!

Слайд 3
Описание слайда:
Hadoop Overview

Слайд 4
Описание слайда:
Hadoop Core Open-source Apache project out of Yahoo! in 2006 Distributed fault-tolerant data storage and batch processing Provides linear scalability on commodity hardware Adopted by many: Amazon, AOL, eBay, Facebook, Foursquare, Google, IBM, Netflix, Twitter, Yahoo!, and many, many more

Слайд 5
Описание слайда:
Why? Bottom line: Flexible Scalable Inexpensive

Слайд 6
Описание слайда:

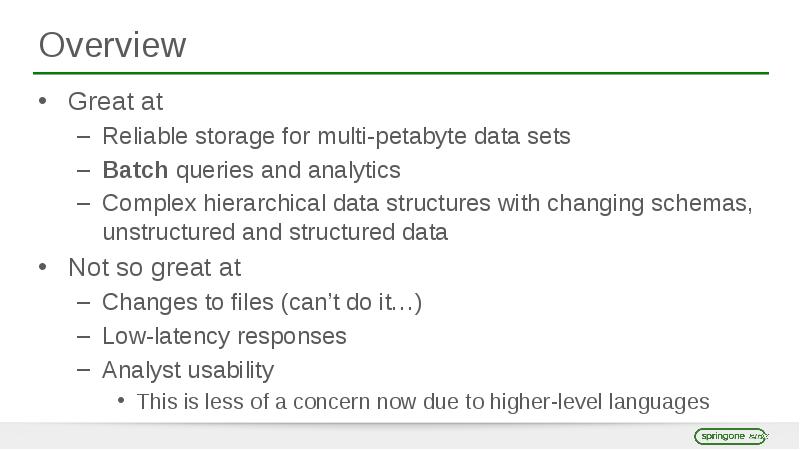

Overview Great at Reliable storage for multi-petabyte data sets Batch queries and analytics Complex hierarchical data structures with changing schemas, unstructured and structured data Not so great at Changes to files (can’t do it…) Low-latency responses Analyst usability This is less of a concern now due to higher-level languages

Слайд 7
Описание слайда:
Data Structure Bytes! No more ETL necessary Store data now, process later Structure on read Built-in support for common data types and formats Extendable Flexible

Слайд 8
Описание слайда:
Versioning Version 0.20.x, 0.21.x, 0.22.x, 1.x.x Two main MR packages: org.apache.hadoop.mapred (deprecated) org.apache.hadoop.mapreduce (new hotness) Version 2.x.x, alpha’d in May 2012 NameNode HA YARN – Next Gen MapReduce

Слайд 9
Описание слайда:
HDFS Architecture

Слайд 10
Описание слайда:
HDFS Overview Hierarchical UNIX-like file system for data storage sort of Splitting of large files into blocks Distribution and replication of blocks to nodes Two key services Master NameNode Many DataNodes Checkpoint Node (Secondary NameNode)

Слайд 11
Описание слайда:
NameNode Single master service for HDFS Single point of failure (HDFS 1.x) Stores file to block to location mappings in the namespace All transactions are logged to disk NameNode startup reads namespace image and logs

Слайд 12
Описание слайда:
Checkpoint Node (Secondary NN) Performs checkpoints of the NameNode’s namespace and logs Not a hot backup! Loads up namespace Reads log transactions to modify namespace Saves namespace as a checkpoint

Слайд 13
Описание слайда:
DataNode Stores blocks on local disk Sends frequent heartbeats to NameNode Sends block reports to NameNode Clients connect to DataNode for I/O

Слайд 14
Описание слайда:
How HDFS Works - Writes

Слайд 15
Описание слайда:
How HDFS Works - Writes

Слайд 16
Описание слайда:
How HDFS Works - Reads

Слайд 17
Описание слайда:
How HDFS Works - Failure

Слайд 18
Описание слайда:
Block Replication Default of three replicas Rack-aware system One block on same rack One block on same rack, different host One block on another rack Automatic re-copy by NameNode, as needed

Слайд 19
Описание слайда:
HDFS 2.0 Features NameNode High-Availability (HA) Two redundant NameNodes in active/passive configuration Manual or automated failover NameNode Federation Multiple independent NameNodes using the same collection of DataNodes

Слайд 20
Описание слайда:
Hadoop MapReduce

Слайд 21
Описание слайда:
Hadoop MapReduce 1.x Moves the code to the data JobTracker Master service to monitor jobs TaskTracker Multiple services to run tasks Same physical machine as a DataNode A job contains many tasks A task contains one or more task attempts

Слайд 22
Описание слайда:
JobTracker Monitors job and task progress Issues task attempts to TaskTrackers Re-tries failed task attempts Four failed attempts = one failed job Schedules jobs in FIFO order Fair Scheduler Single point of failure for MapReduce

Слайд 23
Описание слайда:
TaskTrackers Runs on same node as DataNode service Sends heartbeats and task reports to JobTracker Configurable number of map and reduce slots Runs map and reduce task attempts Separate JVM!

Слайд 24
Описание слайда:
Exploiting Data Locality JobTracker will schedule task on a TaskTracker that is local to the block 3 options! If TaskTracker is busy, selects TaskTracker on same rack Many options! If still busy, chooses an available TaskTracker at random Rare!

Слайд 25
Описание слайда:
How MapReduce Works

Слайд 26
Описание слайда:
How MapReduce Works - Failure

Слайд 27
Описание слайда:
YARN Abstract framework for distributed application development Split functionality of JobTracker into two components ResourceManager ApplicationMaster TaskTracker becomes NodeManager Containers instead of map and reduce slots Configurable amount of memory per NodeManager

Слайд 28
Описание слайда:
MapReduce 2.x on YARN MapReduce API has not changed Rebuild required to upgrade from 1.x to 2.x Application Master launches and monitors job via YARN MapReduce History Server to store… history

Слайд 29
Описание слайда:
Hadoop Ecosystem

Слайд 30
Описание слайда:
Hadoop Ecosystem Core Technologies Hadoop Distributed File System Hadoop MapReduce Many other tools… Which I will be describing… now

Слайд 31
Описание слайда:
Moving Data Sqoop Moving data between RDBMS and HDFS Say, migrating MySQL tables to HDFS Flume Streams event data from sources to sinks Say, weblogs from multiple servers into HDFS

Слайд 32
Описание слайда:
Flume Architecture

Слайд 33
Описание слайда:
Higher Level APIs Pig Data-flow language – aptly named PigLatin -- to generate one or more MapReduce jobs against data stored locally or in HDFS Hive Data warehousing solution, allowing users to write SQL-like queries to generate a series of MapReduce jobs against data stored in HDFS

Слайд 34
Описание слайда:
Pig Word Count A = LOAD '$input'; B = FOREACH A GENERATE FLATTEN(TOKENIZE($0)) AS word; C = GROUP B BY word; D = FOREACH C GENERATE group AS word, COUNT(B); STORE D INTO '$output';

Слайд 35
Описание слайда:
Key/Value Stores HBase Accumulo Implementations of Google’s Big Table for HDFS Provides random, real-time access to big data Supports updates and deletes of key/value pairs

Слайд 36
Описание слайда:
HBase Architecture

Слайд 37
Описание слайда:
Data Structure Avro Data serialization system designed for the Hadoop ecosystem Expressed as JSON Parquet Compressed, efficient columnar storage for Hadoop and other systems

Слайд 38
Описание слайда:
Scalable Machine Learning Mahout Library for scalable machine learning written in Java Very robust examples! Classification, Clustering, Pattern Mining, Collaborative Filtering, and much more

Слайд 39
Описание слайда:
Workflow Management Oozie Scheduling system for Hadoop Jobs Support for: Java MapReduce Streaming MapReduce Pig, Hive, Sqoop, Distcp Any ol’ Java or shell script program

Слайд 40
Описание слайда:

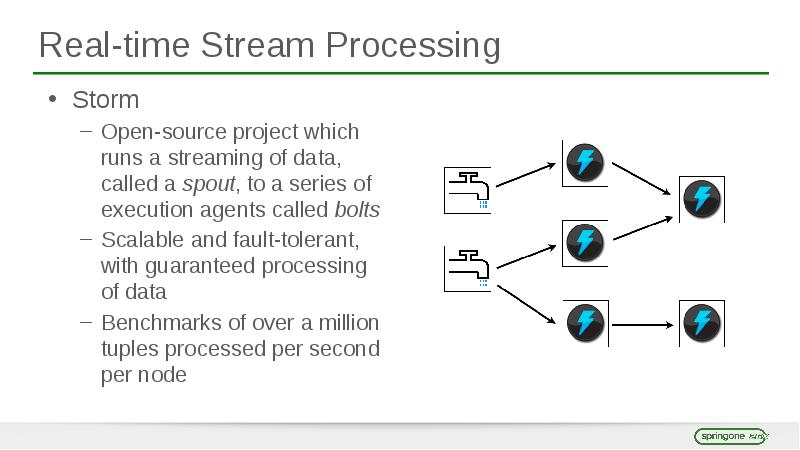

Real-time Stream Processing Storm Open-source project which runs a streaming of data, called a spout, to a series of execution agents called bolts Scalable and fault-tolerant, with guaranteed processing of data Benchmarks of over a million tuples processed per second per node

Слайд 41
Описание слайда:

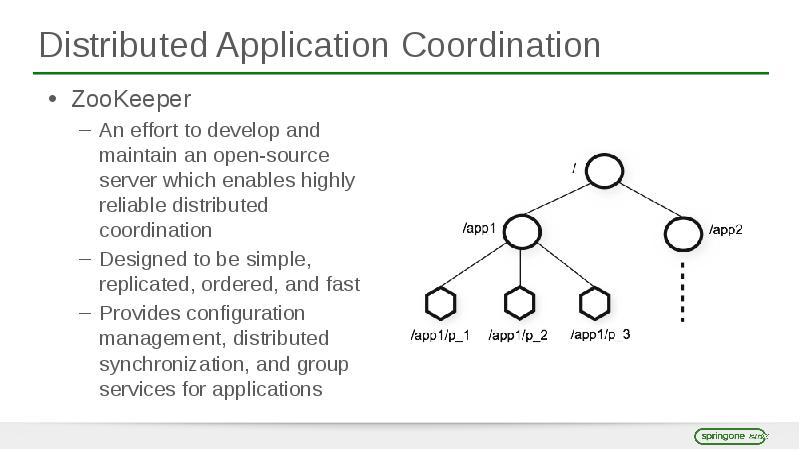

Distributed Application Coordination ZooKeeper An effort to develop and maintain an open-source server which enables highly reliable distributed coordination Designed to be simple, replicated, ordered, and fast Provides configuration management, distributed synchronization, and group services for applications

Слайд 42
Описание слайда:
ZooKeeper Architecture

Слайд 43
Описание слайда:
Hadoop Streaming Write MapReduce mappers and reducers using stdin and stdout Execute on command line using Hadoop Streaming JAR // TODO verify hadoop jar hadoop-streaming.jar -input input -output outputdir -mapper org.apache.hadoop.mapreduce.Mapper -reduce /bin/wc

Слайд 44
Описание слайда:
SQL on Hadoop Apache Drill Cloudera Impala Hive Stinger Pivotal HAWQ MPP execution of SQL queries against HDFS data

Слайд 45
Описание слайда:
HAWQ Architecture

Слайд 46
Описание слайда:
That’s a lot of projects I am likely missing several (Sorry, guys!) Each cropped up to solve a limitation of Hadoop Core Know your ecosystem Pick the right tool for the right job

Слайд 47
Описание слайда:
Sample Architecture

Слайд 48
Описание слайда:
MapReduce Primer

Слайд 49
Описание слайда:
MapReduce Paradigm Data processing system with two key phases Map Perform a map function on input key/value pairs to generate intermediate key/value pairs Reduce Perform a reduce function on intermediate key/value groups to generate output key/value pairs Groups created by sorting map output

Слайд 50
Описание слайда:

Слайд 51
Описание слайда:
Hadoop MapReduce Components Map Phase Input Format Record Reader Mapper Combiner Partitioner

Слайд 52
Описание слайда:
Writable Interfaces public interface Writable { void write(DataOutput out); void readFields(DataInput in); } public interface WritableComparable<T> extends Writable, Comparable<T> { }

Слайд 53
Описание слайда:

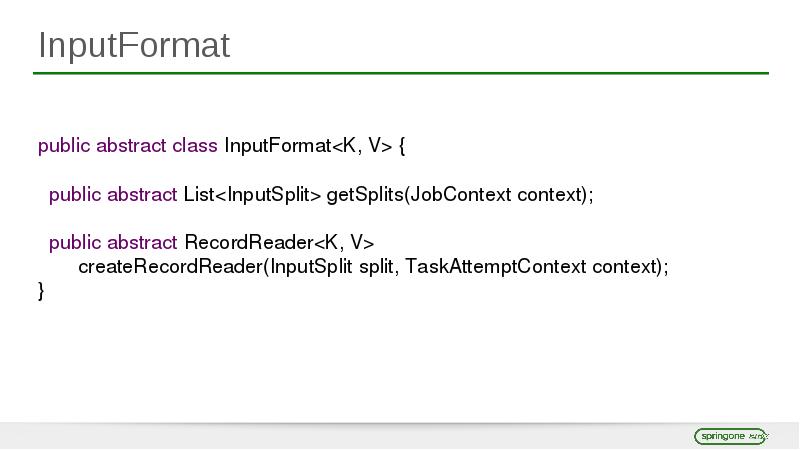

InputFormat public abstract class InputFormat<K, V> { public abstract List<InputSplit> getSplits(JobContext context); public abstract RecordReader<K, V> createRecordReader(InputSplit split, TaskAttemptContext context); }

Слайд 54
Описание слайда:
RecordReader public abstract class RecordReader<KEYIN, VALUEIN> implements Closeable { public abstract void initialize(InputSplit split, TaskAttemptContext context); public abstract boolean nextKeyValue(); public abstract KEYIN getCurrentKey(); public abstract VALUEIN getCurrentValue(); public abstract float getProgress(); public abstract void close(); }

Слайд 55
Описание слайда:

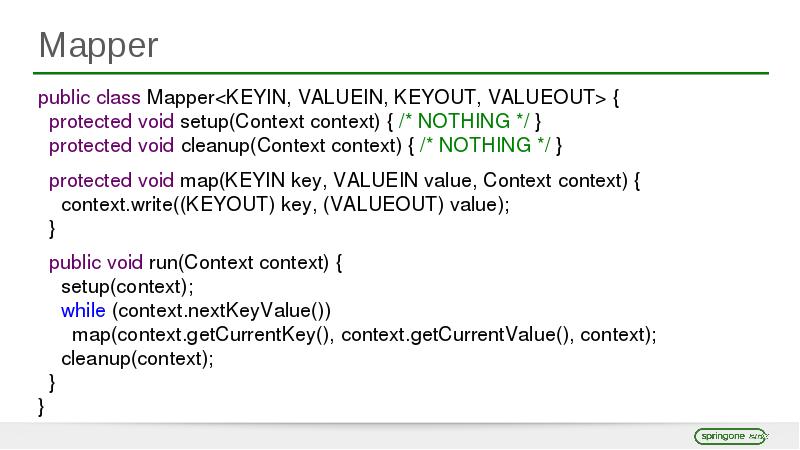

Mapper public class Mapper<KEYIN, VALUEIN, KEYOUT, VALUEOUT> { protected void setup(Context context) { /* NOTHING */ } protected void cleanup(Context context) { /* NOTHING */ } protected void map(KEYIN key, VALUEIN value, Context context) { context.write((KEYOUT) key, (VALUEOUT) value); } public void run(Context context) { setup(context); while (context.nextKeyValue()) map(context.getCurrentKey(), context.getCurrentValue(), context); cleanup(context); } }

Слайд 56
Описание слайда:
Partitioner public abstract class Partitioner<KEY, VALUE> { public abstract int getPartition(KEY key, VALUE value, int numPartitions); } Default HashPartitioner uses key’s hashCode() % numPartitions

Слайд 57
Описание слайда:
Reducer public class Reducer<KEYIN, VALUEIN, KEYOUT, VALUEOUT> { protected void setup(Context context) { /* NOTHING */ } protected void cleanup(Context context) { /* NOTHING */ } protected void reduce(KEYIN key, Iterable<VALUEIN> value, Context context) { for (VALUEIN value : values) context.write((KEYOUT) key, (VALUEOUT) value); } public void run(Context context) { setup(context); while (context.nextKey()) reduce(context.getCurrentKey(), context.getValues(), context); cleanup(context); } }

Слайд 58
Описание слайда:
OutputFormat public abstract class OutputFormat<K, V> { public abstract RecordWriter<K, V> getRecordWriter(TaskAttemptContext context); public abstract void checkOutputSpecs(JobContext context); public abstract OutputCommitter getOutputCommitter(TaskAttemptContext context); }

Слайд 59
Описание слайда:
RecordWriter public abstract class RecordWriter<K, V> { public abstract void write(K key, V value); public abstract void close(TaskAttemptContext context); }

Слайд 60
Описание слайда:
Word Count Example

Слайд 61
Описание слайда:
Problem Count the number of times each word is used in a body of text Uses TextInputFormat and TextOutputFormat

Слайд 62
Описание слайда:
Mapper Code public class WordMapper extends Mapper<LongWritable, Text, Text, IntWritable>{ private final static IntWritable ONE = new IntWritable(1); private Text word = new Text(); public void map(LongWritable key, Text value, Context context) { String line = value.toString(); StringTokenizer tokenizer = new StringTokenizer(line); while (tokenizer.hasMoreTokens()) { word.set(tokenizer.nextToken()); context.write(word, ONE); } } }

Слайд 63
Описание слайда:
Shuffle and Sort

Слайд 64
Описание слайда:
Reducer Code public class IntSumReducer extends Reducer<Text, LongWritable, Text, IntWritable> { private IntWritable outvalue = new IntWritable(); private int sum = 0; public void reduce(Text key, Iterable<IntWritable> values, Context context) { sum = 0; for (IntWritable val : values) { sum += val.get(); } outvalue.set(sum); context.write(key, outvalue); } }

Слайд 65
Описание слайда:
So what’s so hard about it?

Слайд 66
Описание слайда:

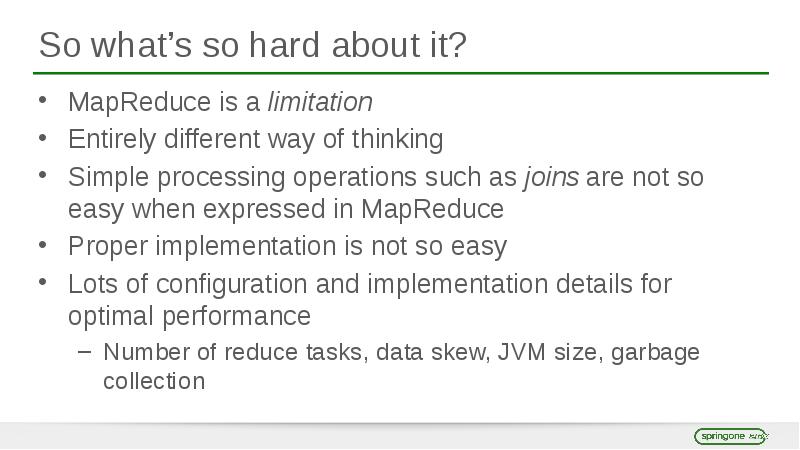

So what’s so hard about it? MapReduce is a limitation Entirely different way of thinking Simple processing operations such as joins are not so easy when expressed in MapReduce Proper implementation is not so easy Lots of configuration and implementation details for optimal performance Number of reduce tasks, data skew, JVM size, garbage collection

Слайд 67
Описание слайда:
So what does this mean for you? Hadoop is written primarily in Java Components are extendable and configurable Custom I/O through Input and Output Formats Parse custom data formats Read and write using external systems Higher-level tools enable rapid development of big data analysis

Слайд 68
Описание слайда:
Resources, Wrap-up, etc. http://hadoop.apache.org Very supportive community Strata + Hadoop World Oct. 28th – 30th in Manhattan Plenty of resources available to learn more Blogs Email lists Books Shameless Plug -- MapReduce Design Patterns

Слайд 69
Описание слайда:
Getting Started Pivotal HD Single-Node VM and Community Edition http://gopivotal.com/pivotal-products/data/pivotal-hd For the brave and bold -- Roll-your-own! http://hadoop.apache.org/docs/current

Слайд 70
Описание слайда:
Acknowledgements Apache Hadoop, the Hadoop elephant logo, HDFS, Accumulo, Avro, Drill, Flume, HBase, Hive, Mahout, Oozie, Pig, Sqoop, YARN, and ZooKeeper are trademarks of the Apache Software Foundation Cloudera Impala is a trademark of Cloudera Parquet is copyright Twitter, Cloudera, and other contributors Storm is licensed under the Eclipse Public License

Слайд 71
Описание слайда:
Learn More. Stay Connected. Talk to us on Twitter: @springcentral Find Session replays on YouTube: spring.io/video
