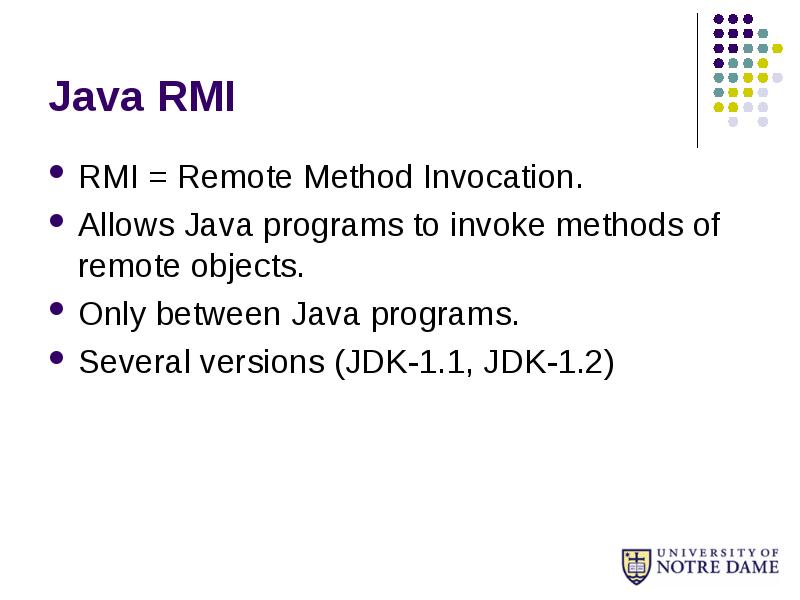

Java RMI RMI = Remote Method Invocation. Allows Java programs to invoke methods of remote objects. Only between Java programs. Several versions (JDK-1.1, JDK-1.2)

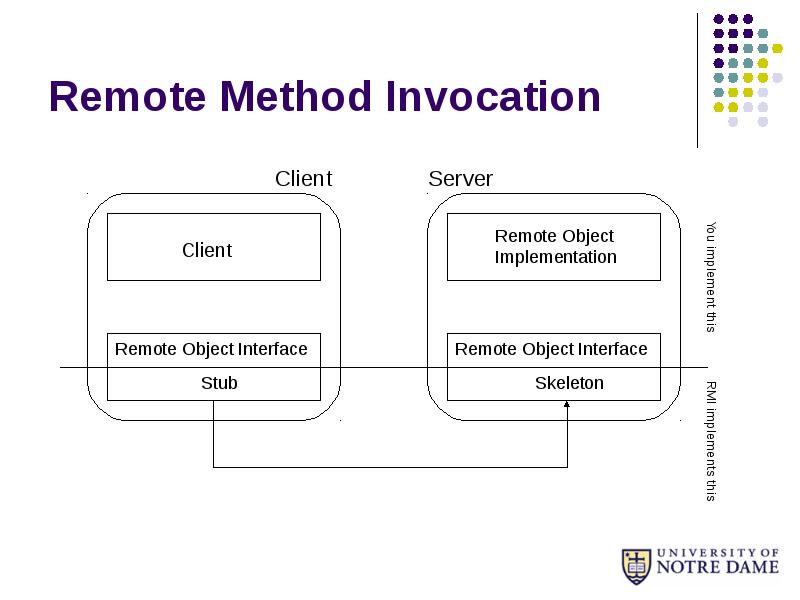

Remote Method Invocation

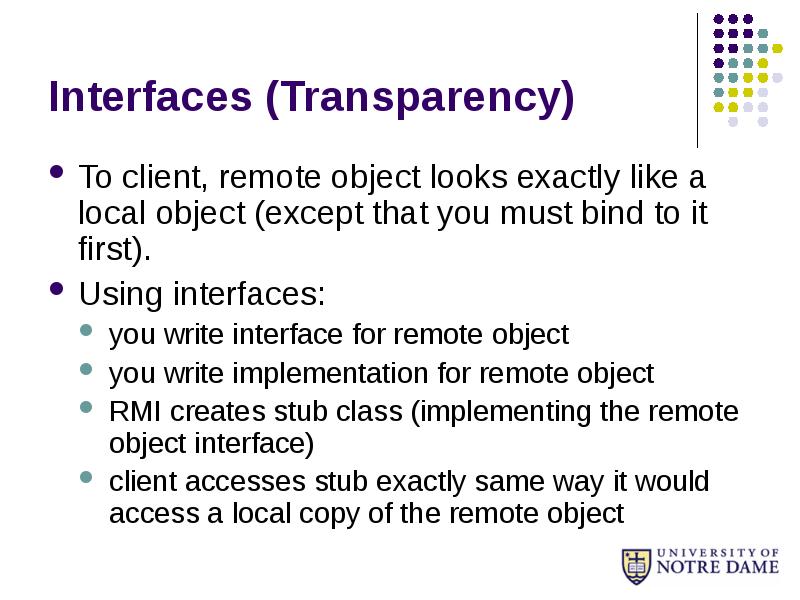

Interfaces (Transparency) To client, remote object looks exactly like a local object (except that you must bind to it first). Using interfaces: you write interface for remote object you write implementation for remote object RMI creates stub class (implementing the remote object interface) client accesses stub exactly same way it would access a local copy of the remote object

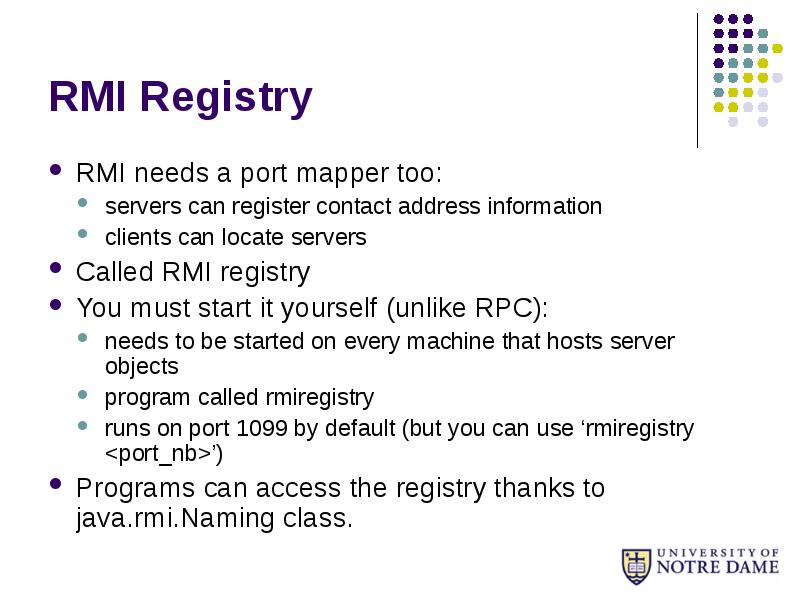

RMI Registry RMI needs a port mapper too: servers can register contact address information clients can locate servers Called RMI registry You must start it yourself (unlike RPC): needs to be started on every machine that hosts server objects program called rmiregistry runs on port 1099 by default (but you can use ‘rmiregistry <port_nb>’) Programs can access the registry thanks to java.rmi.Naming class.

Example Simple program: write interface for remote object: Remote.java implementation of object: RemoteImpl.java server to run object: RemoteServer.java client to access object: Client.java RMI compiler ‘rmic’ generates: client stub: RemoteImpl_Stub.class (already compiled) server skeleton: RemoteImpl_Skel.class (already compiled)

Example Step 1: write interface Calculator.java import java.rmi.Remote; import java.rmi.RemoteException; public interface Calculator extends Remote { public long add(long a, long b) throws RemoteException; public long sub(long a, long b) throws RemoteException; public long mul(long a, long b) throws RemoteException; public long div(long a, long b) throws RemoteException; } Few rules: interface must extend java.rmi.Remote interface methods must throw java.rmi.RemoteException exception Compile: $ javac Calculator.java

Example Step 2: write remote object CalculatorImpl.java import java.rmi.server.UnicastRemoteObject; import java.rmi.RemoteException; public class CalculatorImpl extends UnicastRemoteObject implements Calculator { // Implementations must have an explicit constructor public CalculatorImpl() throws RemoteException { super(); } public long add(long a, long b) throws RemoteException { return a + b; } public long sub(long a, long b) throws RemoteException { return a - b; } public long mul(long a, long b) throws RemoteException { return a * b; } public long div(long a, long b) throws RemoteException { return a / b; } }

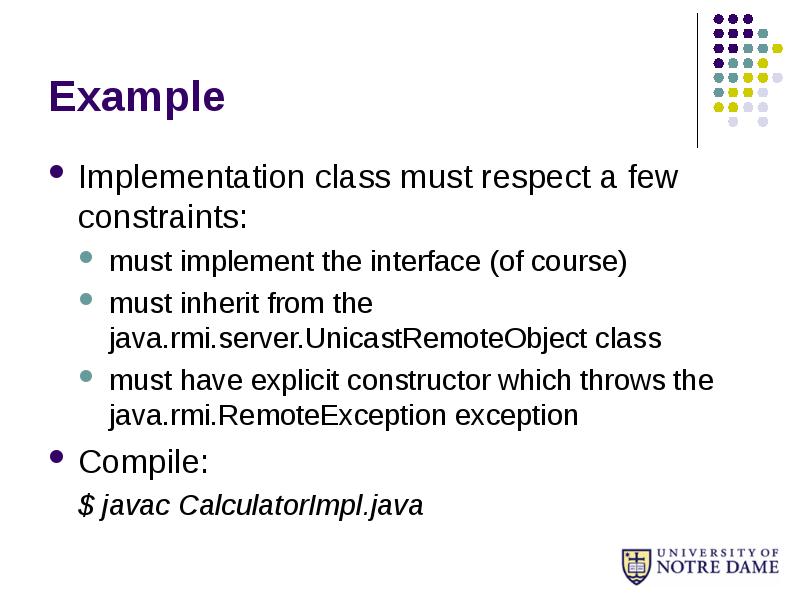

Example Implementation class must respect a few constraints: must implement the interface (of course) must inherit from the java.rmi.server.UnicastRemoteObject class must have explicit constructor which throws the java.rmi.RemoteException exception Compile: $ javac CalculatorImpl.java

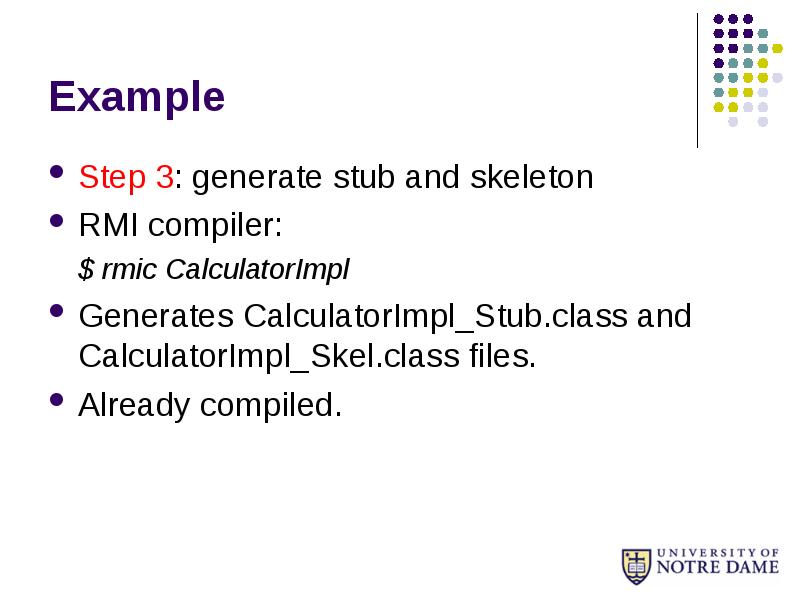

Example Step 3: generate stub and skeleton RMI compiler: $ rmic CalculatorImpl Generates CalculatorImpl_Stub.class and CalculatorImpl_Skel.class files. Already compiled.

Example Step 4: write server CalculatorServer.java import java.rmi.Naming; public class CalculatorServer { public CalculatorServer() { try { Calculator c = new CalculatorImpl(); Naming.rebind(“rmi://localhost:1099/CalculatorService”, c); } catch (Exception e) { System.out.println(“Trouble: “ + e); } } public static void main(String args[]) { new CalculatorServer(); } }

Example Server program creates CalculatorImpl object. Registers object to local RMI registry (‘rebind()’): rebind(String name, Remote obj) associates a name to an object names are in the form of a URL: rmi://<host_name>[:port]/<service_name> Server waits for incoming requests $ javac CalculatorServer.java

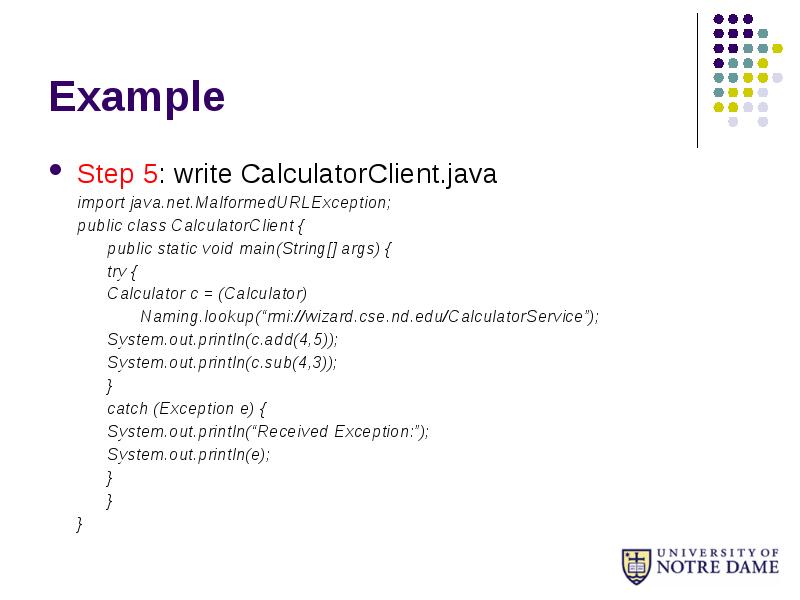

Example Step 5: write CalculatorClient.java import java.net.MalformedURLException; public class CalculatorClient { public static void main(String[] args) { try { Calculator c = (Calculator) Naming.lookup(“rmi://wizard.cse.nd.edu/CalculatorService”); System.out.println(c.add(4,5)); System.out.println(c.sub(4,3)); } catch (Exception e) { System.out.println(“Received Exception:”); System.out.println(e); } } }

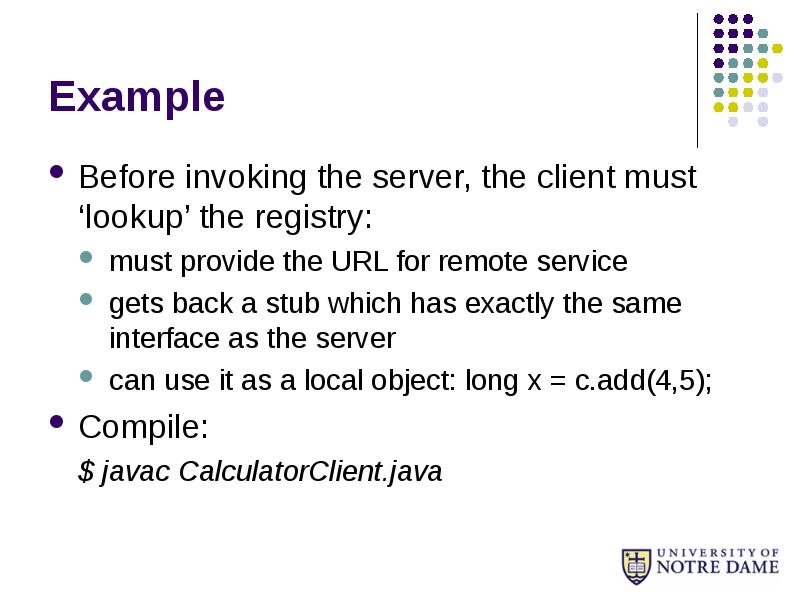

Example Before invoking the server, the client must ‘lookup’ the registry: must provide the URL for remote service gets back a stub which has exactly the same interface as the server can use it as a local object: long x = c.add(4,5); Compile: $ javac CalculatorClient.java

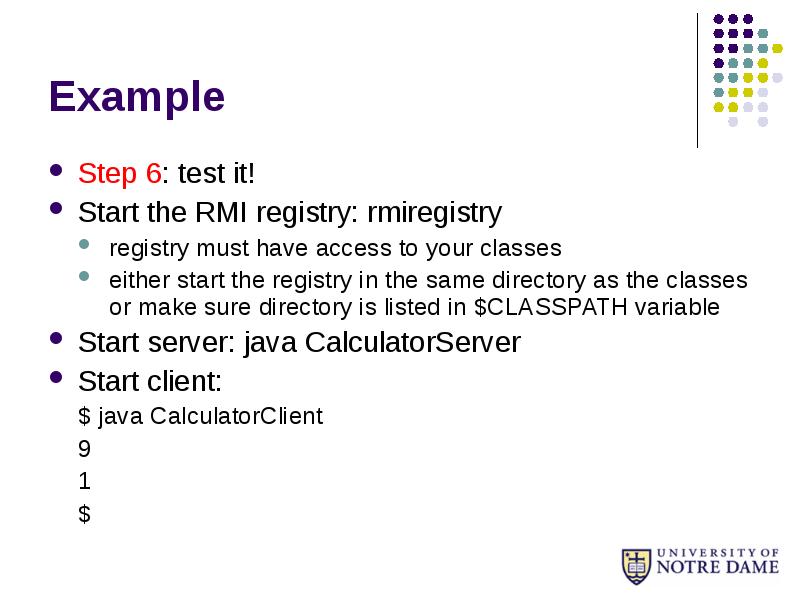

Example Step 6: test it! Start the RMI registry: rmiregistry registry must have access to your classes either start the registry in the same directory as the classes or make sure directory is listed in $CLASSPATH variable Start server: java CalculatorServer Start client: $ java CalculatorClient 9 1 $

Using RMI in a Distributed Context First, test your program on a single host. To use it on 2 machines: server and rmiregistry need the following files: Calculator.class (server object interface) CalculatorImpl.class (server object implementation) CalculatorImpl_Stub.class (stub) CalculatorServer.class (server program) client needs: Calculator.class (server object interface) CalculatorImpl_Stub.class (stub) CalculatorClient.class (client program) nobody needs the skeleton file CalculatorImpl_Skel.class generated only for compatibility with JDK-1.1

Method Parameters Transfer Base types (int, float, char) are transferred directly. Remote objects (inheriting from java.rmi.Remote) are not transferred: instead, a distributed reference to object is shipped any invocation to this object will result in a RMI request Non-remote objects are serialized and shipped: the object itself plus every other object that it refers to (recursively) remote invocations pass objects by value (local by reference) very easy to transfer huge quantities of data without noticing (you have database in memory and you transfer an object which contains a reference to database)
