Operating systems. Threads. (Section 4) презентация

Jerry Breecher Jerry Breecher

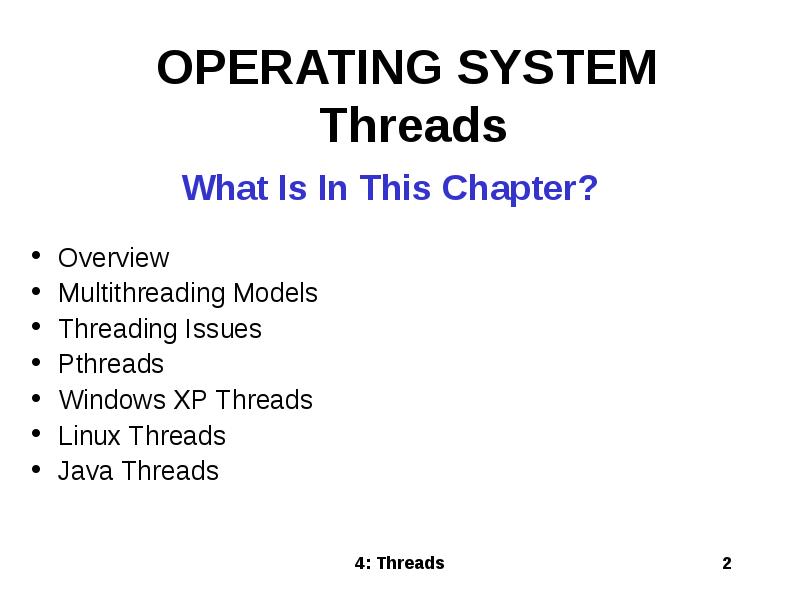

What Is In This Chapter? What Is In This Chapter? Overview Multithreading Models Threading Issues Pthreads Windows XP Threads Linux Threads Java Threads

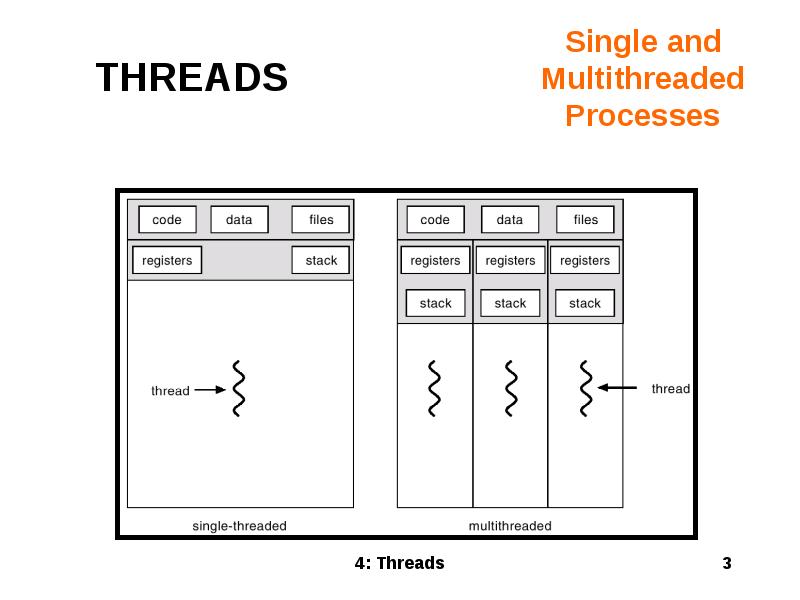

Single and Multithreaded Processes

Benefits Responsiveness Resource Sharing Economy Utilization of MP Architectures

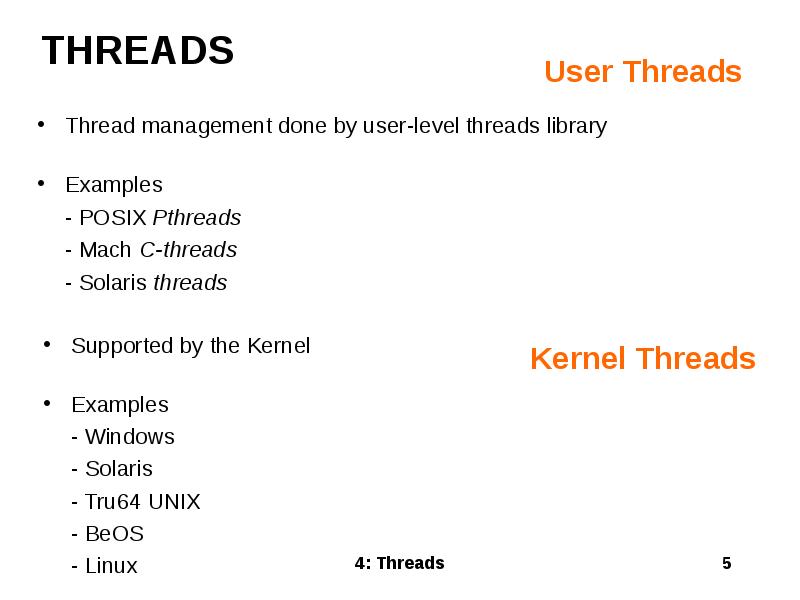

User Threads Thread management done by user-level threads library Examples - POSIX Pthreads - Mach C-threads - Solaris threads

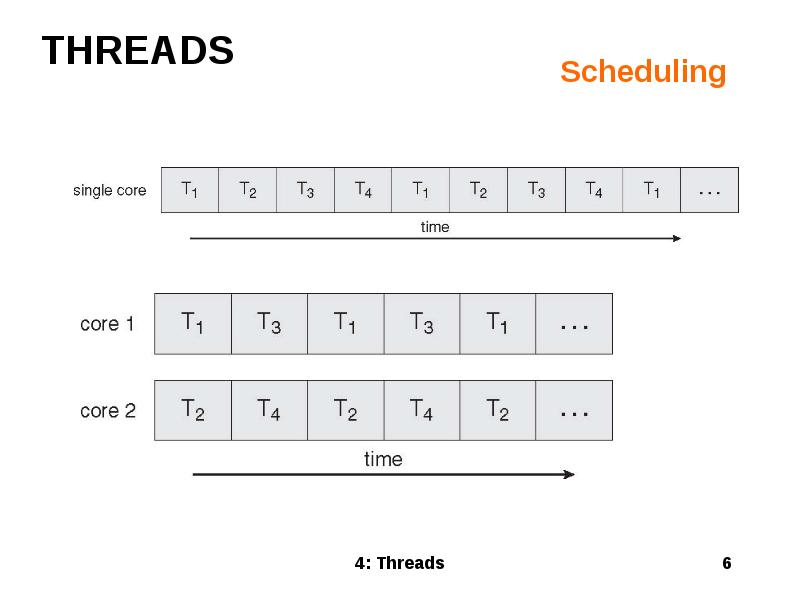

Scheduling

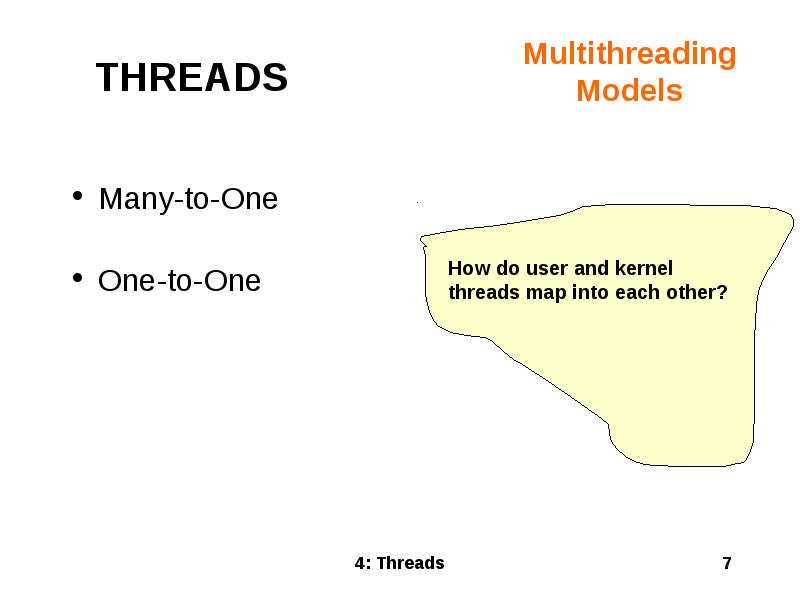

Multithreading Models Many-to-One One-to-One

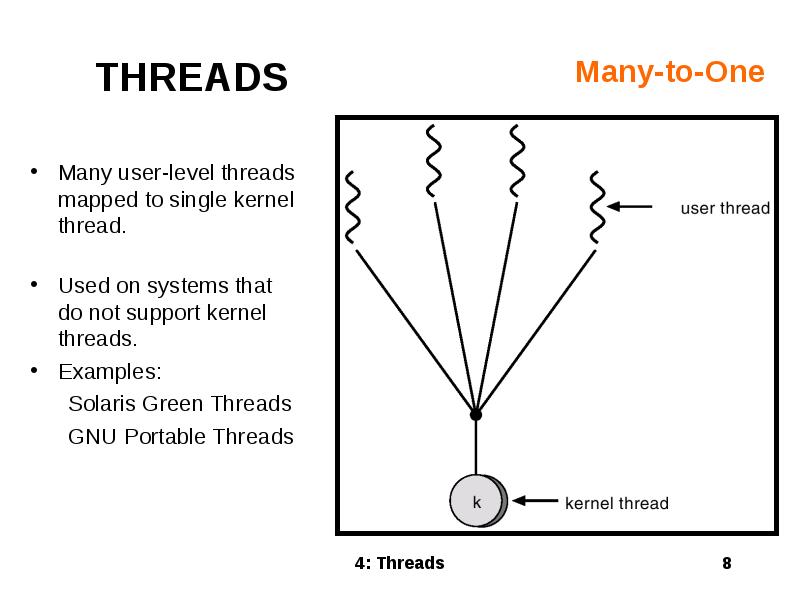

Many-to-One Many user-level threads mapped to single kernel thread. Used on systems that do not support kernel threads. Examples: Solaris Green Threads GNU Portable Threads

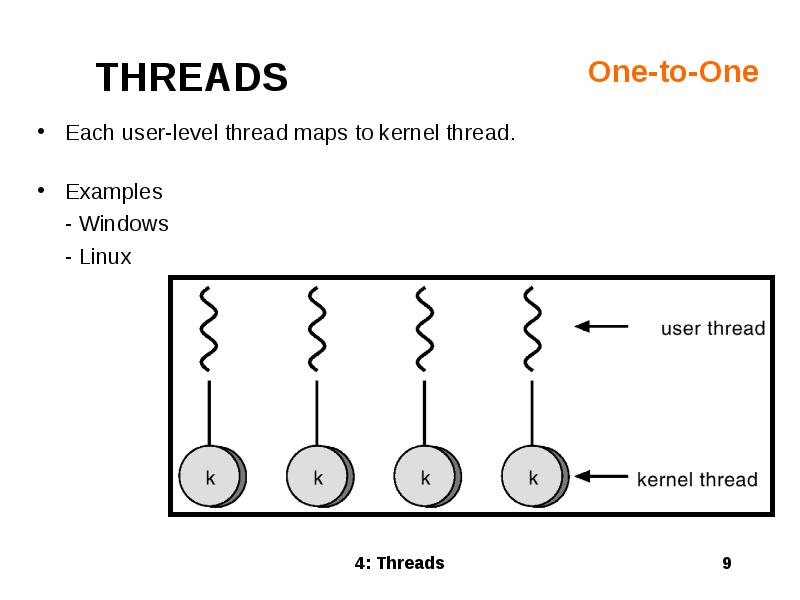

One-to-One Each user-level thread maps to kernel thread. Examples - Windows - Linux

Threading Issues Semantics of fork() and exec() system calls Does fork() duplicate only the calling thread or all threads? Thread cancellation Terminating a thread before it has finished Two general approaches: Asynchronous cancellation terminates the target thread immediately Deferred cancellation allows the target thread to periodically check if it should be cancelled

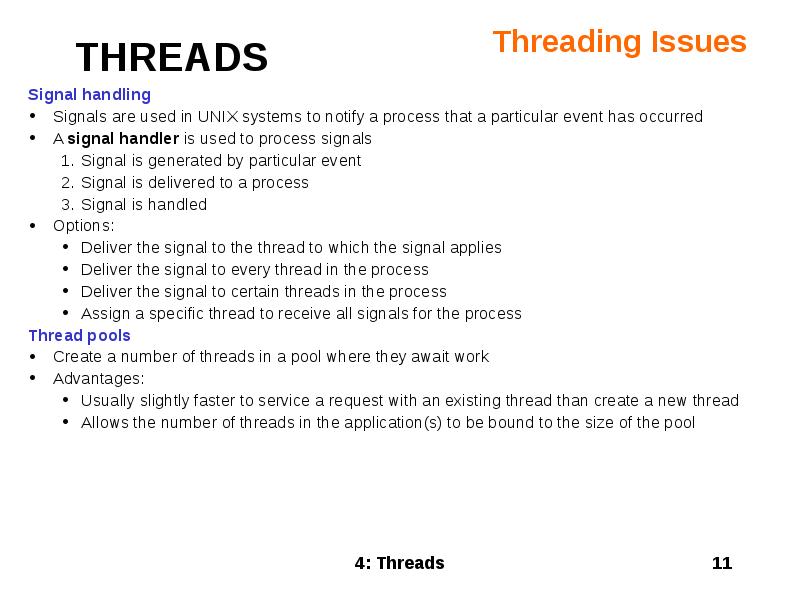

Threading Issues Signal handling Signals are used in UNIX systems to notify a process that a particular event has occurred A signal handler is used to process signals Signal is generated by particular event Signal is delivered to a process Signal is handled Options: Deliver the signal to the thread to which the signal applies Deliver the signal to every thread in the process Deliver the signal to certain threads in the process Assign a specific thread to receive all signals for the process Thread pools Create a number of threads in a pool where they await work Advantages: Usually slightly faster to service a request with an existing thread than create a new thread Allows the number of threads in the application(s) to be bound to the size of the pool

Threading Issues Thread specific data Allows each thread to have its own copy of data Useful when you do not have control over the thread creation process (i.e., when using a thread pool) Scheduler activations Many:Many models require communication to maintain the appropriate number of kernel threads allocated to the application Scheduler activations provide upcalls - a communication mechanism from the kernel to the thread library This communication allows an application to maintain the correct number kernel threads

Various Implementations PThreads A POSIX standard (IEEE 1003.1c) API for thread creation and synchronization API specifies behavior of the thread library, implementation is up to development of the library Common in UNIX operating systems (Solaris, Linux, Mac OS X) Windows Threads Implements the one-to-one mapping Each thread contains A thread id Register set Separate user and kernel stacks Private data storage area The register set, stacks, and private storage area are known as the context of the threads

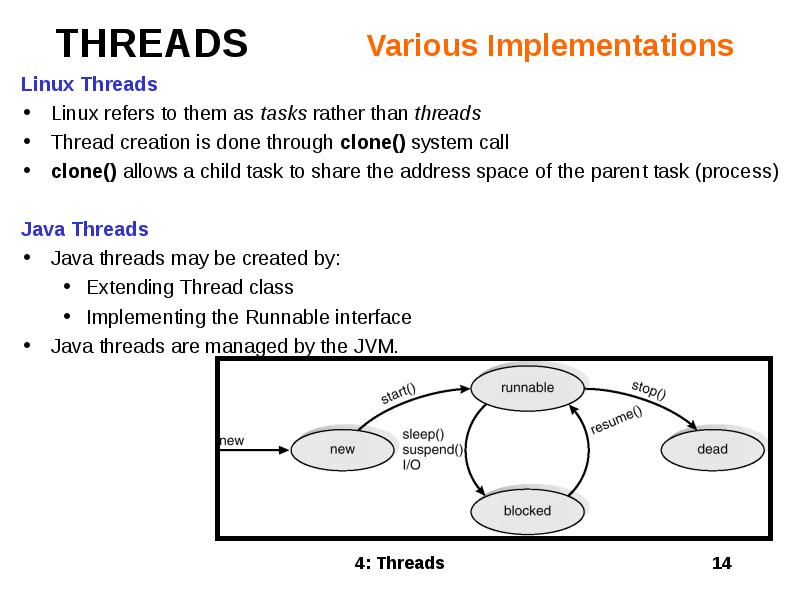

Various Implementations Linux Threads Linux refers to them as tasks rather than threads Thread creation is done through clone() system call clone() allows a child task to share the address space of the parent task (process) Java Threads Java threads may be created by: Extending Thread class Implementing the Runnable interface Java threads are managed by the JVM.
