SmartPlant 3D Common Task

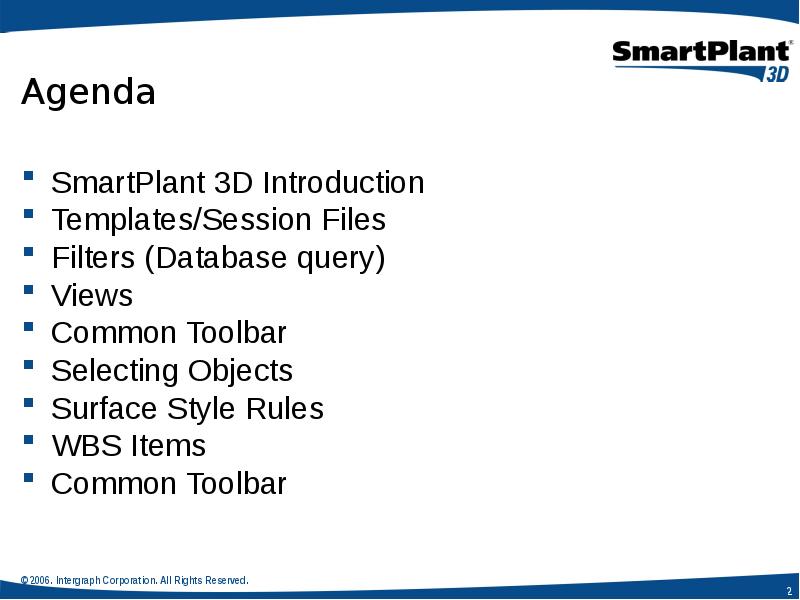

Agenda SmartPlant 3D Introduction Templates/Session Files Filters (Database query) Views Common Toolbar Selecting Objects Surface Style Rules WBS Items Common Toolbar

Agenda Cont’ Space management Inserting Reference Files Placing Control Points Interference Detection

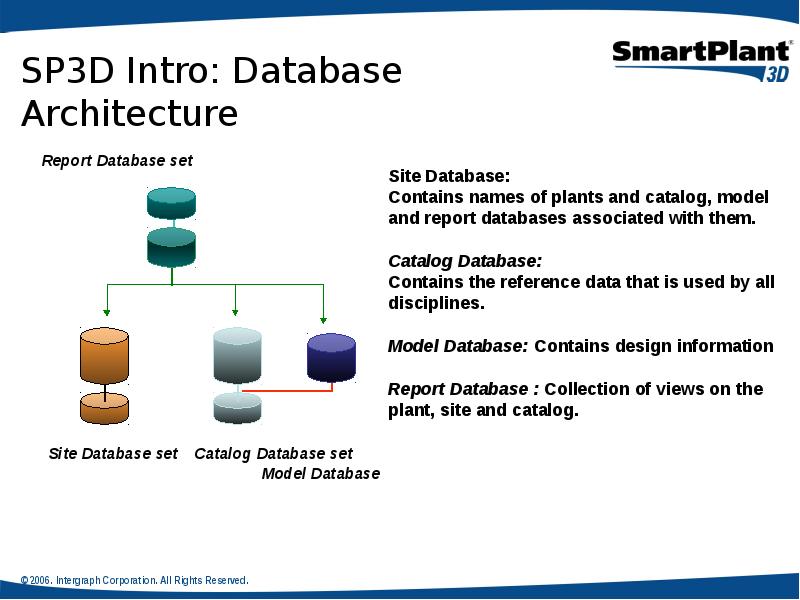

SP3D Intro: Database Architecture

SP3D Intro: Single Database Set

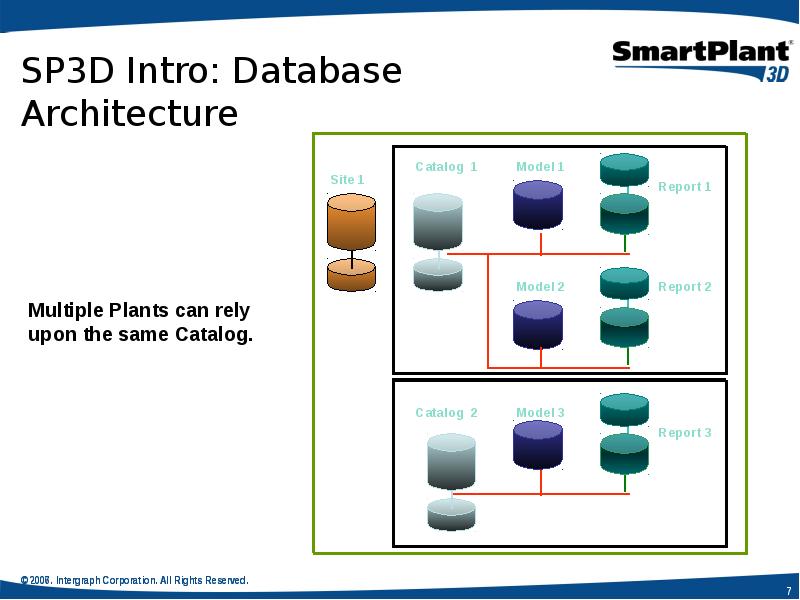

SP3D Intro: Database Architecture

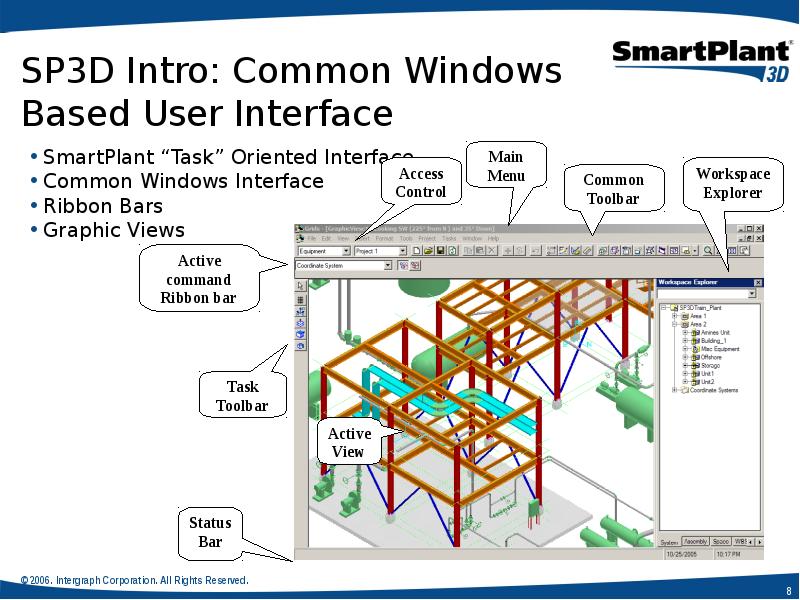

SP3D Intro: Common Windows Based User Interface SmartPlant “Task” Oriented Interface Common Windows Interface Ribbon Bars Graphic Views

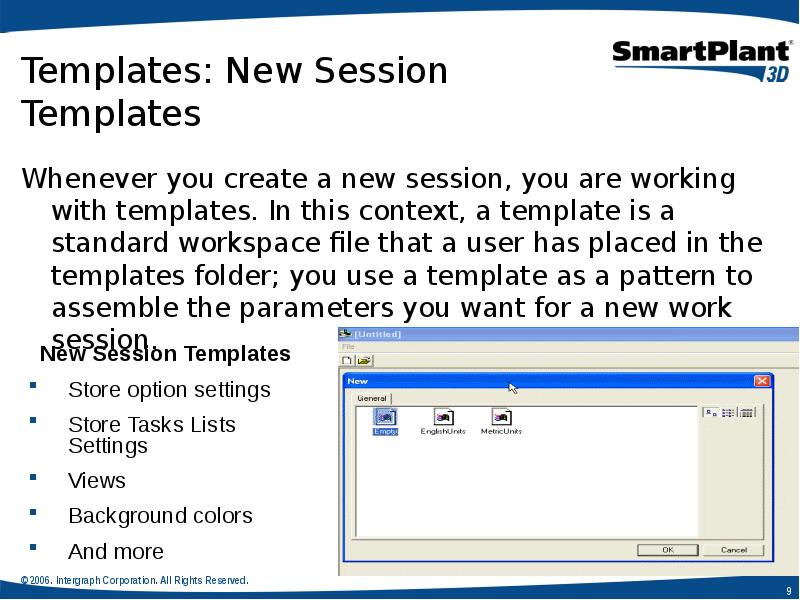

Templates: New Session Templates Whenever you create a new session, you are working with templates. In this context, a template is a standard workspace file that a user has placed in the templates folder; you use a template as a pattern to assemble the parameters you want for a new work session.

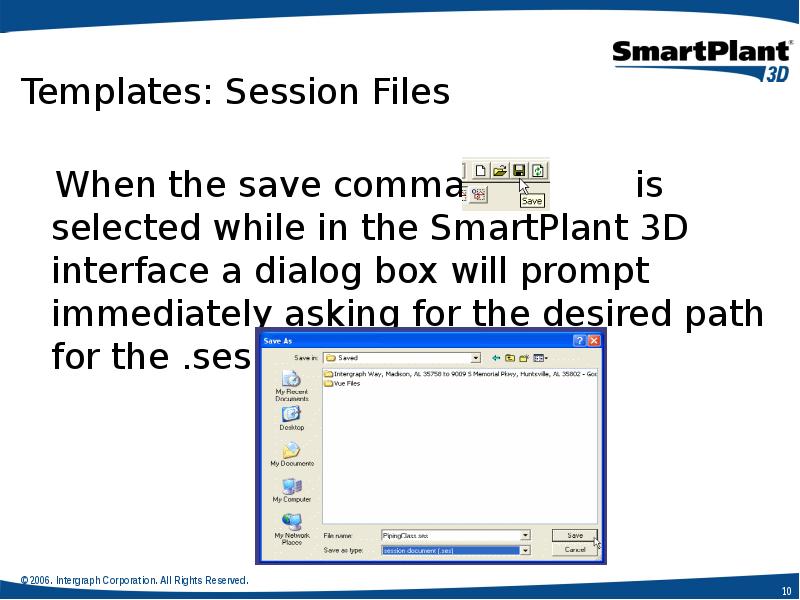

Templates: Session Files When the save command is selected while in the SmartPlant 3D interface a dialog box will prompt immediately asking for the desired path for the .ses file:

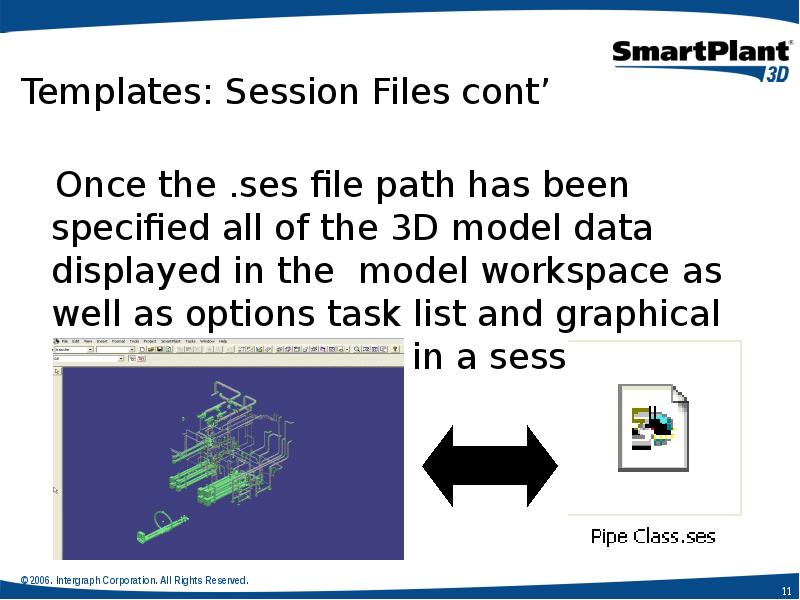

Templates: Session Files cont’ Once the .ses file path has been specified all of the 3D model data displayed in the model workspace as well as options task list and graphical views will be stored in a session file.

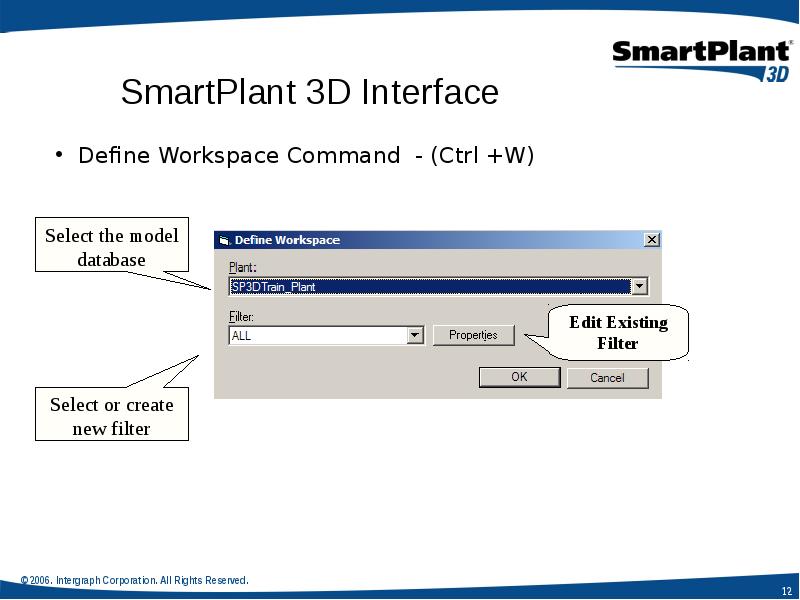

Define Workspace Command - (Ctrl +W) Define Workspace Command - (Ctrl +W)

A filter is a set of search criteria that selects or retrieves data based on the A filter is a set of search criteria that selects or retrieves data based on the object properties: System Assembly Named Space Work Breakdown Structure (WBS) Analysis Permission group Object Type Spatial (Volume) Reference Properties PDS (If PDS project attached)

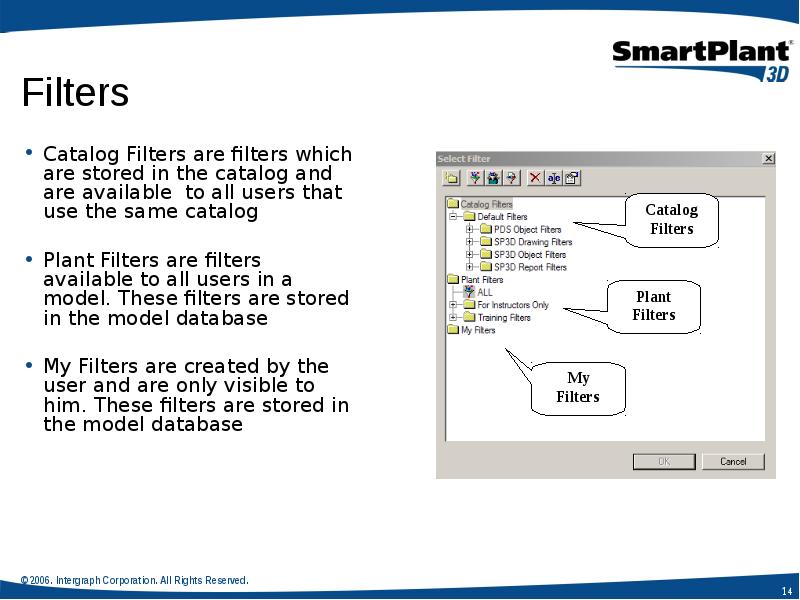

Catalog Filters are filters which are stored in the catalog and are available to all users that use the same catalog Catalog Filters are filters which are stored in the catalog and are available to all users that use the same catalog Plant Filters are filters available to all users in a model. These filters are stored in the model database My Filters are created by the user and are only visible to him. These filters are stored in the model database

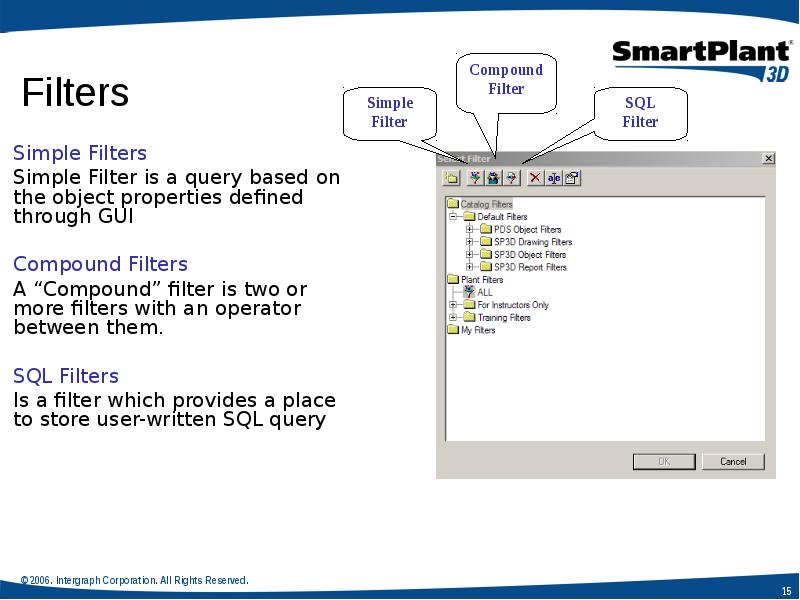

Simple Filters Simple Filters Simple Filter is a query based on the object properties defined through GUI Compound Filters A “Compound” filter is two or more filters with an operator between them. SQL Filters Is a filter which provides a place to store user-written SQL query

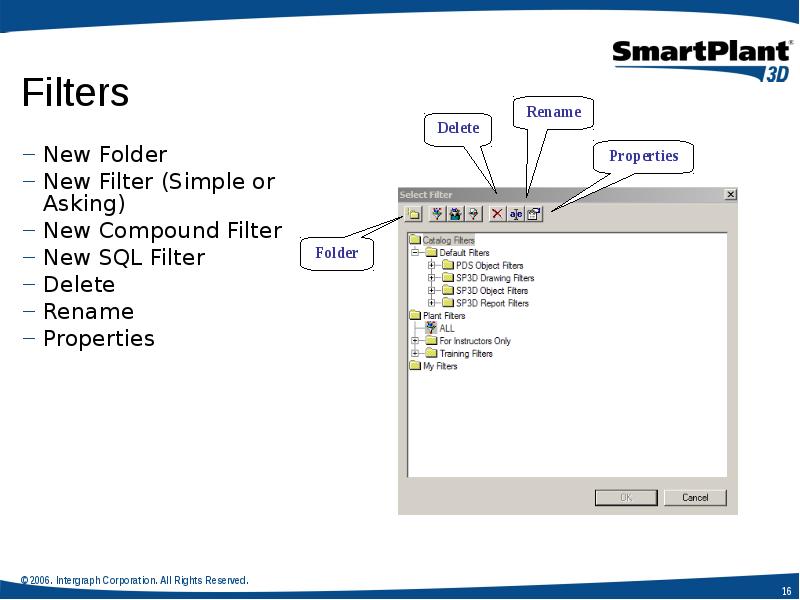

New Folder New Folder New Filter (Simple or Asking) New Compound Filter New SQL Filter Delete Rename Properties

System Tab System Tab Expand the search to include all selected systems A system is a way to group objects logically – e.g. by discipline, by design area, by physical area, etc Every object must belong to a system System Types

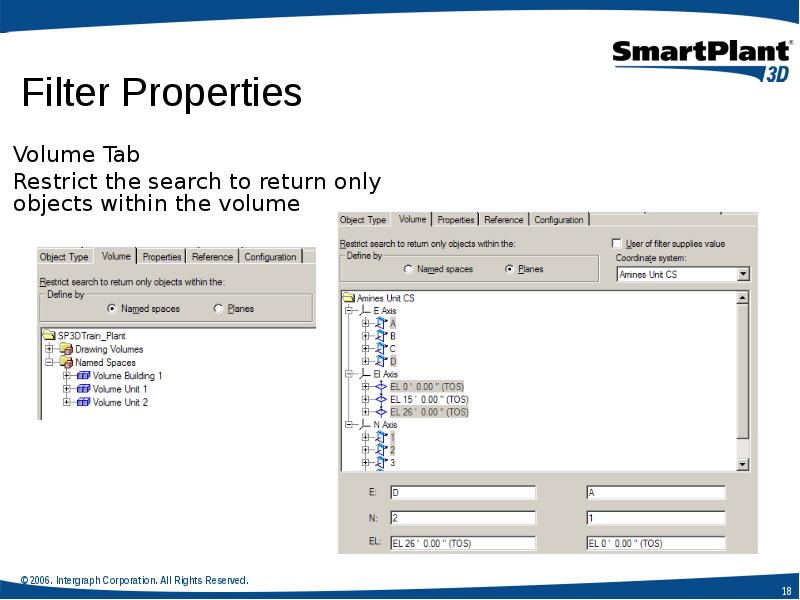

Volume Tab Volume Tab Restrict the search to return only objects within the volume

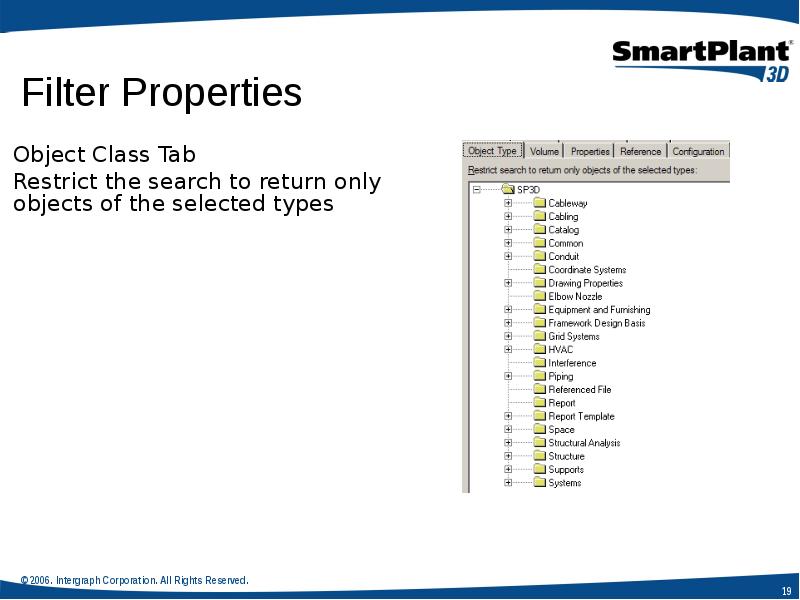

Object Class Tab Object Class Tab Restrict the search to return only objects of the selected types

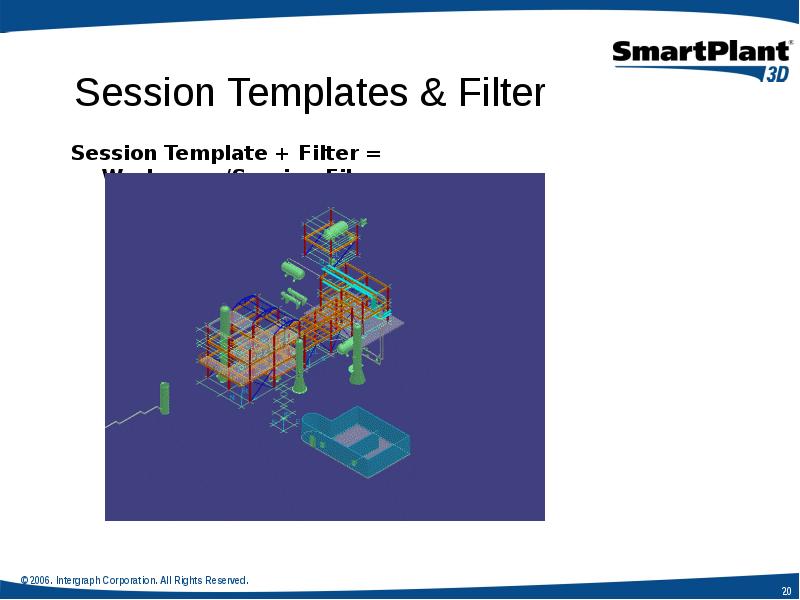

Session Template + Filter = Workspace/Session File Session Template + Filter = Workspace/Session File

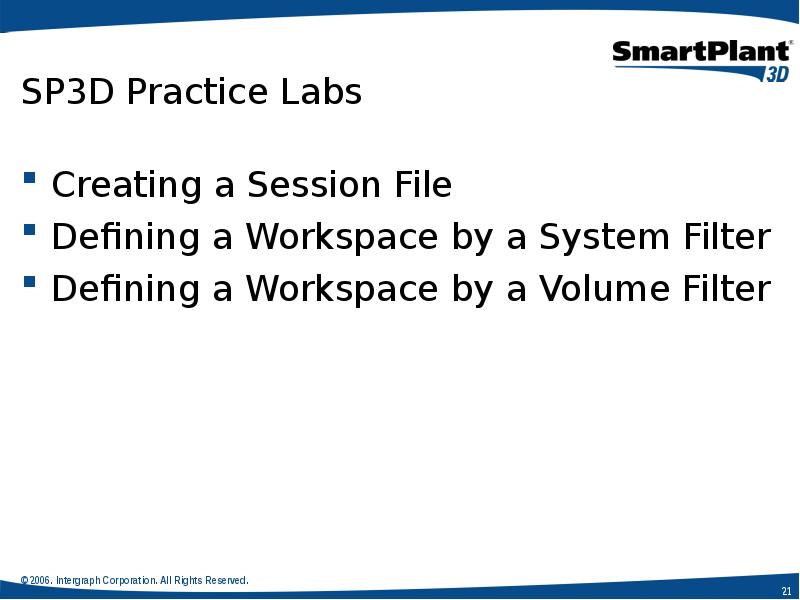

SP3D Practice Labs Creating a Session File Defining a Workspace by a System Filter Defining a Workspace by a Volume Filter

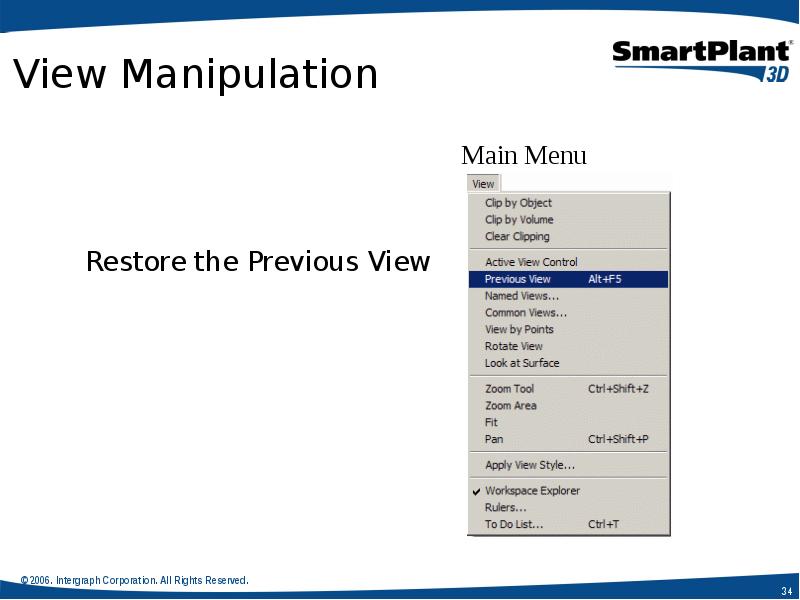

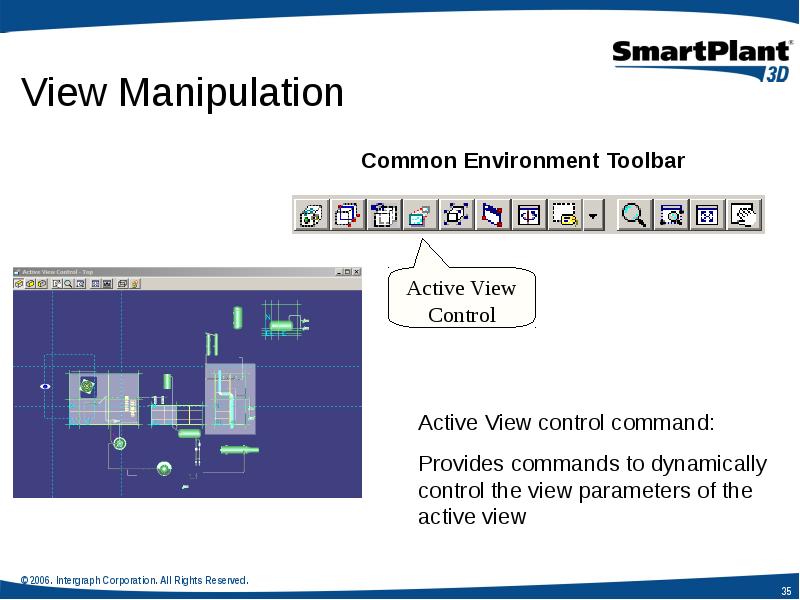

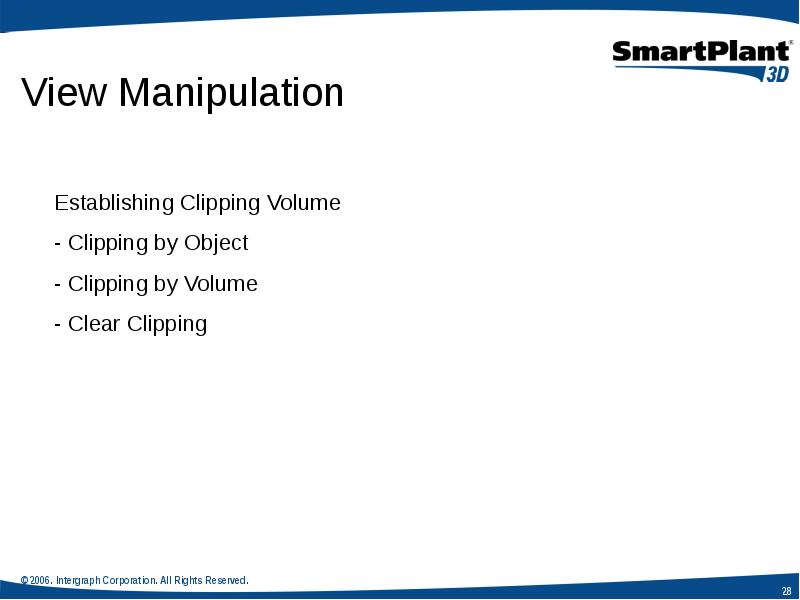

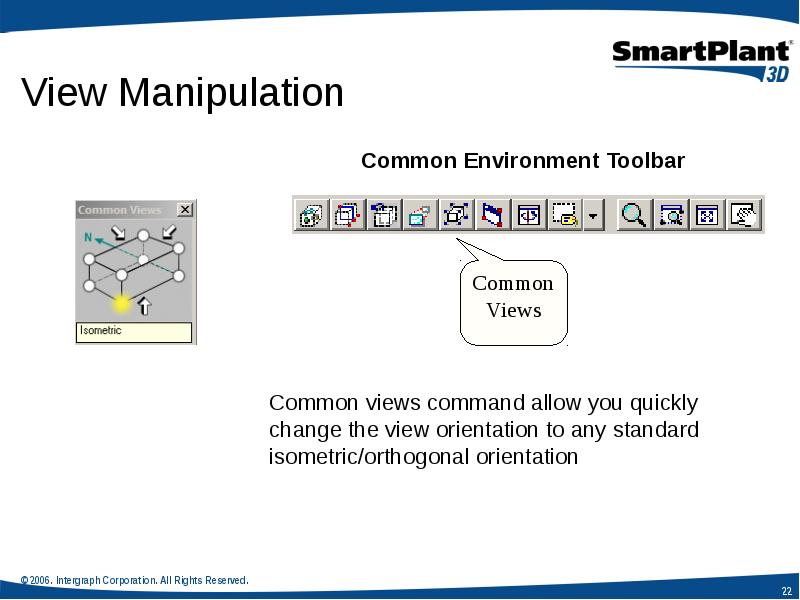

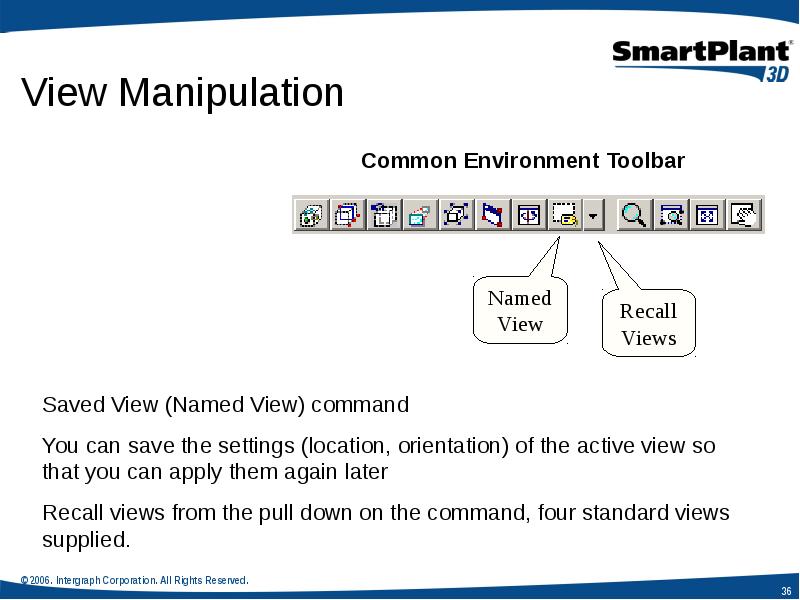

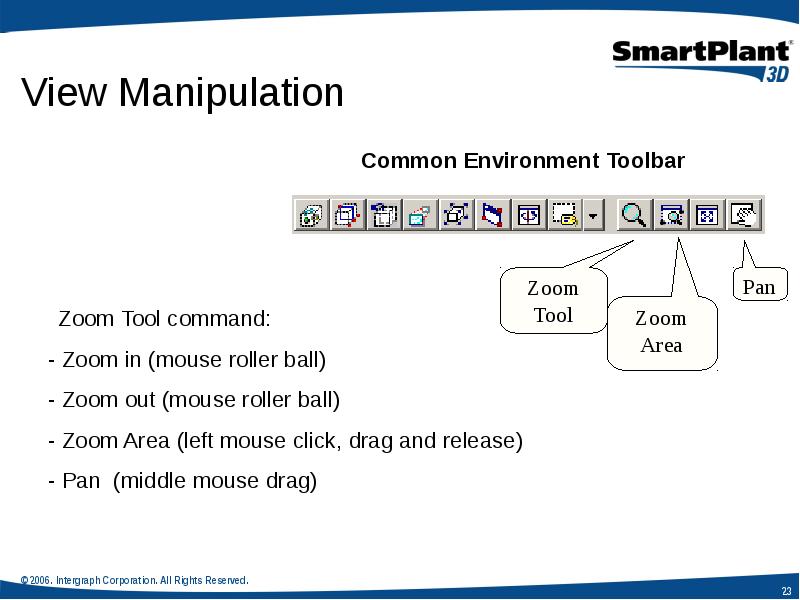

View Manipulation Restore the Previous View

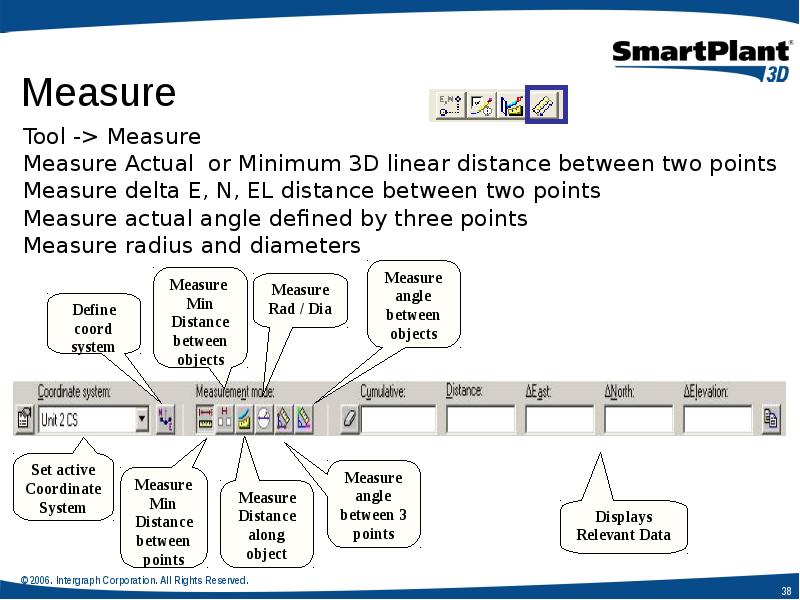

Tool -> Measure Tool -> Measure Measure Actual or Minimum 3D linear distance between two points Measure delta E, N, EL distance between two points Measure actual angle defined by three points Measure radius and diameters

SmartSketch is the mechanism to automatically find special points when the command is looking for a point. SmartSketch is the mechanism to automatically find special points when the command is looking for a point.

Allows you to enable the SmartSketch indicators Allows you to enable the SmartSketch indicators

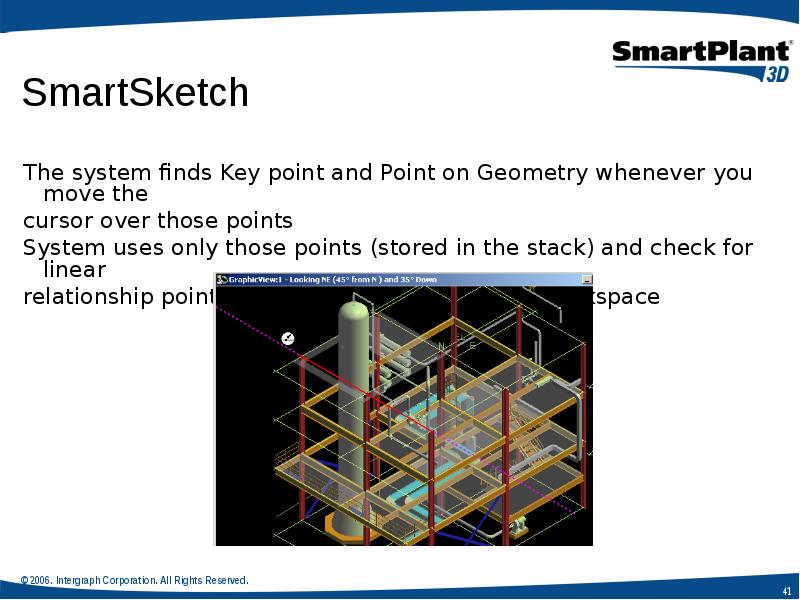

The system finds Key point and Point on Geometry whenever you move the The system finds Key point and Point on Geometry whenever you move the cursor over those points System uses only those points (stored in the stack) and check for linear relationship points against every object in the workspace

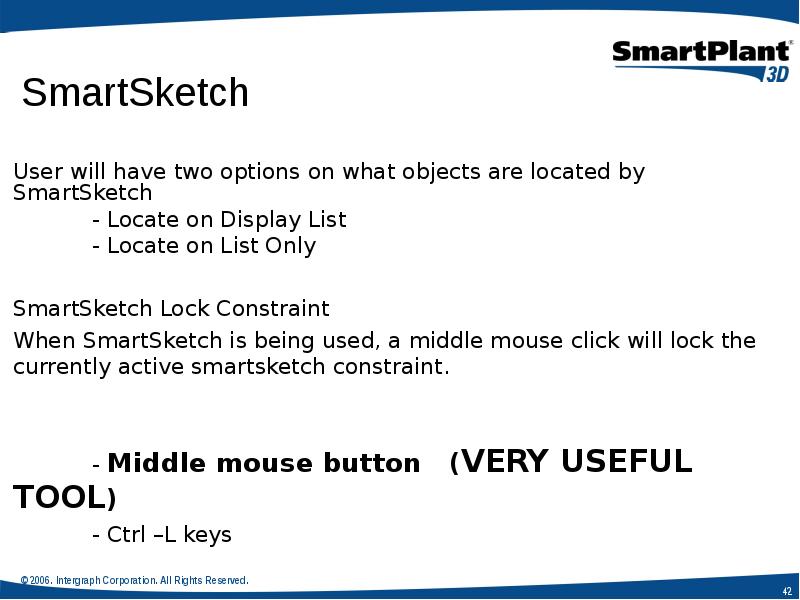

User will have two options on what objects are located by SmartSketch User will have two options on what objects are located by SmartSketch - Locate on Display List - Locate on List Only SmartSketch Lock Constraint When SmartSketch is being used, a middle mouse click will lock the currently active smartsketch constraint. - Middle mouse button (VERY USEFUL TOOL) - Ctrl –L keys

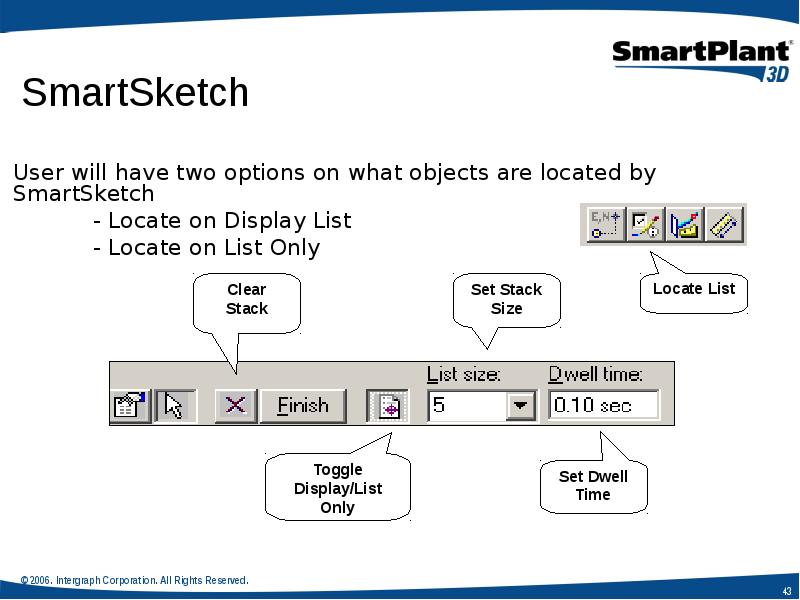

User will have two options on what objects are located by SmartSketch User will have two options on what objects are located by SmartSketch - Locate on Display List - Locate on List Only

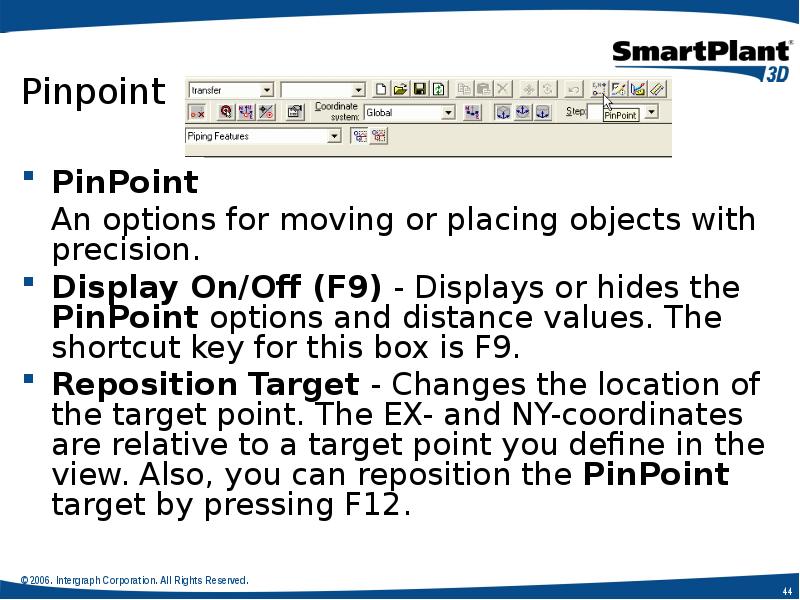

Pinpoint PinPoint An options for moving or placing objects with precision. Display On/Off (F9) - Displays or hides the PinPoint options and distance values. The shortcut key for this box is F9. Reposition Target - Changes the location of the target point. The EX- and NY-coordinates are relative to a target point you define in the view. Also, you can reposition the PinPoint target by pressing F12.

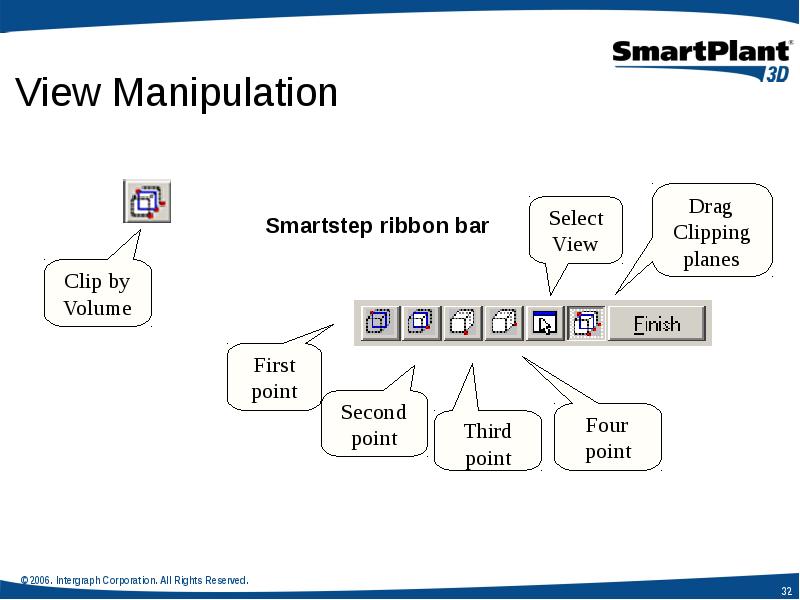

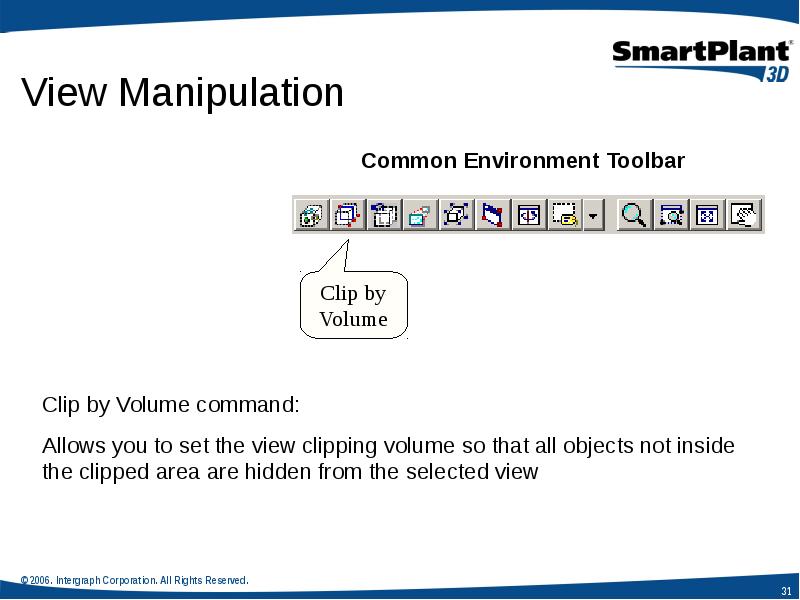

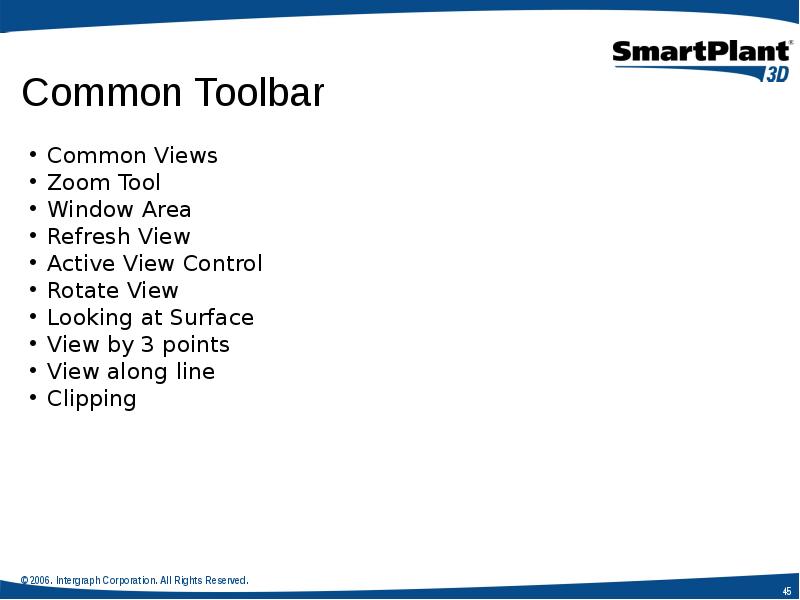

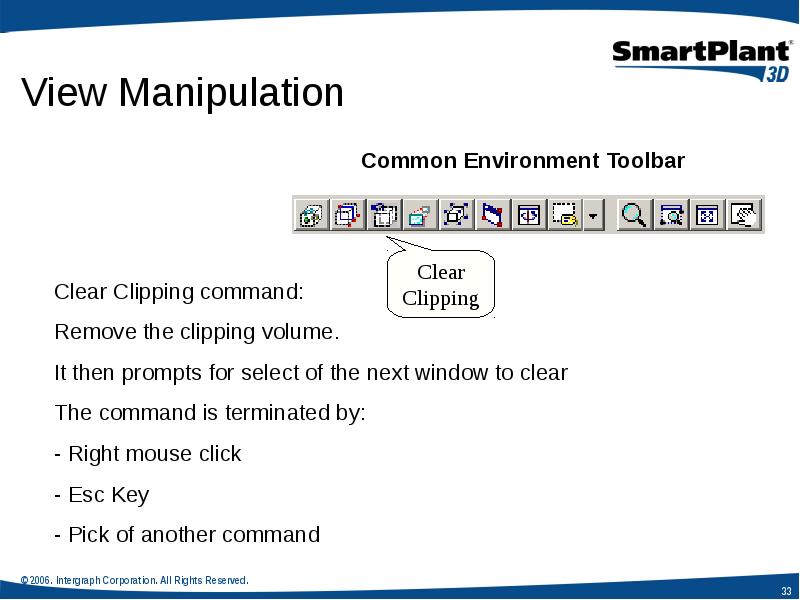

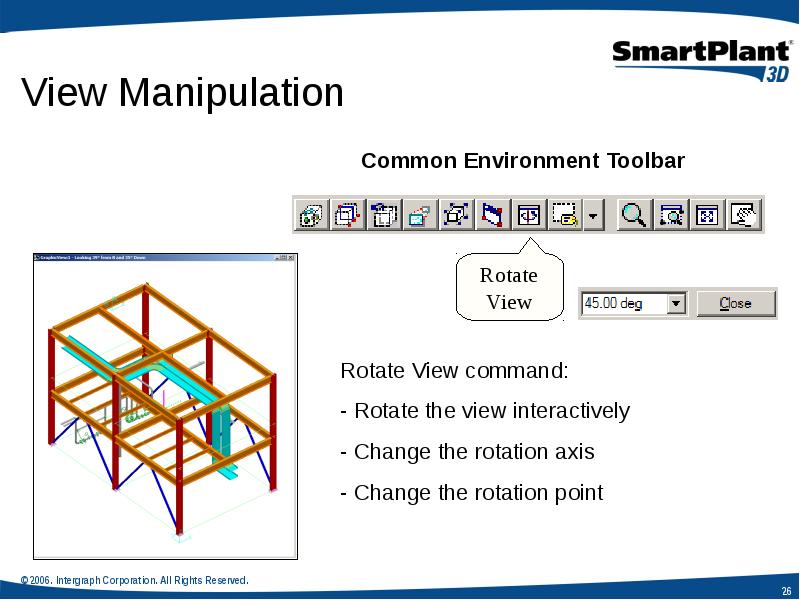

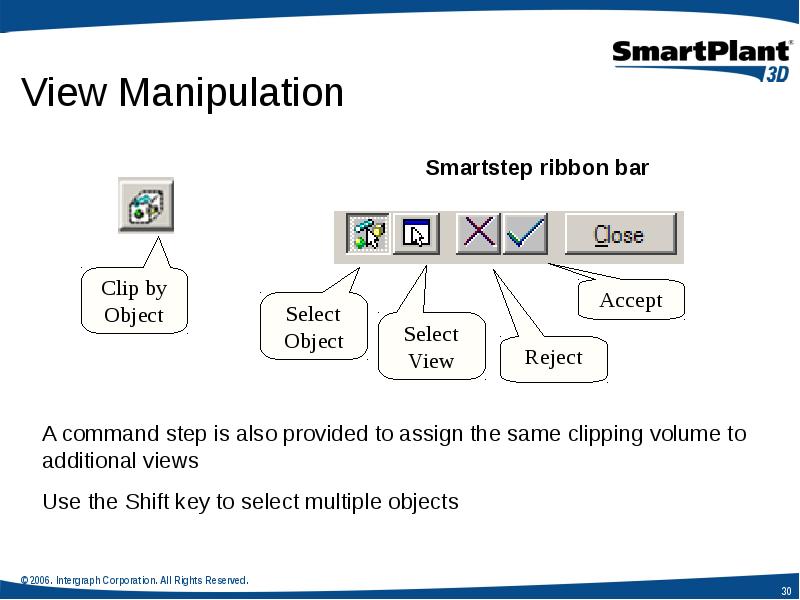

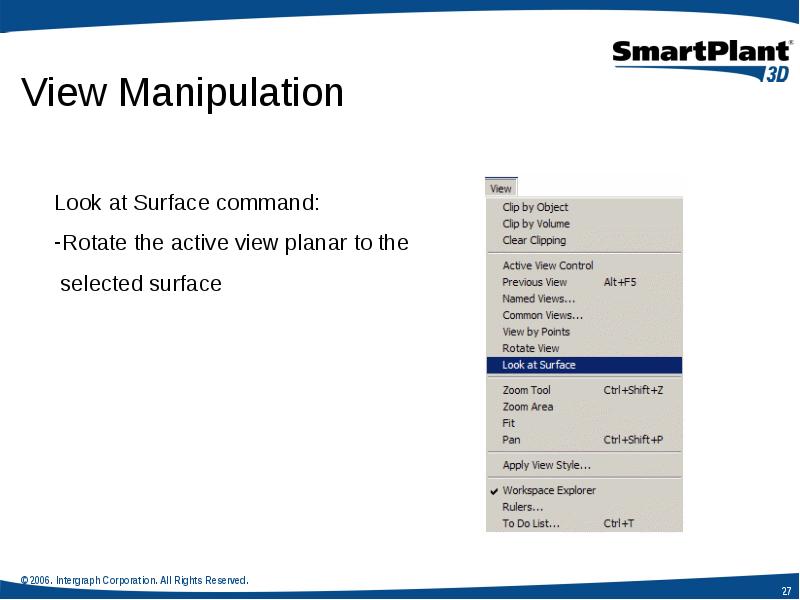

Common Views Common Views Zoom Tool Window Area Refresh View Active View Control Rotate View Looking at Surface View by 3 points View along line Clipping

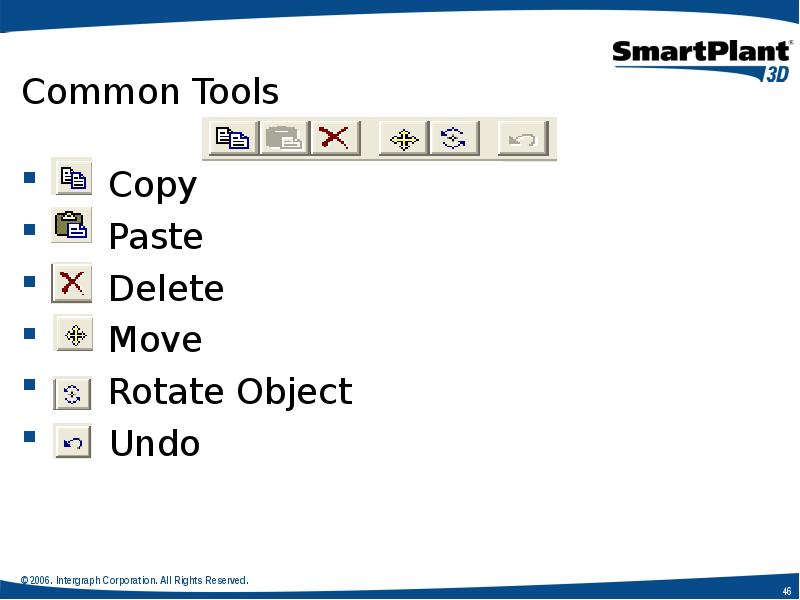

Common Tools Copy Paste Delete Move Rotate Object Undo

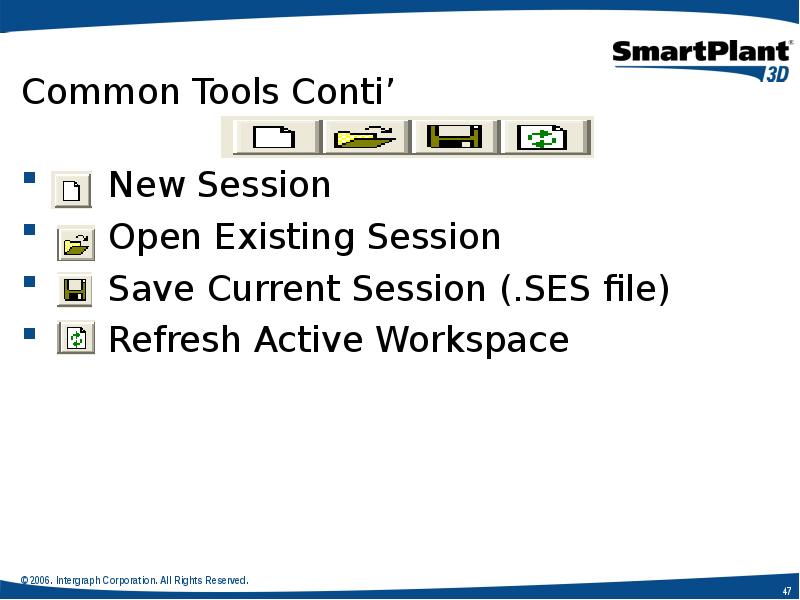

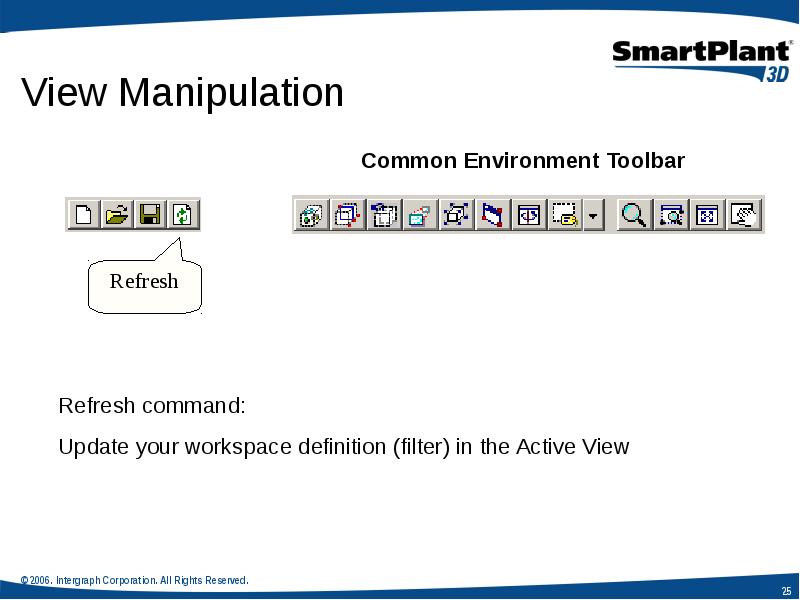

Common Tools Conti’ New Session Open Existing Session Save Current Session (.SES file) Refresh Active Workspace

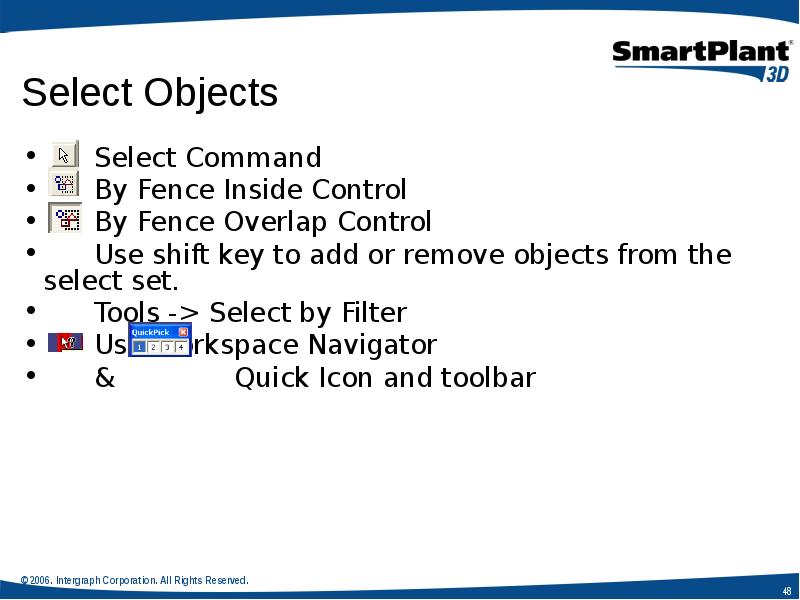

Select Command Select Command By Fence Inside Control By Fence Overlap Control Use shift key to add or remove objects from the select set. Tools -> Select by Filter Use Workspace Navigator & Quick Icon and toolbar

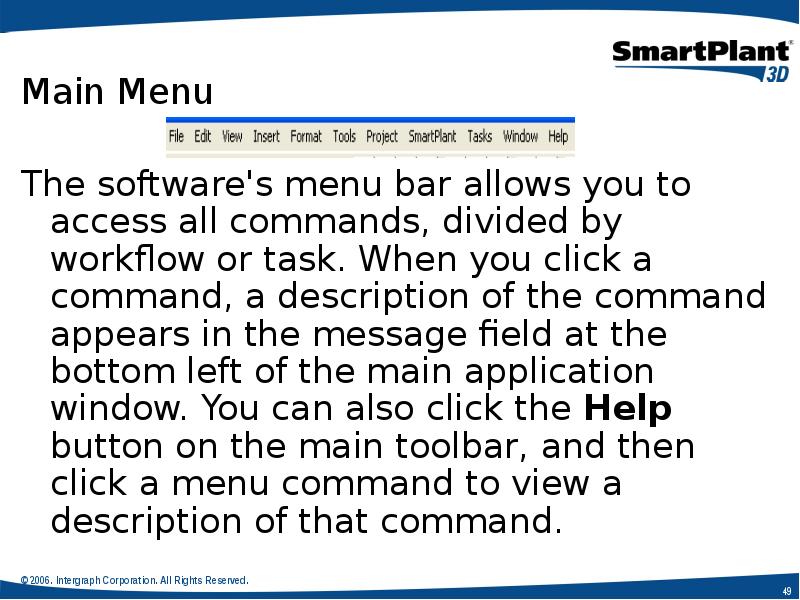

Main Menu The software's menu bar allows you to access all commands, divided by workflow or task. When you click a command, a description of the command appears in the message field at the bottom left of the main application window. You can also click the Help button on the main toolbar, and then click a menu command to view a description of that command.

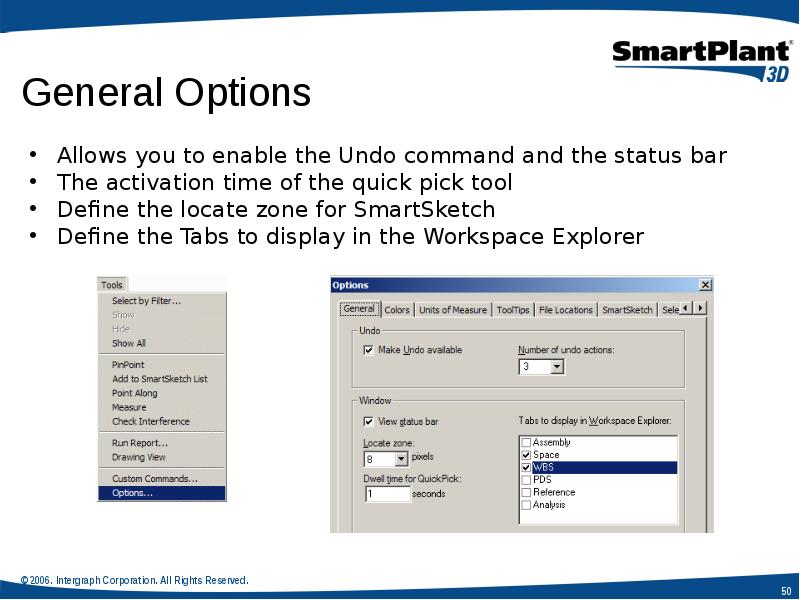

Allows you to enable the Undo command and the status bar Allows you to enable the Undo command and the status bar The activation time of the quick pick tool Define the locate zone for SmartSketch Define the Tabs to display in the Workspace Explorer

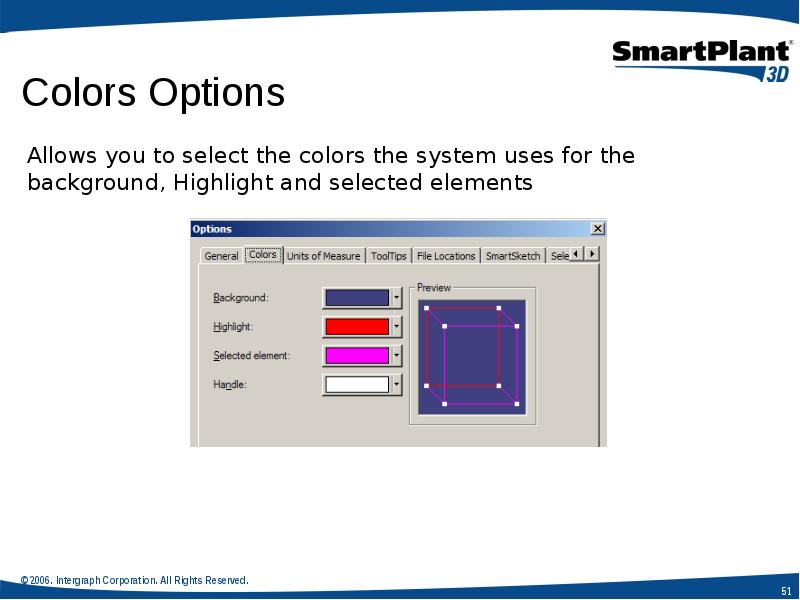

Allows you to select the colors the system uses for the background, Highlight and selected elements Allows you to select the colors the system uses for the background, Highlight and selected elements

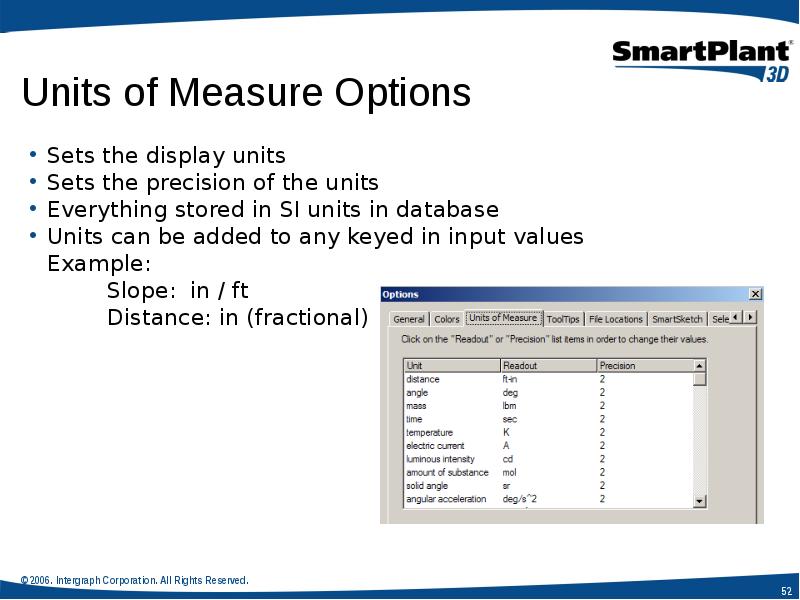

Sets the display units Sets the display units Sets the precision of the units Everything stored in SI units in database Units can be added to any keyed in input values Example: Slope: in / ft Distance: in (fractional)

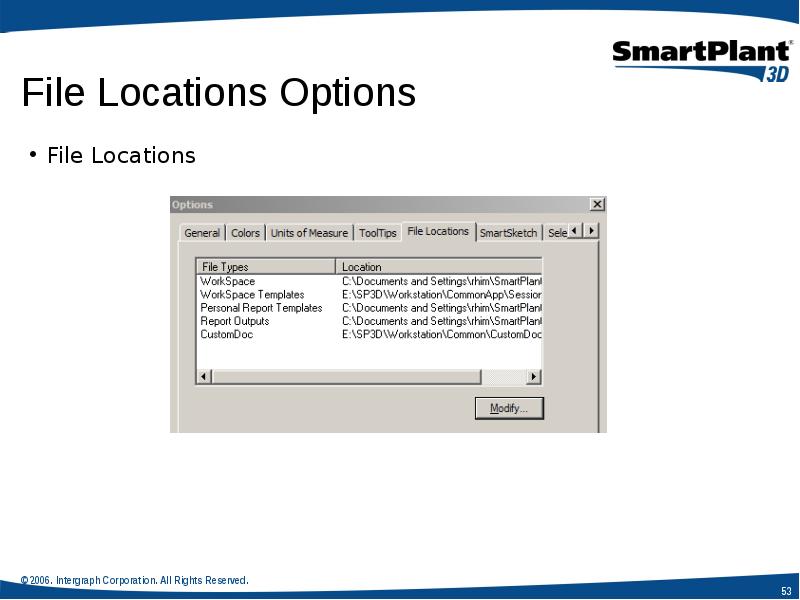

File Locations File Locations

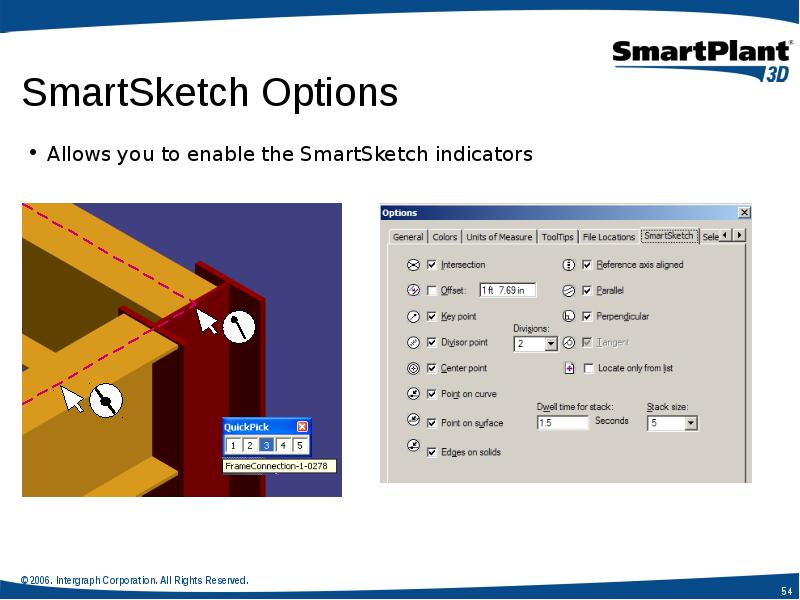

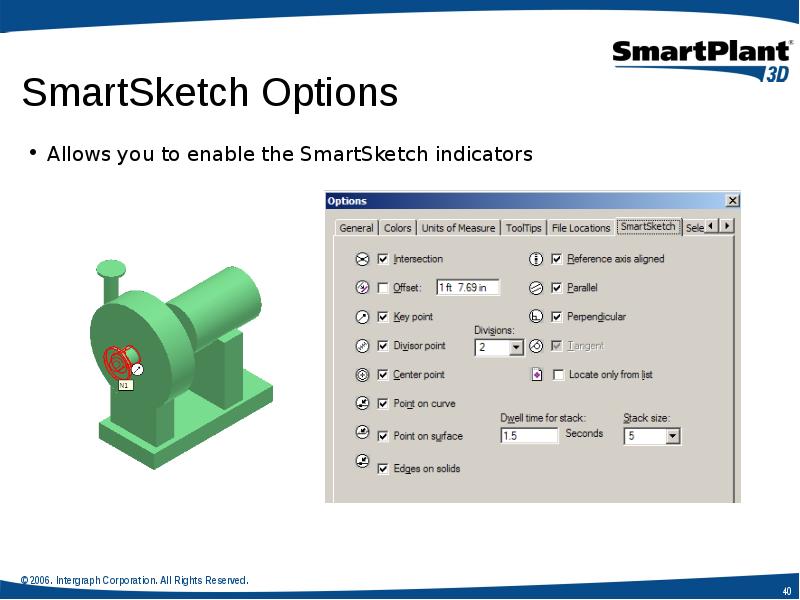

Allows you to enable the SmartSketch indicators Allows you to enable the SmartSketch indicators

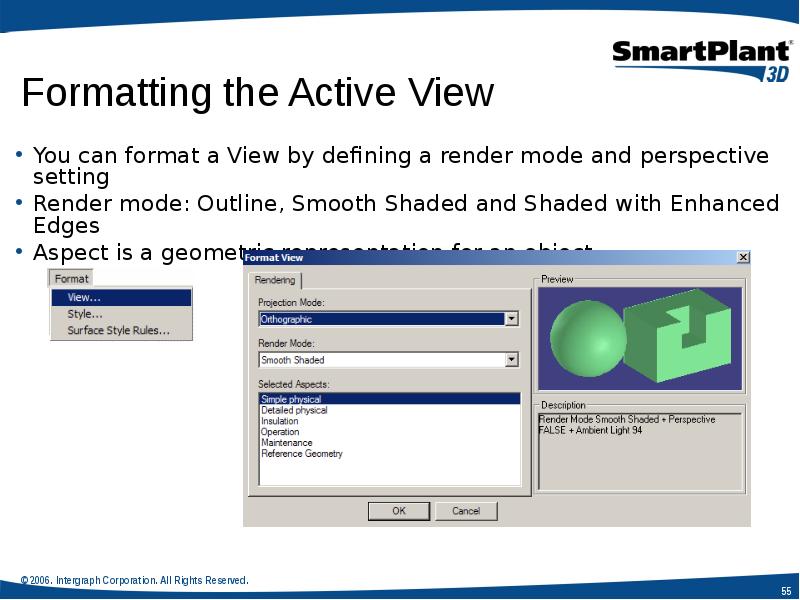

You can format a View by defining a render mode and perspective setting You can format a View by defining a render mode and perspective setting Render mode: Outline, Smooth Shaded and Shaded with Enhanced Edges Aspect is a geometric representation for an object

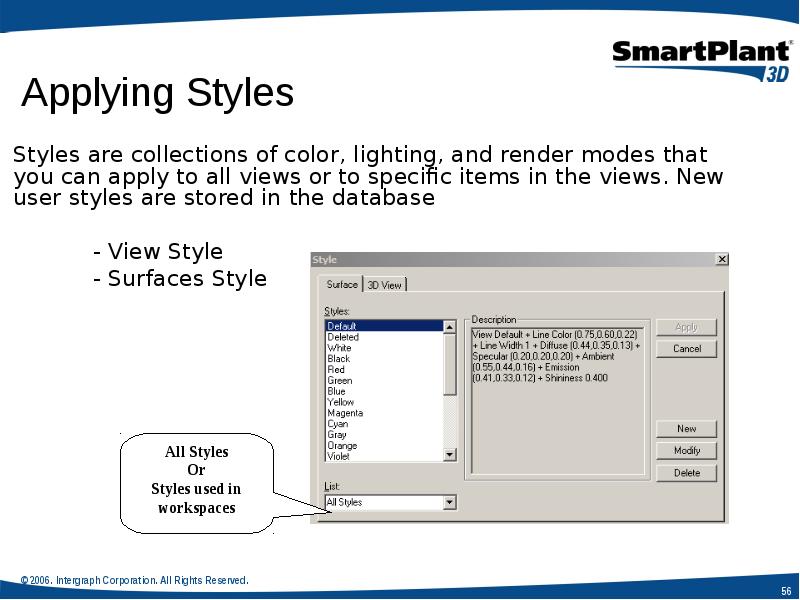

Styles are collections of color, lighting, and render modes that you can apply to all views or to specific items in the views. New user styles are stored in the database Styles are collections of color, lighting, and render modes that you can apply to all views or to specific items in the views. New user styles are stored in the database - View Style - Surfaces Style

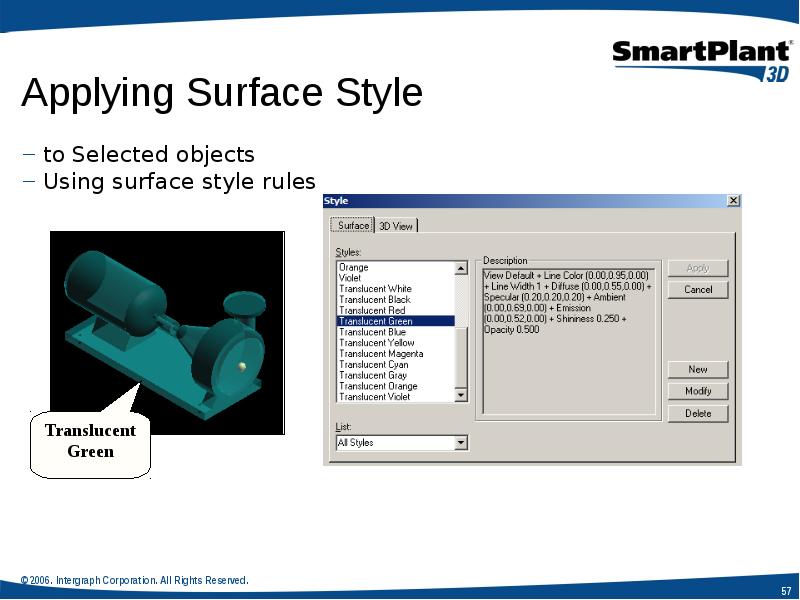

to Selected objects to Selected objects Using surface style rules

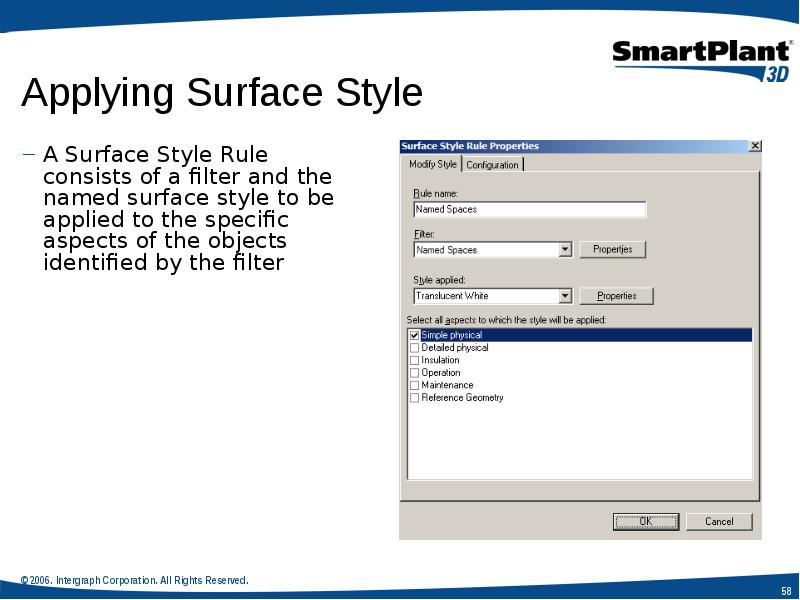

A Surface Style Rule consists of a filter and the named surface style to be applied to the specific aspects of the objects identified by the filter A Surface Style Rule consists of a filter and the named surface style to be applied to the specific aspects of the objects identified by the filter

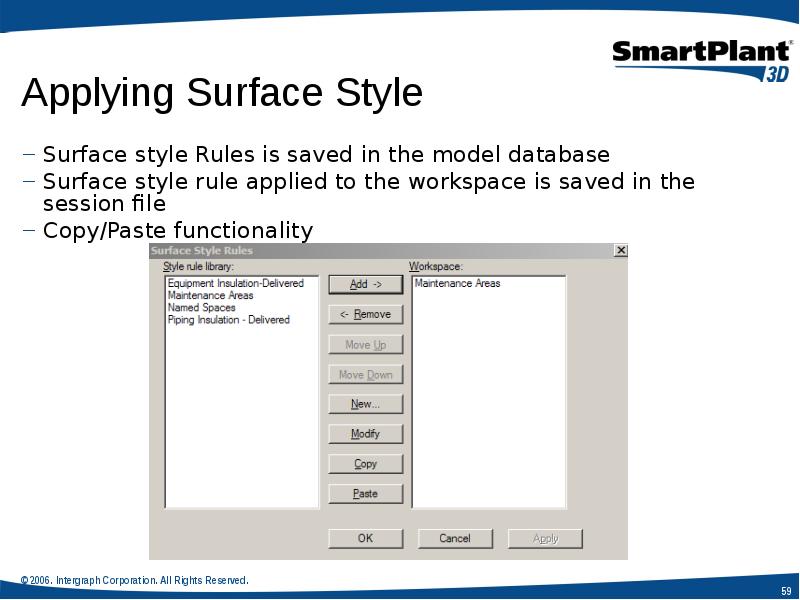

Surface style Rules is saved in the model database Surface style Rules is saved in the model database Surface style rule applied to the workspace is saved in the session file Copy/Paste functionality

SP3D Practice Labs Manipulating Views Selecting Objects in a model Applying a Surface Style Rule

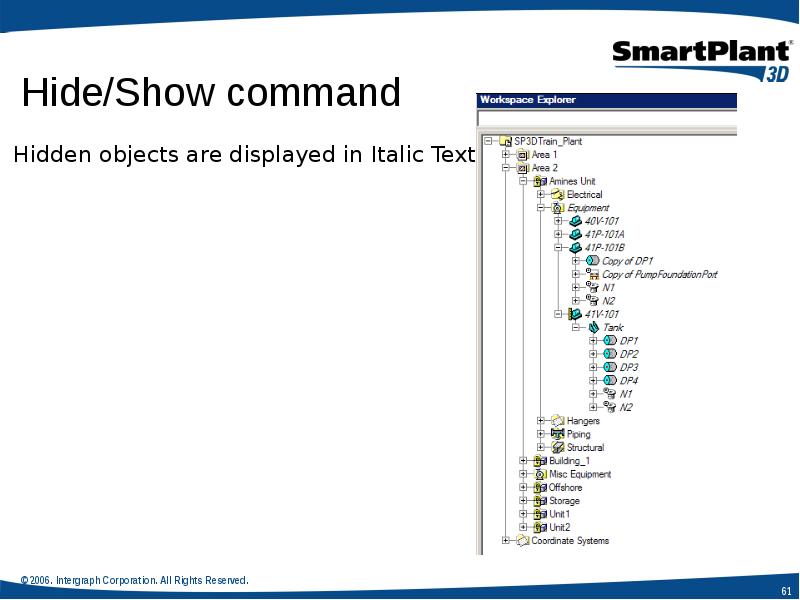

Hidden objects are displayed in Italic Text Hidden objects are displayed in Italic Text

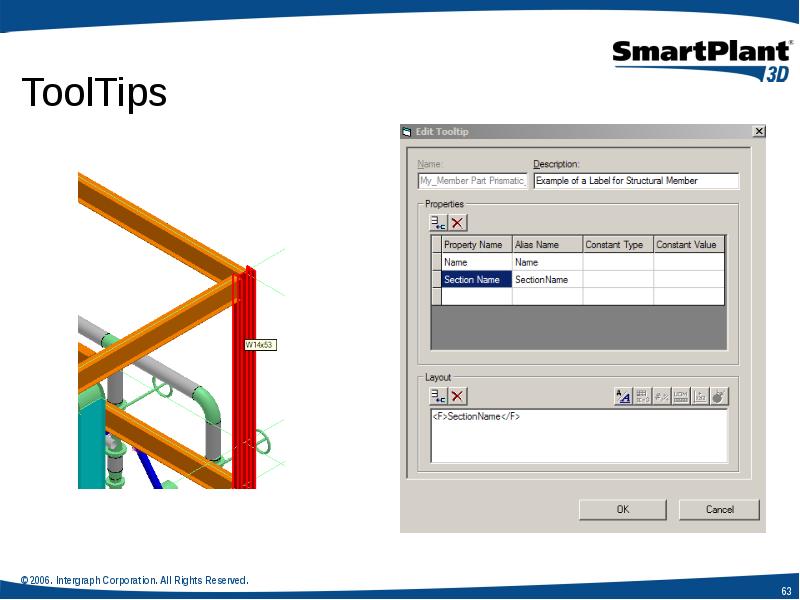

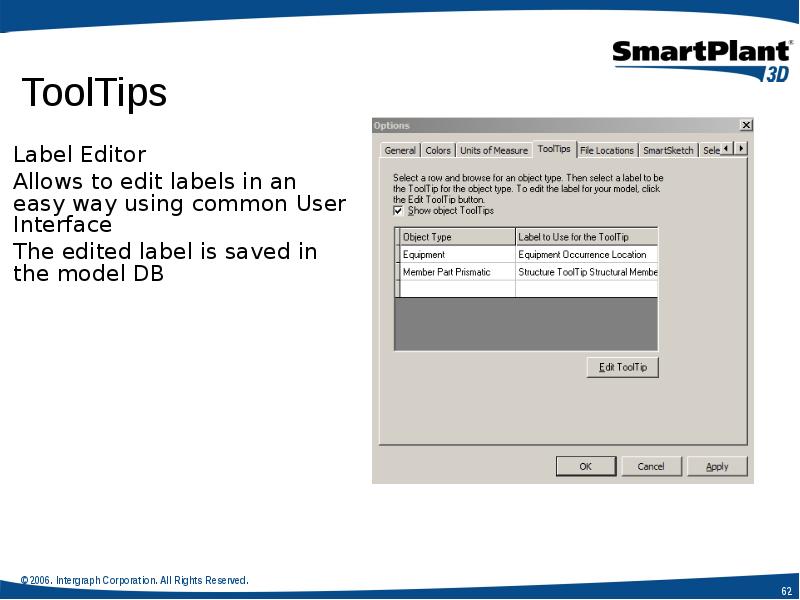

Label Editor Label Editor Allows to edit labels in an easy way using common User Interface The edited label is saved in the model DB

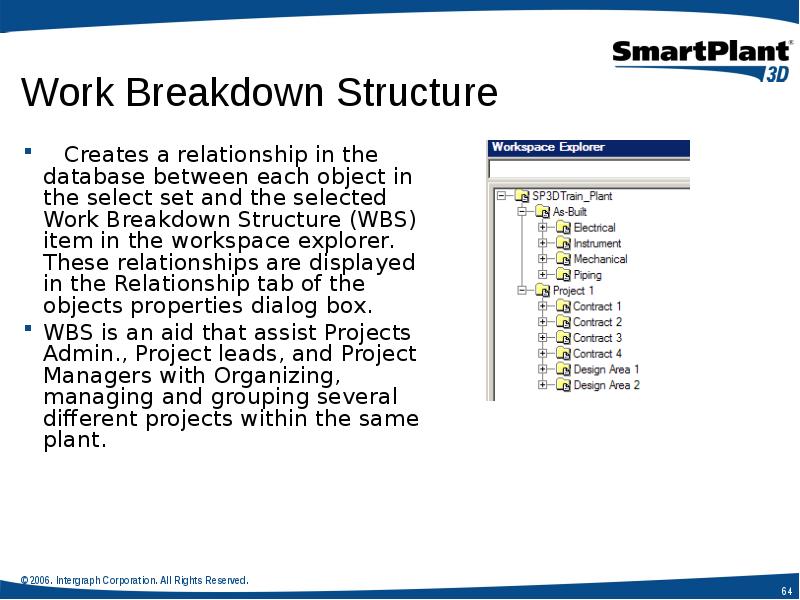

Creates a relationship in the database between each object in the select set and the selected Work Breakdown Structure (WBS) item in the workspace explorer. These relationships are displayed in the Relationship tab of the objects properties dialog box. Creates a relationship in the database between each object in the select set and the selected Work Breakdown Structure (WBS) item in the workspace explorer. These relationships are displayed in the Relationship tab of the objects properties dialog box. WBS is an aid that assist Projects Admin., Project leads, and Project Managers with Organizing, managing and grouping several different projects within the same plant.

Definition Definition A 3D object representing a point in the model Drive label locations on orthographic drawings Placement method: Insert Control Point Command Define in the Symbol Definition Control point location is user defined The position can be declared to be at a fixed global position or the positioning method can be associatively maintained. The control point is associative to a parent object Control Point graphics is a sphere that does not support interference detection Control Point is displayed in Reference Geometry Aspect

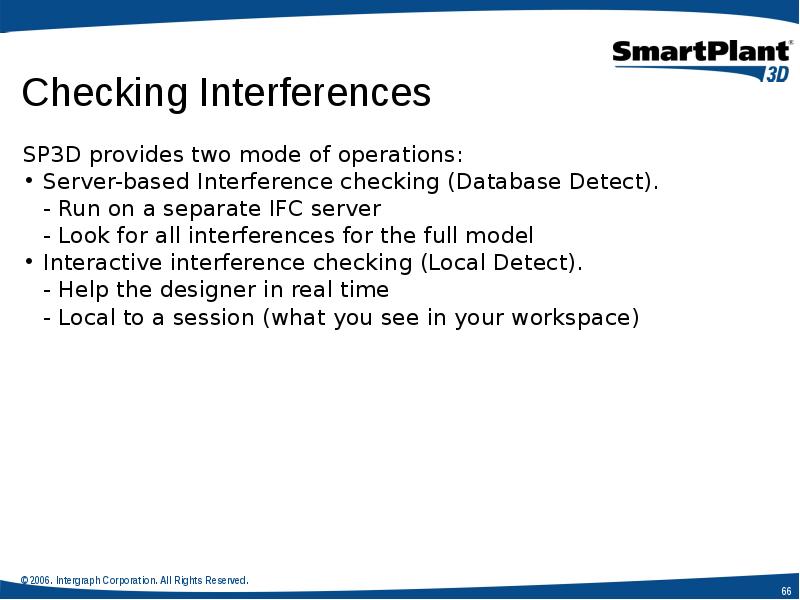

SP3D provides two mode of operations: SP3D provides two mode of operations: Server-based Interference checking (Database Detect). - Run on a separate IFC server - Look for all interferences for the full model Interactive interference checking (Local Detect). - Help the designer in real time - Local to a session (what you see in your workspace)

Major Differences between the two methods: Major Differences between the two methods:

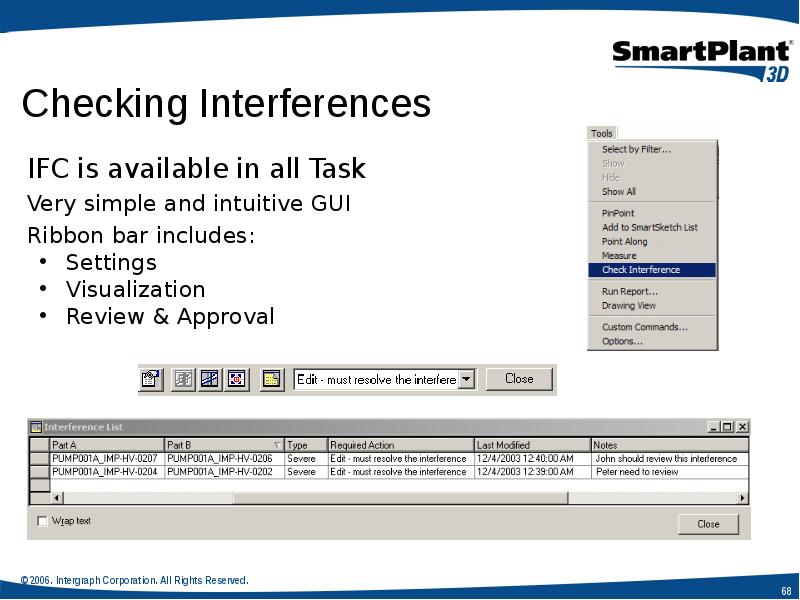

IFC is available in all Task IFC is available in all Task Very simple and intuitive GUI Ribbon bar includes: Settings Visualization Review & Approval

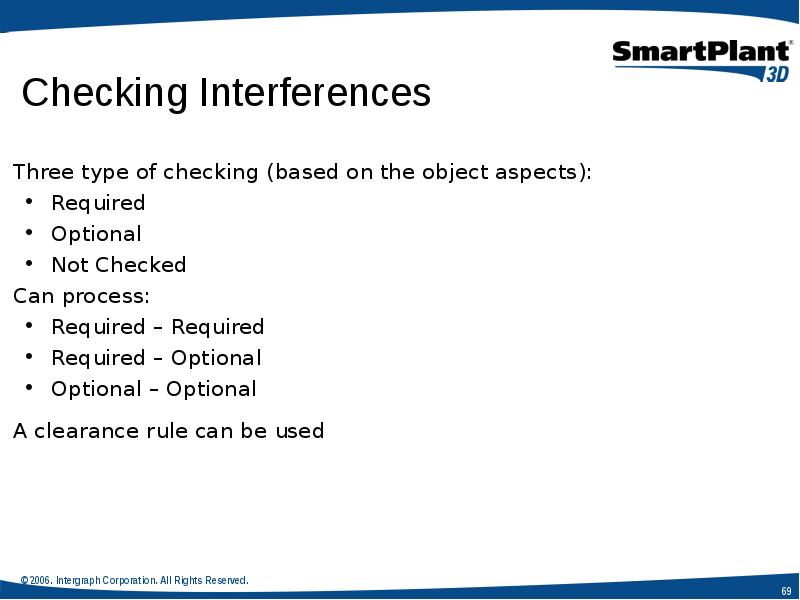

Three type of checking (based on the object aspects): Three type of checking (based on the object aspects): Required Optional Not Checked Can process: Required – Required Required – Optional Optional – Optional A clearance rule can be used

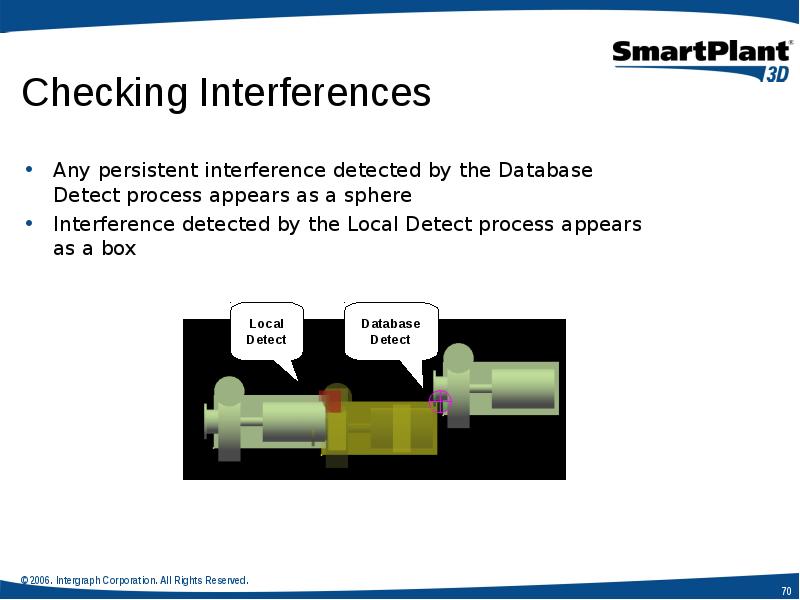

Any persistent interference detected by the Database Detect process appears as a sphere Any persistent interference detected by the Database Detect process appears as a sphere Interference detected by the Local Detect process appears as a box

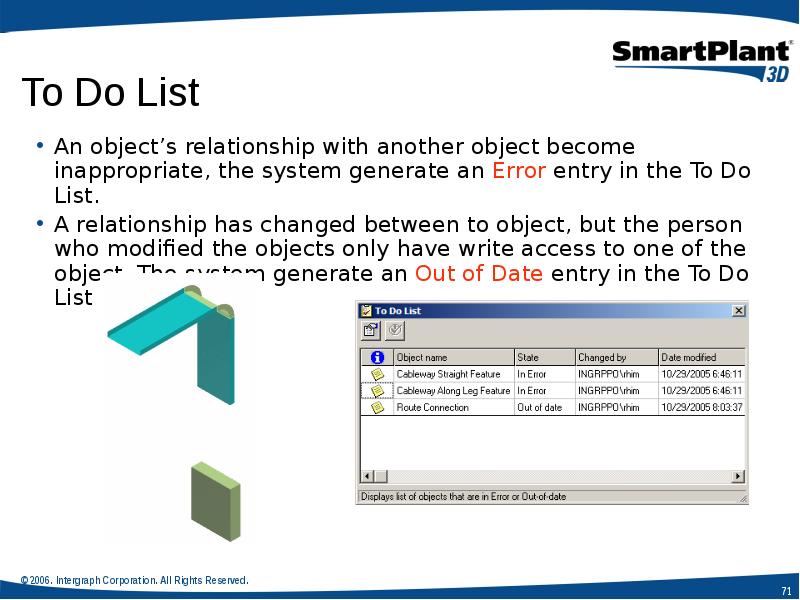

An object’s relationship with another object become inappropriate, the system generate an Error entry in the To Do List. An object’s relationship with another object become inappropriate, the system generate an Error entry in the To Do List. A relationship has changed between to object, but the person who modified the objects only have write access to one of the object. The system generate an Out of Date entry in the To Do List

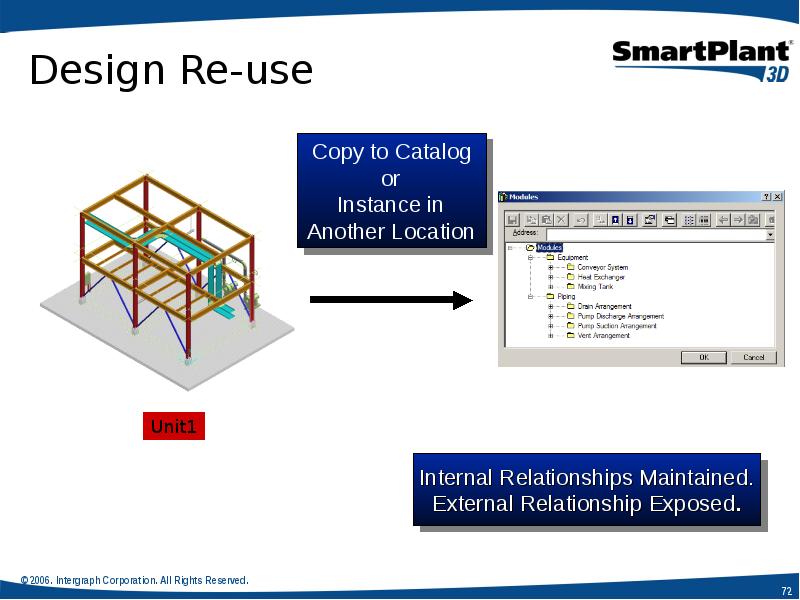

Design Re-use
