XML and JSON Processing Lecture 7

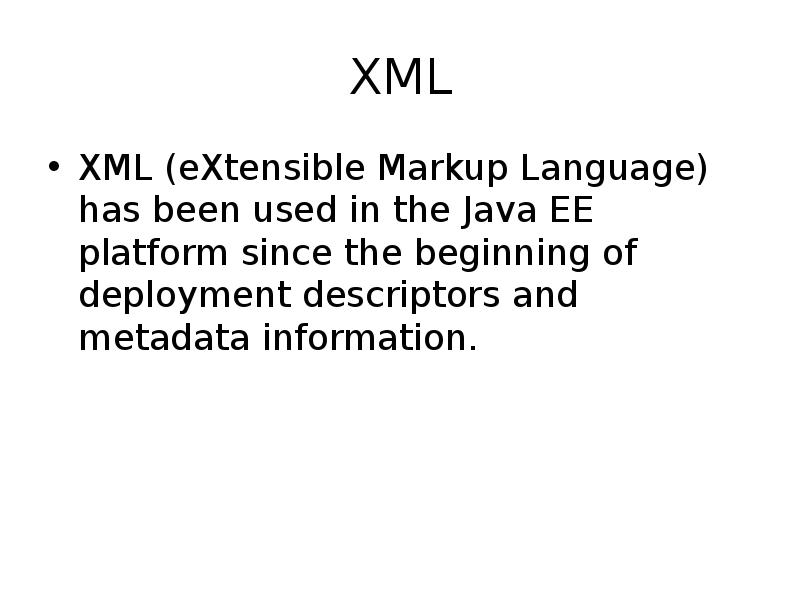

XML XML (eXtensible Markup Language) has been used in the Java EE platform since the beginning of deployment descriptors and metadata information.

<?xml version="1.0" encoding="UTF-8" ?> <?xml version="1.0" encoding="UTF-8" ?> <order id="1234" date="05/06/2013"> <customer first_name="James" last_name="Rorrison"> <email>[email protected]</email> <phoneNumber>+44 1234 1234</phoneNumber> </customer> <content> <order_line item="H2G2" quantity="1"> <unit_price>23.5</unit_price> </order_line> <order_line item="Harry Potter" quantity="2"> <unit_price>34.99</unit_price> </order_line> </content> <credit_card number="1357" expiry_date="10/13" control_number="234" type="Visa"/> </order>

XSD XML Schema Definition (XSD) is an XML-based grammar declaration used to describe the structure and content of an XML document

<?xml version="1.0" encoding="UTF-8" ?> <?xml version="1.0" encoding="UTF-8" ?> <xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema"> <xs:element name="order" type="order"/> <xs:complexType name="creditCard"> <xs:sequence> <xs:attribute name="number" type="xs:string"/> <xs:attribute name="expiry_date" type="xs:string"/> <xs:attribute name="control_number" type="xs:int"/> <xs:attribute name="type" type="xs:string"/> </xs:sequence> </xs:complexType> <xs:complexType … /> </xs:schema>

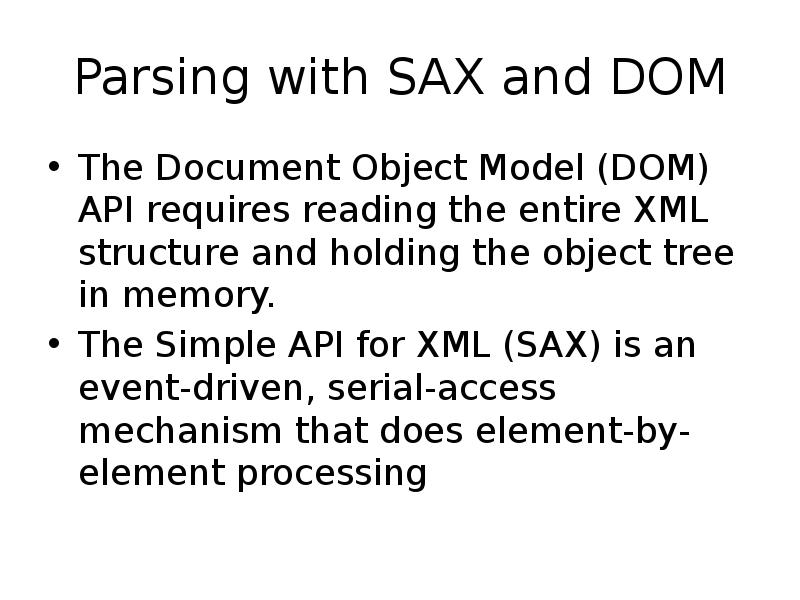

Parsing with SAX and DOM The Document Object Model (DOM) API requires reading the entire XML structure and holding the object tree in memory. The Simple API for XML (SAX) is an event-driven, serial-access mechanism that does element-by-element processing

Querying in XML XPath //content/order_line[unit_price>=20]/unit_price/text() XQuery for $orderLine in doc("order.xml")//content/order_line[@quantity>1] where $orderLine/unit_price < 50 return $orderLine/unit_price/text()

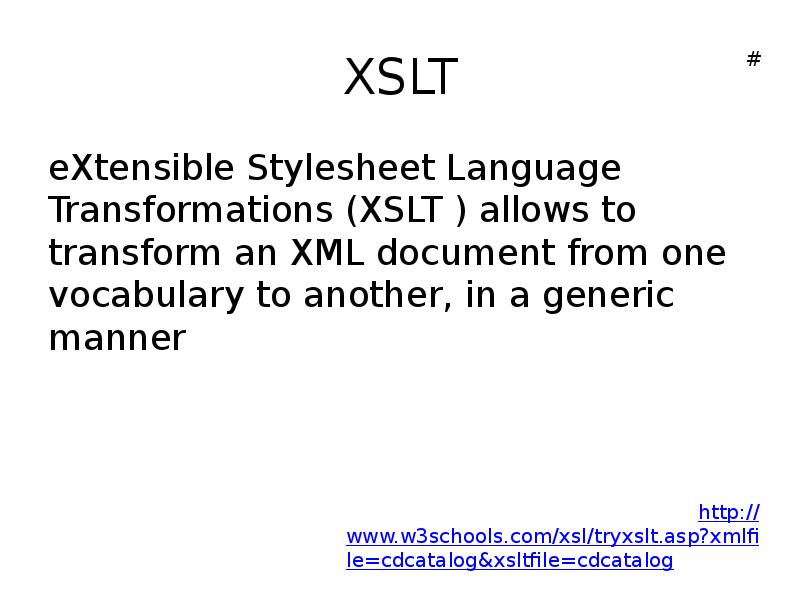

XSLT eXtensible Stylesheet Language Transformations (XSLT ) allows to transform an XML document from one vocabulary to another, in a generic manner

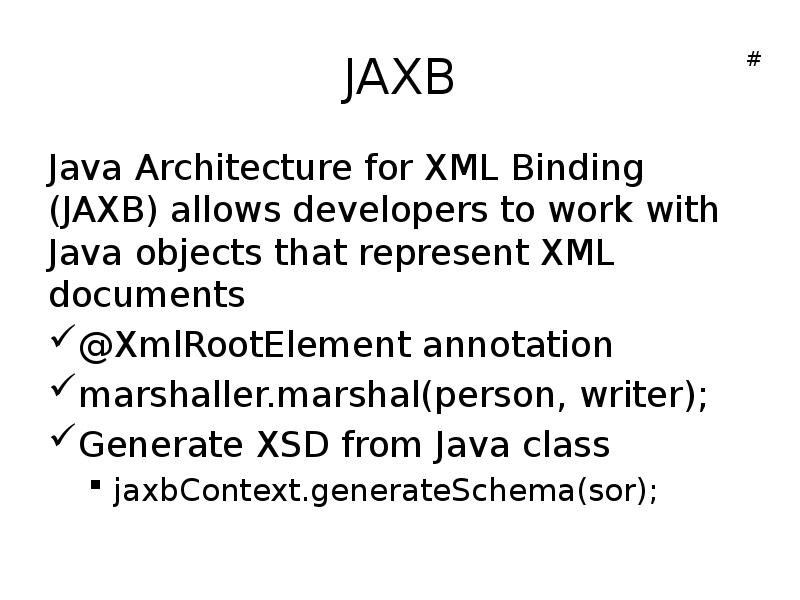

JAXB Java Architecture for XML Binding (JAXB) allows developers to work with Java objects that represent XML documents @XmlRootElement annotation marshaller.marshal(person, writer); Generate XSD from Java class jaxbContext.generateSchema(sor);

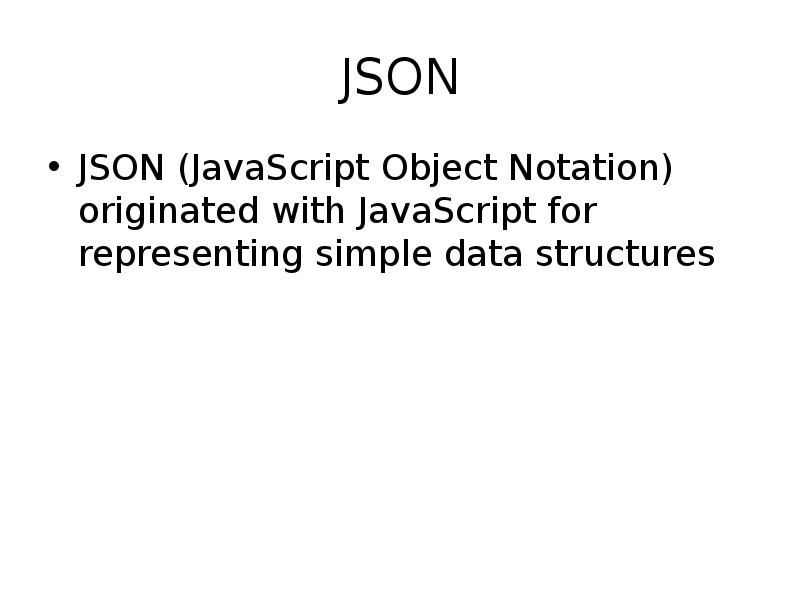

JSON JSON (JavaScript Object Notation) originated with JavaScript for representing simple data structures

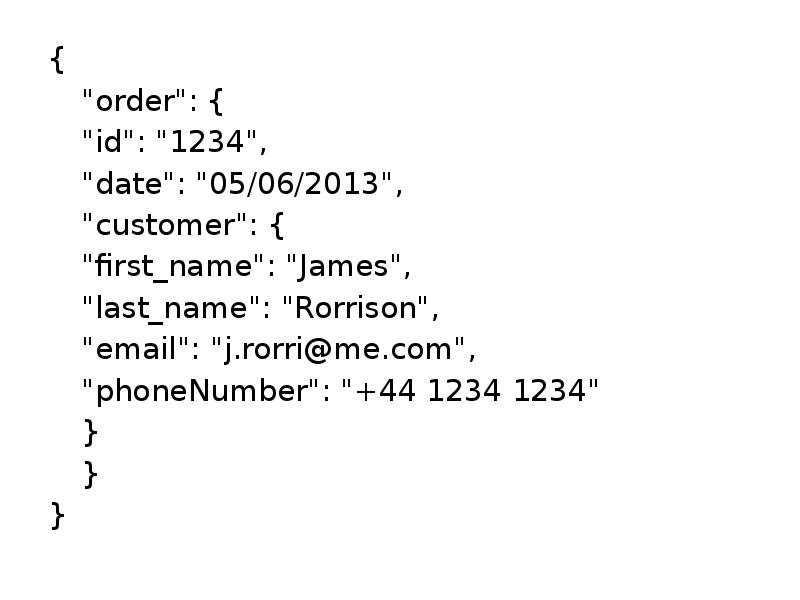

{ { "order": { "id": "1234", "date": "05/06/2013", "customer": { "first_name": "James", "last_name": "Rorrison", "email": "[email protected]", "phoneNumber": "+44 1234 1234" } } }

JSON Processing javax.json.JsonObject javax.json.JsonArray javax.json.Json OR org.json.JSONObject org.json.JSONArray

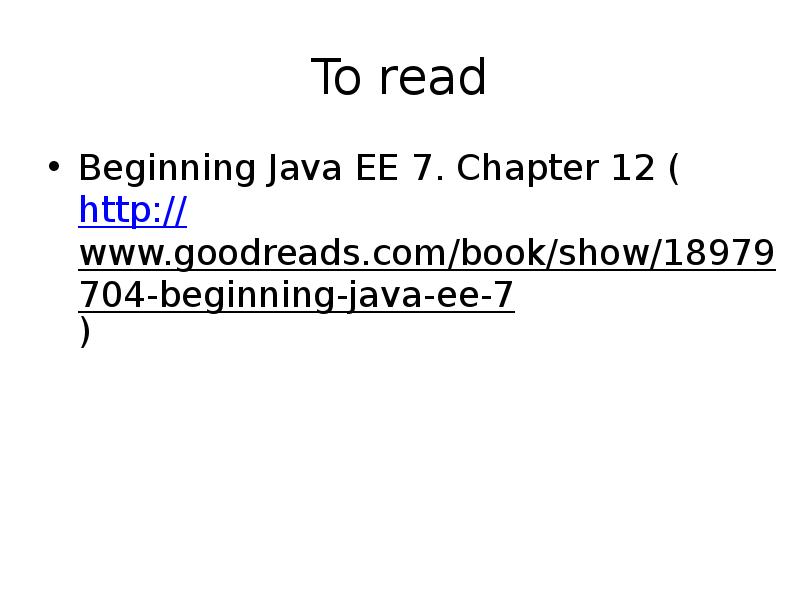

To read Beginning Java EE 7. Chapter 12 (http://www.goodreads.com/book/show/18979704-beginning-java-ee-7)

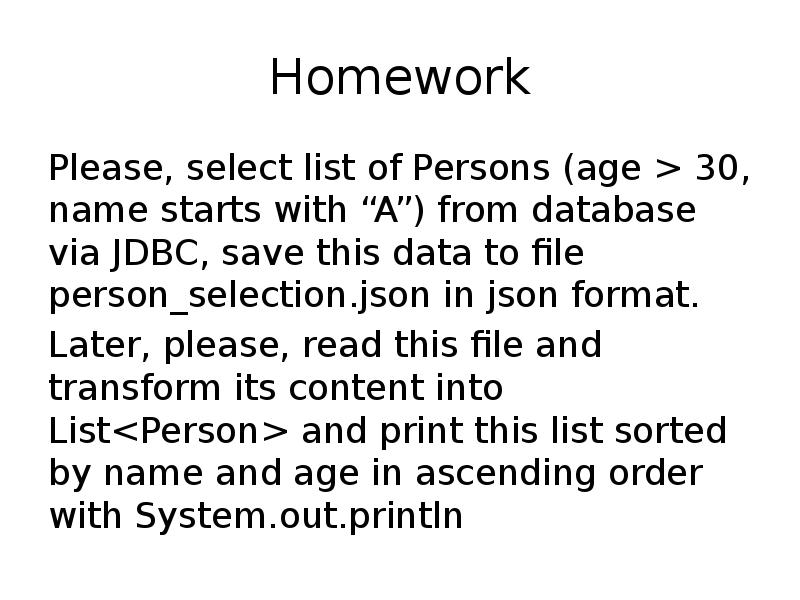

Homework Please, select list of Persons (age > 30, name starts with “A”) from database via JDBC, save this data to file person_selection.json in json format. Later, please, read this file and transform its content into List<Person> and print this list sorted by name and age in ascending order with System.out.println
