LoRa™ Technology

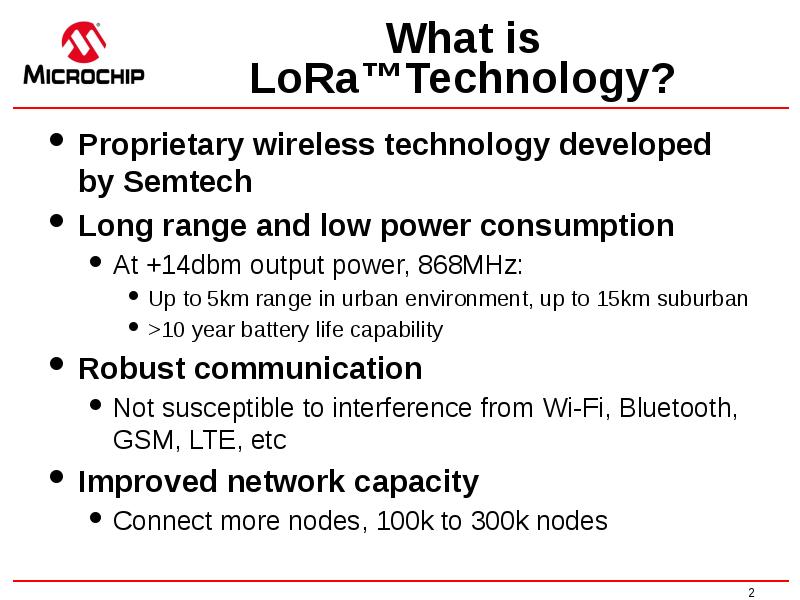

What is LoRa™Technology? Proprietary wireless technology developed by Semtech Long range and low power consumption At +14dbm output power, 868MHz: Up to 5km range in urban environment, up to 15km suburban >10 year battery life capability Robust communication Not susceptible to interference from Wi-Fi, Bluetooth, GSM, LTE, etc Improved network capacity Connect more nodes, 100k to 300k nodes

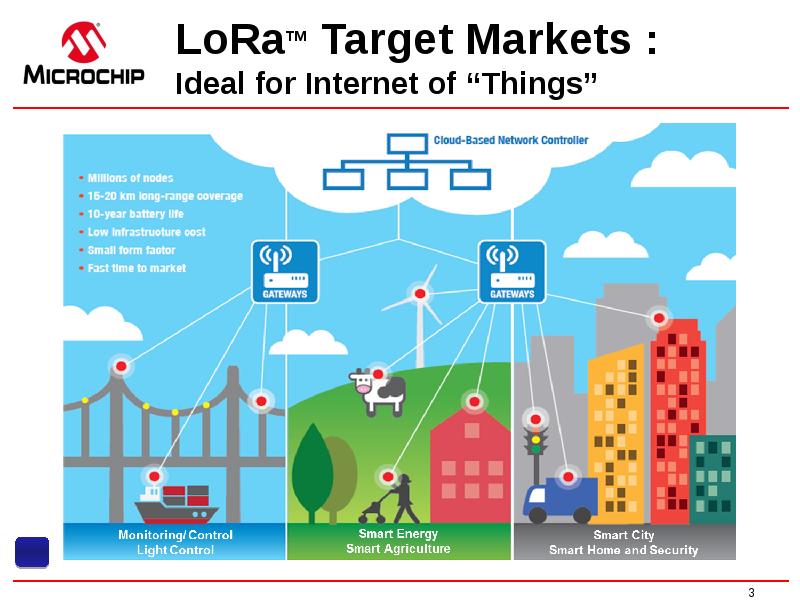

LoRaTM Target Markets : Ideal for Internet of “Things”

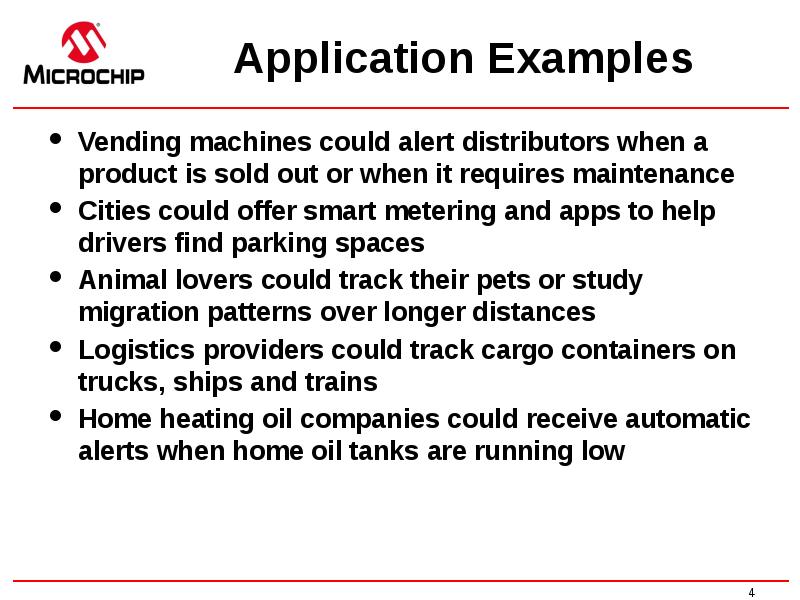

Application Examples Vending machines could alert distributors when a product is sold out or when it requires maintenance Cities could offer smart metering and apps to help drivers find parking spaces Animal lovers could track their pets or study migration patterns over longer distances Logistics providers could track cargo containers on trucks, ships and trains Home heating oil companies could receive automatic alerts when home oil tanks are running low

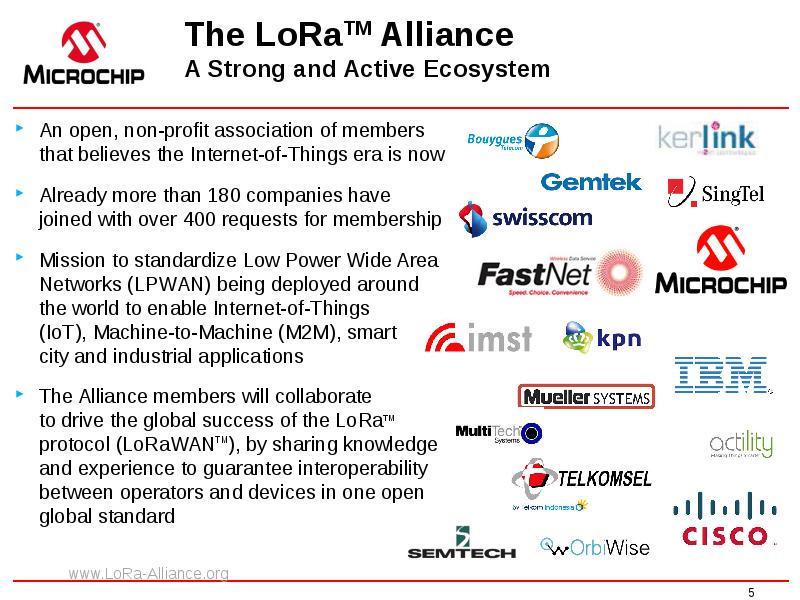

The LoRaTM Alliance A Strong and Active Ecosystem

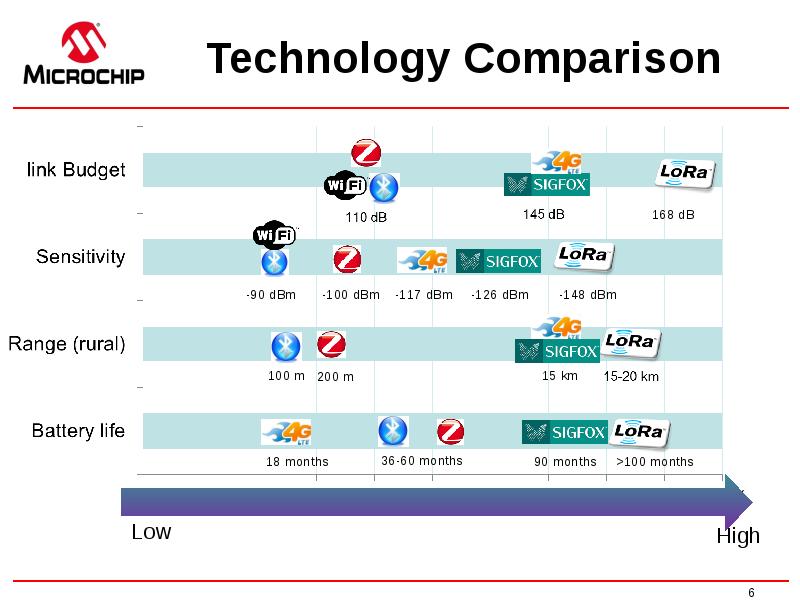

Technology Comparison

‘Chirp’ Spread-Spectrum Modulation Innovative & cost sensitive implementation Signal demodulation below the noise floor improves sensitivity by ~20dB Robust against interference, noise, and jamming Multiples signals can occupy the same channel (CDMA) Tolerant to frequency offsets (unlike DSSS)

Supports Private Networks Scalable & Flexible Architecture Options Private Network Individually managed networks, total end-to-end ownership Public Network Telco operator managed networks, servicing subscriber nodes Hybrid Network Enterprise deployment of Nodes & Gateways, for specific area coverage Provisioned to a commercial LoRaWAN server product

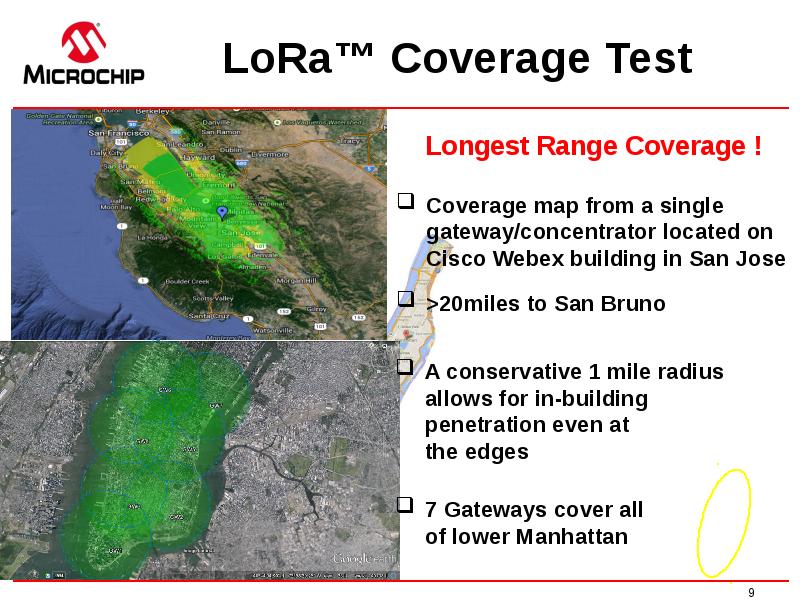

LoRa™ Coverage Test

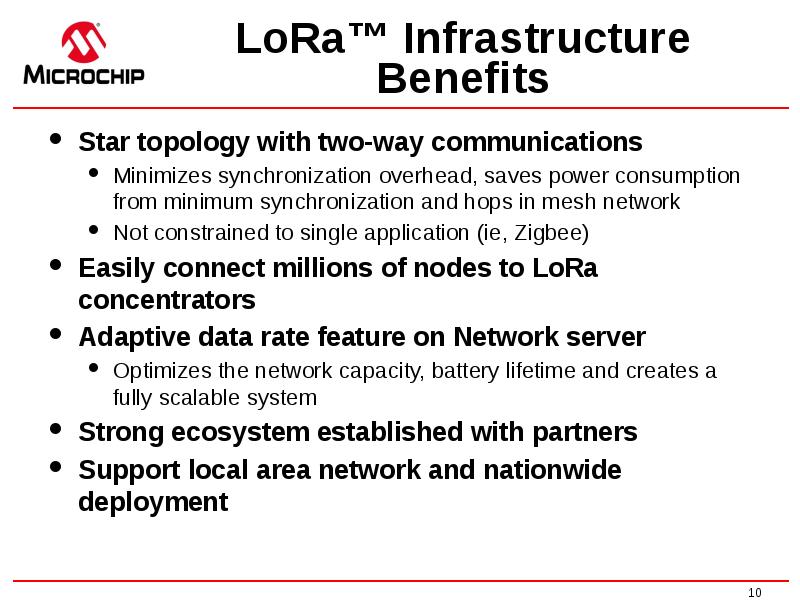

LoRa™ Infrastructure Benefits Star topology with two-way communications Minimizes synchronization overhead, saves power consumption from minimum synchronization and hops in mesh network Not constrained to single application (ie, Zigbee) Easily connect millions of nodes to LoRa concentrators Adaptive data rate feature on Network server Optimizes the network capacity, battery lifetime and creates a fully scalable system Strong ecosystem established with partners Support local area network and nationwide deployment

LoRaTM Partners

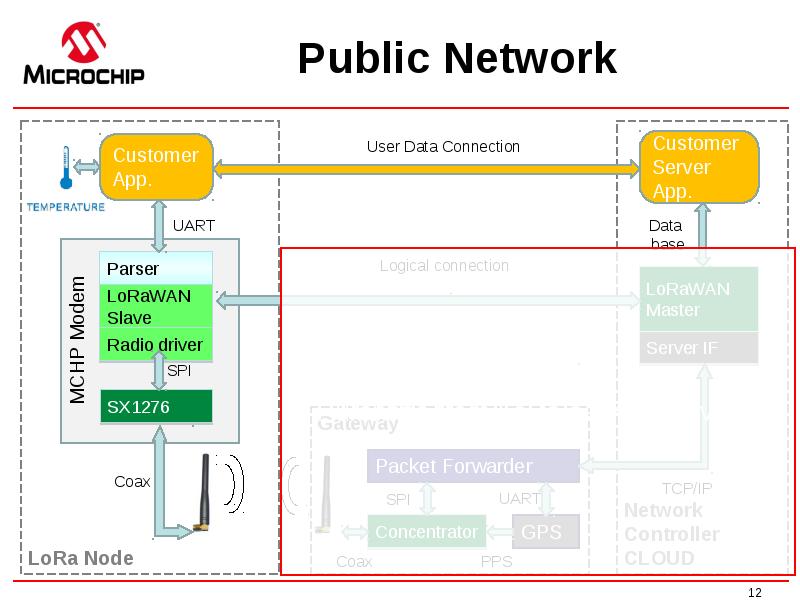

Public Network

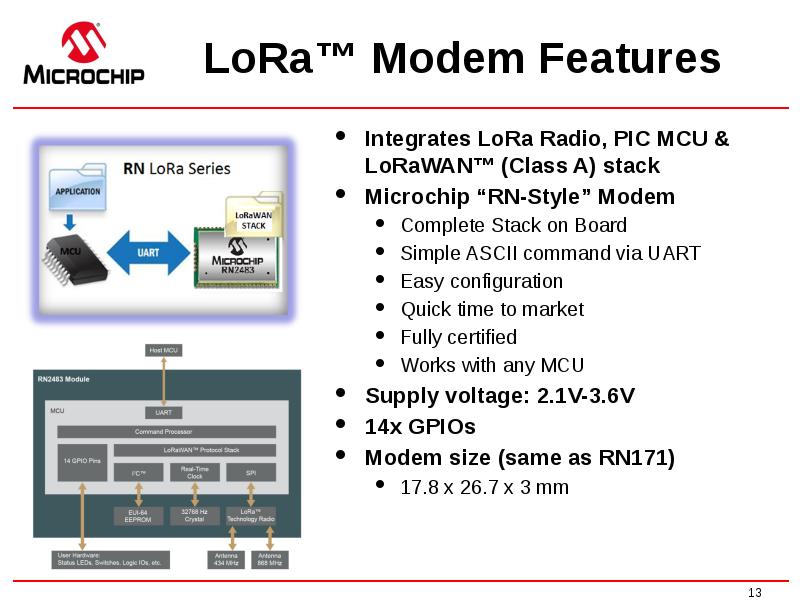

LoRa™ Modem Features Integrates LoRa Radio, PIC MCU & LoRaWAN™ (Class A) stack Microchip “RN-Style” Modem Complete Stack on Board Simple ASCII command via UART Easy configuration Quick time to market Fully certified Works with any MCU Supply voltage: 2.1V-3.6V 14x GPIOs Modem size (same as RN171) 17.8 x 26.7 x 3 mm

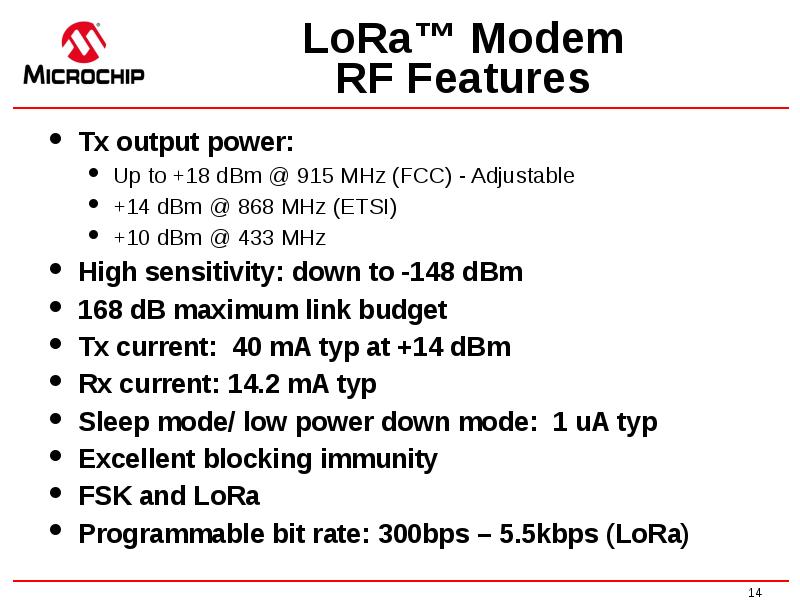

LoRa™ Modem RF Features Tx output power: Up to +18 dBm @ 915 MHz (FCC) - Adjustable +14 dBm @ 868 MHz (ETSI) +10 dBm @ 433 MHz High sensitivity: down to -148 dBm 168 dB maximum link budget Tx current: 40 mA typ at +14 dBm Rx current: 14.2 mA typ Sleep mode/ low power down mode: 1 uA typ Excellent blocking immunity FSK and LoRa Programmable bit rate: 300bps – 5.5kbps (LoRa)

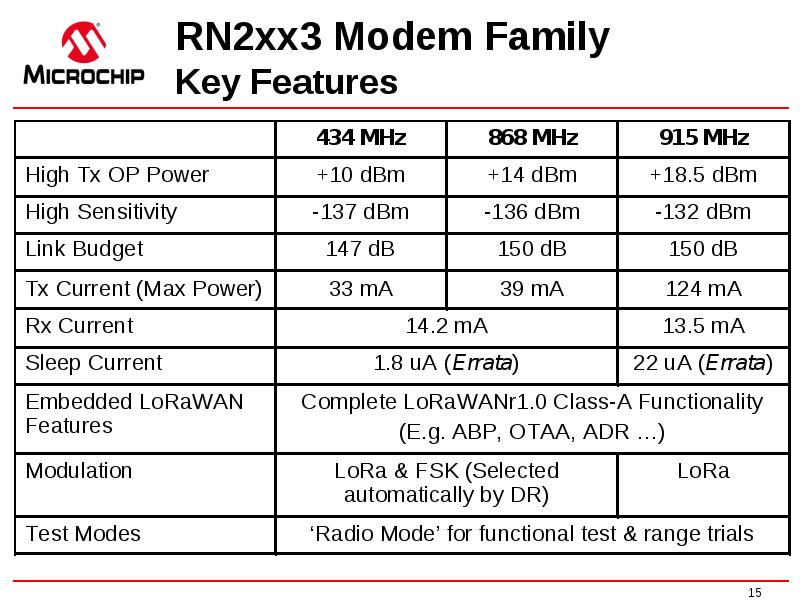

RN2xx3 Modem Family Key Features

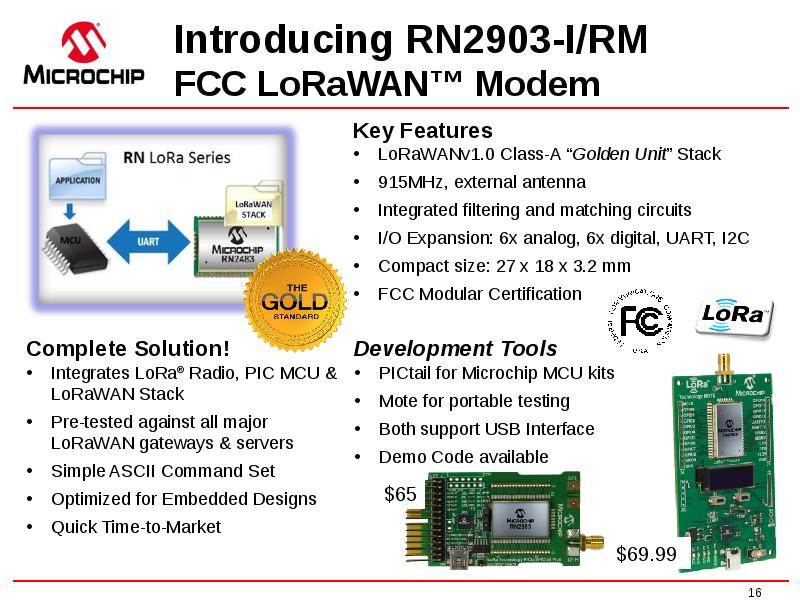

Introducing RN2903-I/RM FCC LoRaWAN™ Modem Key Features LoRaWANv1.0 Class-A “Golden Unit” Stack 915MHz, external antenna Integrated filtering and matching circuits I/O Expansion: 6x analog, 6x digital, UART, I2C Compact size: 27 x 18 x 3.2 mm FCC Modular Certification

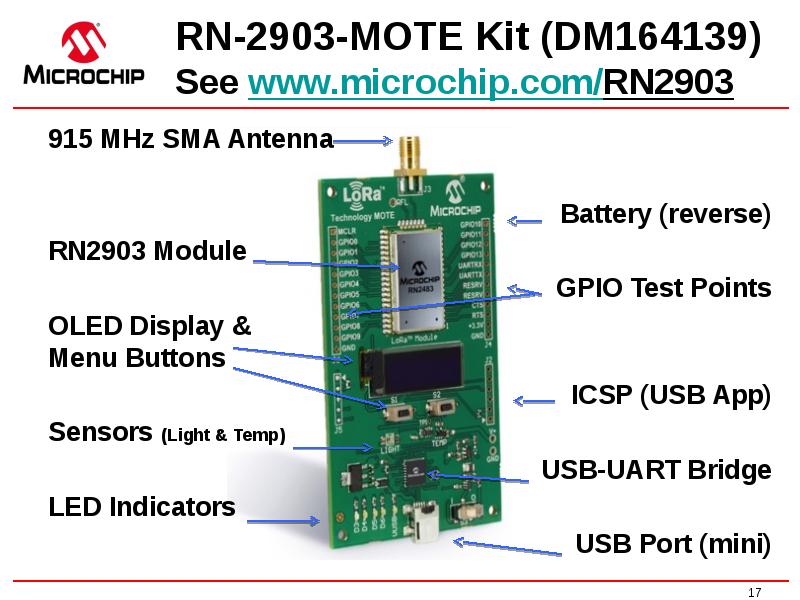

RN-2903-MOTE Kit (DM164139) See www.microchip.com/RN2903

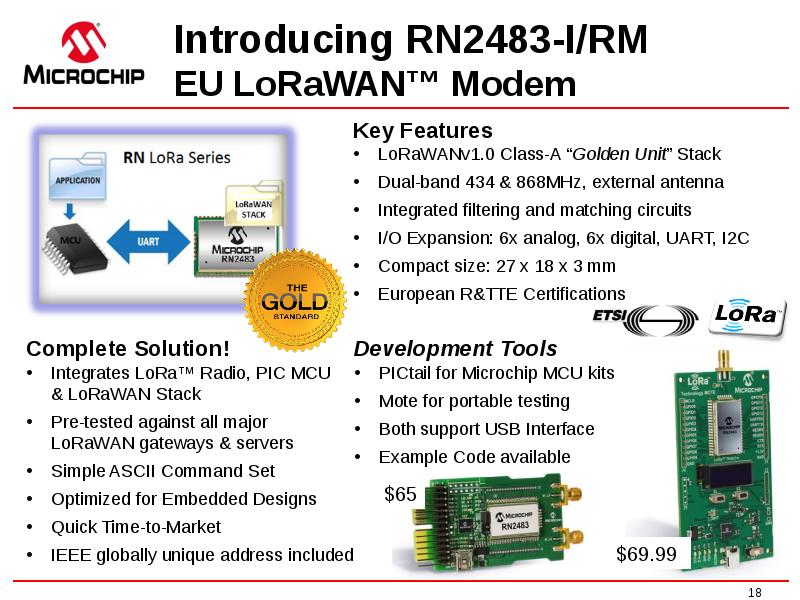

Introducing RN2483-I/RM EU LoRaWAN™ Modem Key Features LoRaWANv1.0 Class-A “Golden Unit” Stack Dual-band 434 & 868MHz, external antenna Integrated filtering and matching circuits I/O Expansion: 6x analog, 6x digital, UART, I2C Compact size: 27 x 18 x 3 mm European R&TTE Certifications

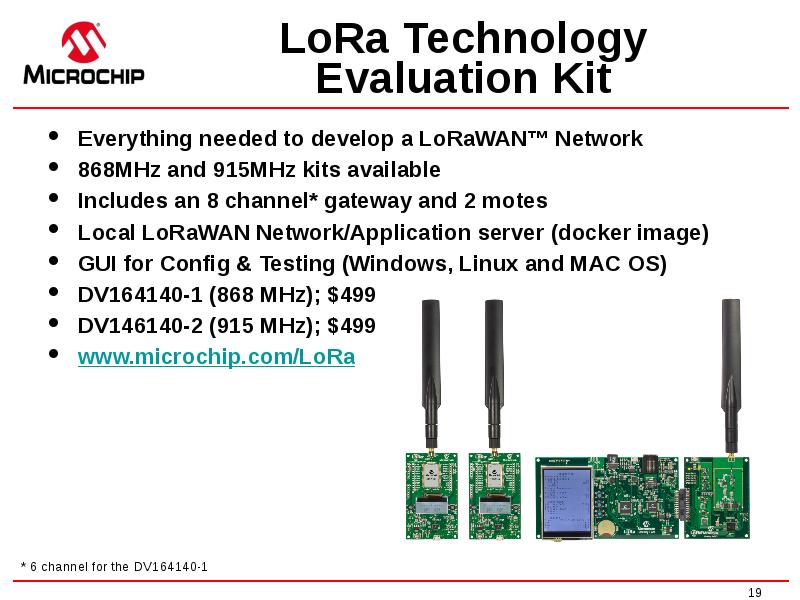

LoRa Technology Evaluation Kit Everything needed to develop a LoRaWAN™ Network 868MHz and 915MHz kits available Includes an 8 channel* gateway and 2 motes Local LoRaWAN Network/Application server (docker image) GUI for Config & Testing (Windows, Linux and MAC OS) DV164140-1 (868 MHz); $499 DV146140-2 (915 MHz); $499 www.microchip.com/LoRa

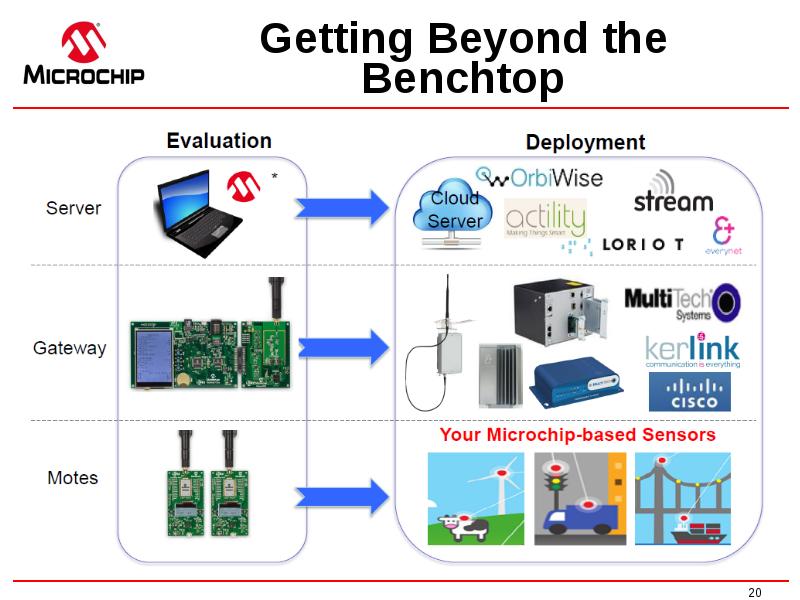

Getting Beyond the Benchtop

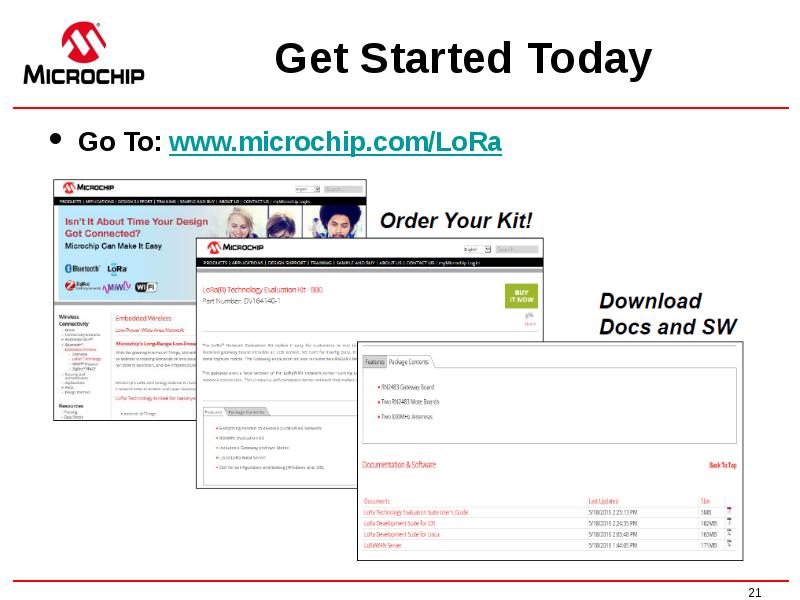

Get Started Today Go To: www.microchip.com/LoRa

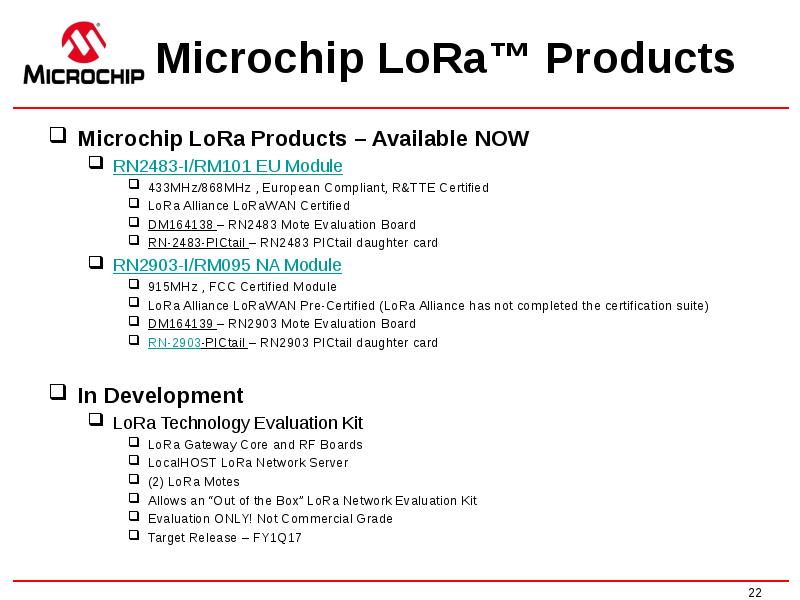

Microchip LoRa™ Products Microchip LoRa Products – Available NOW RN2483-I/RM101 EU Module 433MHz/868MHz , European Compliant, R&TTE Certified LoRa Alliance LoRaWAN Certified DM164138 – RN2483 Mote Evaluation Board RN-2483-PICtail – RN2483 PICtail daughter card RN2903-I/RM095 NA Module 915MHz , FCC Certified Module LoRa Alliance LoRaWAN Pre-Certified (LoRa Alliance has not completed the certification suite) DM164139 – RN2903 Mote Evaluation Board RN-2903-PICtail – RN2903 PICtail daughter card In Development LoRa Technology Evaluation Kit LoRa Gateway Core and RF Boards LocalHOST LoRa Network Server (2) LoRa Motes Allows an “Out of the Box” LoRa Network Evaluation Kit Evaluation ONLY! Not Commercial Grade Target Release – FY1Q17

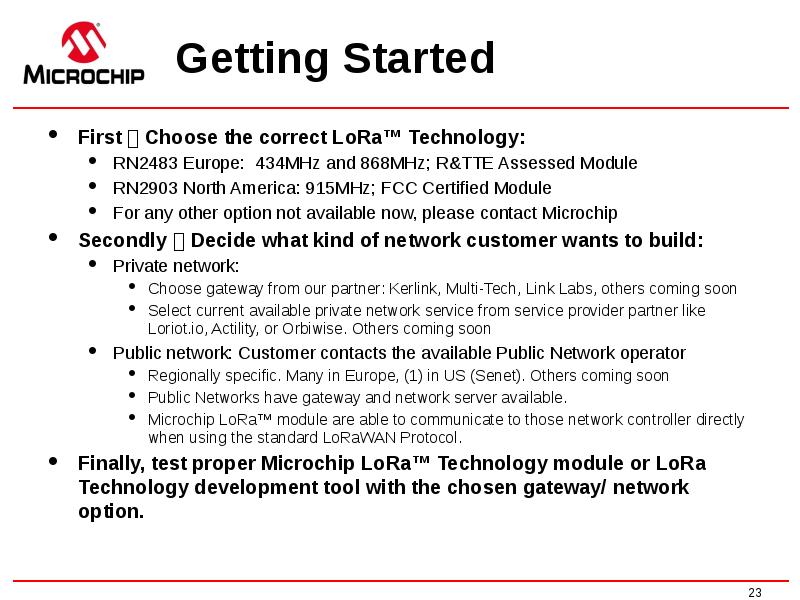

Getting Started First  Choose the correct LoRa™ Technology: RN2483 Europe: 434MHz and 868MHz; R&TTE Assessed Module RN2903 North America: 915MHz; FCC Certified Module For any other option not available now, please contact Microchip Secondly  Decide what kind of network customer wants to build: Private network: Choose gateway from our partner: Kerlink, Multi-Tech, Link Labs, others coming soon Select current available private network service from service provider partner like Loriot.io, Actility, or Orbiwise. Others coming soon Public network: Customer contacts the available Public Network operator Regionally specific. Many in Europe, (1) in US (Senet). Others coming soon Public Networks have gateway and network server available. Microchip LoRa™ module are able to communicate to those network controller directly when using the standard LoRaWAN Protocol. Finally, test proper Microchip LoRa™ Technology module or LoRa Technology development tool with the chosen gateway/ network option.

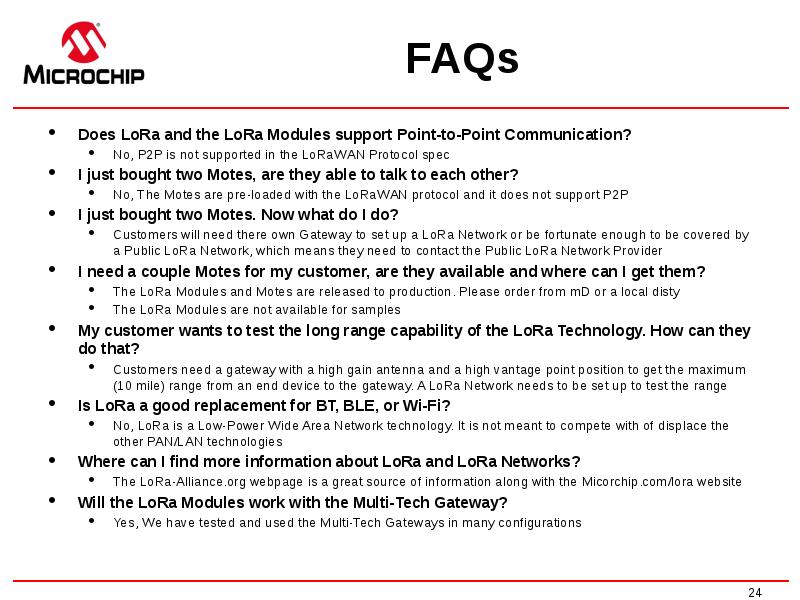

FAQs Does LoRa and the LoRa Modules support Point-to-Point Communication? No, P2P is not supported in the LoRaWAN Protocol spec I just bought two Motes, are they able to talk to each other? No, The Motes are pre-loaded with the LoRaWAN protocol and it does not support P2P I just bought two Motes. Now what do I do? Customers will need there own Gateway to set up a LoRa Network or be fortunate enough to be covered by a Public LoRa Network, which means they need to contact the Public LoRa Network Provider I need a couple Motes for my customer, are they available and where can I get them? The LoRa Modules and Motes are released to production. Please order from mD or a local disty The LoRa Modules are not available for samples My customer wants to test the long range capability of the LoRa Technology. How can they do that? Customers need a gateway with a high gain antenna and a high vantage point position to get the maximum (10 mile) range from an end device to the gateway. A LoRa Network needs to be set up to test the range Is LoRa a good replacement for BT, BLE, or Wi-Fi? No, LoRa is a Low-Power Wide Area Network technology. It is not meant to compete with of displace the other PAN/LAN technologies Where can I find more information about LoRa and LoRa Networks? The LoRa-Alliance.org webpage is a great source of information along with the Micorchip.com/lora website Will the LoRa Modules work with the Multi-Tech Gateway? Yes, We have tested and used the Multi-Tech Gateways in many configurations

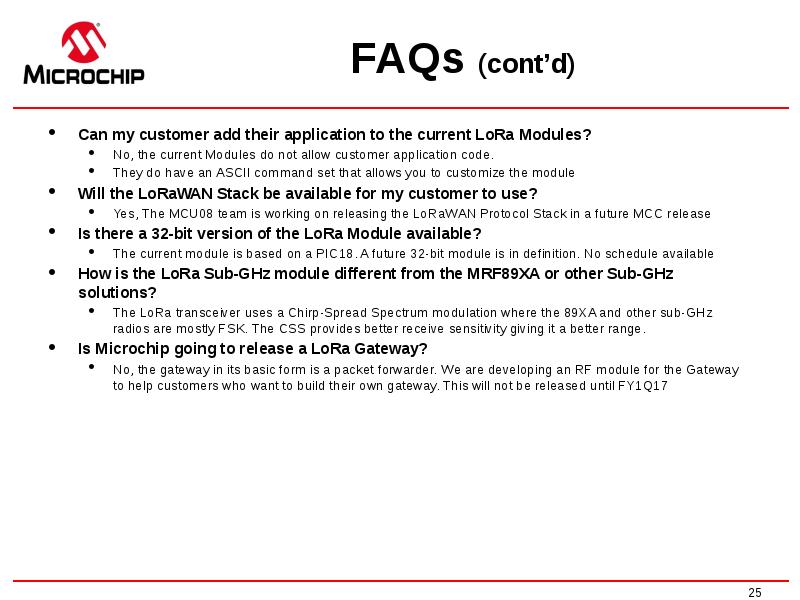

FAQs (cont’d) Can my customer add their application to the current LoRa Modules? No, the current Modules do not allow customer application code. They do have an ASCII command set that allows you to customize the module Will the LoRaWAN Stack be available for my customer to use? Yes, The MCU08 team is working on releasing the LoRaWAN Protocol Stack in a future MCC release Is there a 32-bit version of the LoRa Module available? The current module is based on a PIC18. A future 32-bit module is in definition. No schedule available How is the LoRa Sub-GHz module different from the MRF89XA or other Sub-GHz solutions? The LoRa transceiver uses a Chirp-Spread Spectrum modulation where the 89XA and other sub-GHz radios are mostly FSK. The CSS provides better receive sensitivity giving it a better range. Is Microchip going to release a LoRa Gateway? No, the gateway in its basic form is a packet forwarder. We are developing an RF module for the Gateway to help customers who want to build their own gateway. This will not be released until FY1Q17

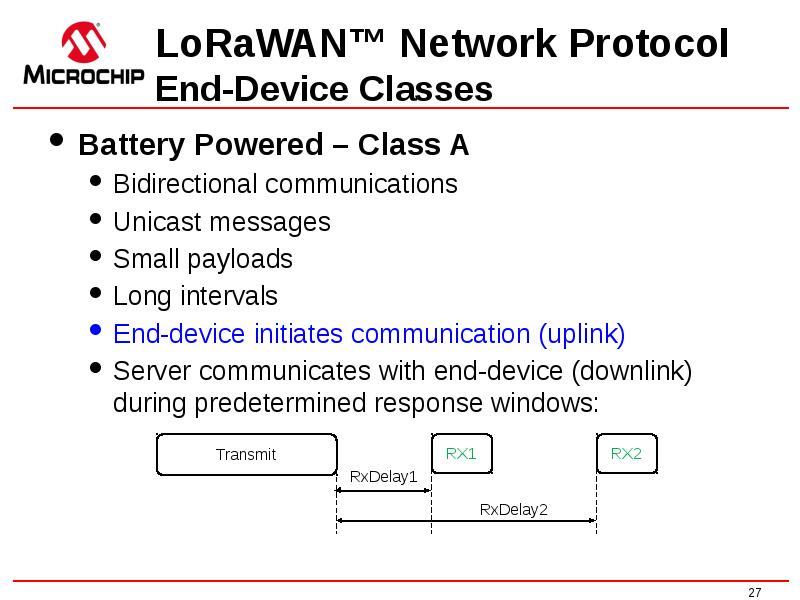

Battery Powered – Class A Battery Powered – Class A Bidirectional communications Unicast messages Small payloads Long intervals End-device initiates communication (uplink) Server communicates with end-device (downlink) during predetermined response windows:

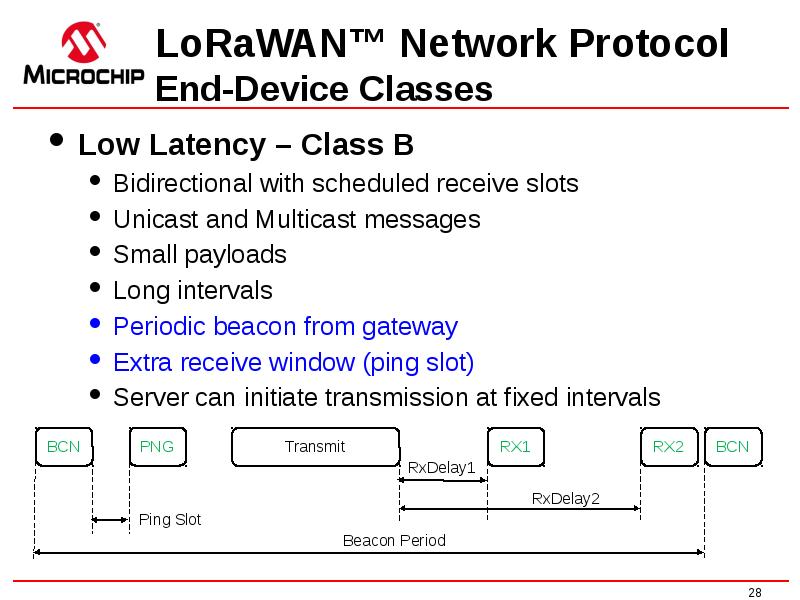

Low Latency – Class B Low Latency – Class B Bidirectional with scheduled receive slots Unicast and Multicast messages Small payloads Long intervals Periodic beacon from gateway Extra receive window (ping slot) Server can initiate transmission at fixed intervals

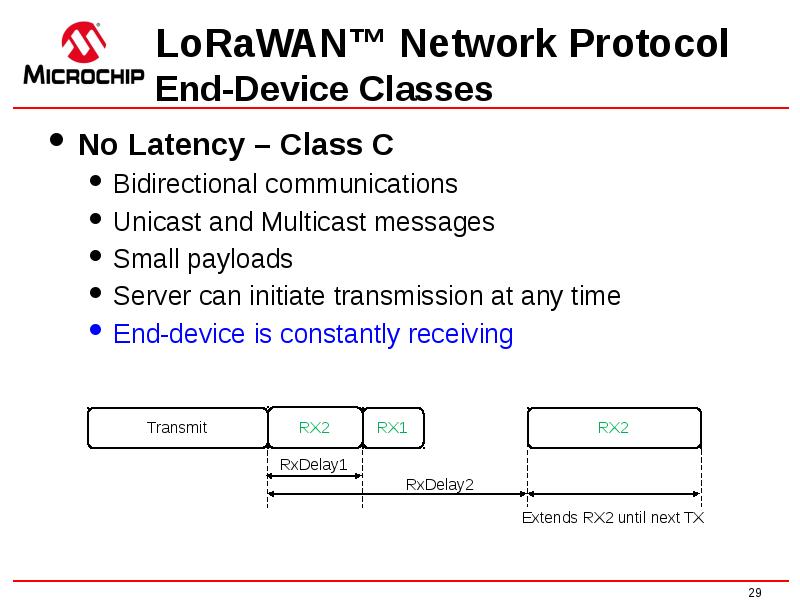

No Latency – Class C No Latency – Class C Bidirectional communications Unicast and Multicast messages Small payloads Server can initiate transmission at any time End-device is constantly receiving

Q3 – Protocol Overhead

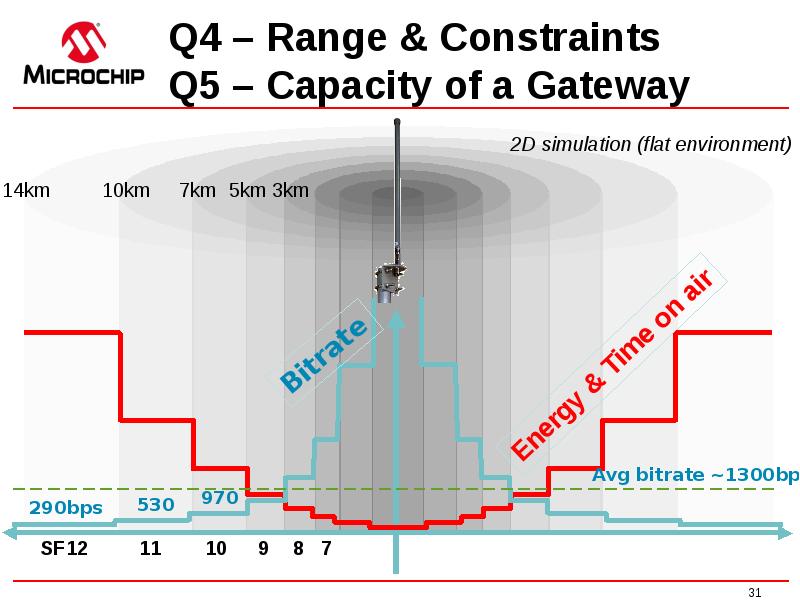

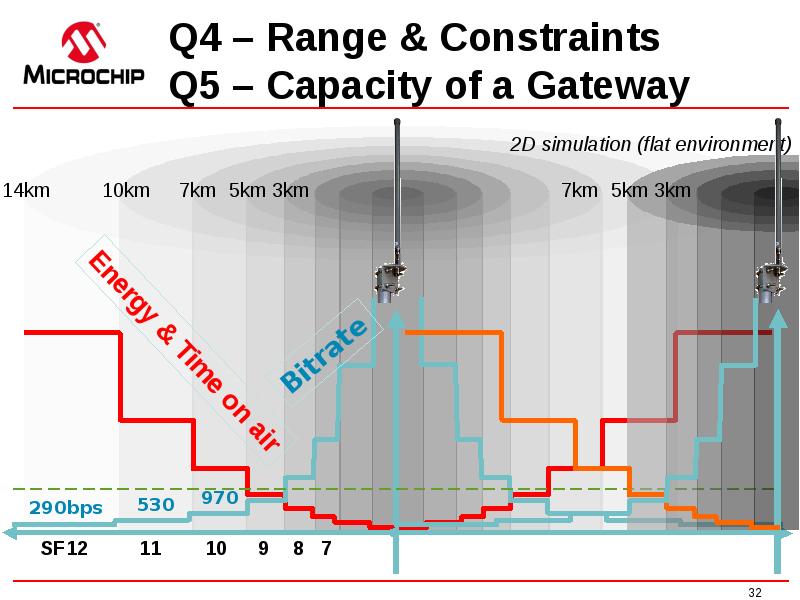

Q4 – Range & Constraints Q5 – Capacity of a Gateway

Q4 – Range & Constraints Q5 – Capacity of a Gateway

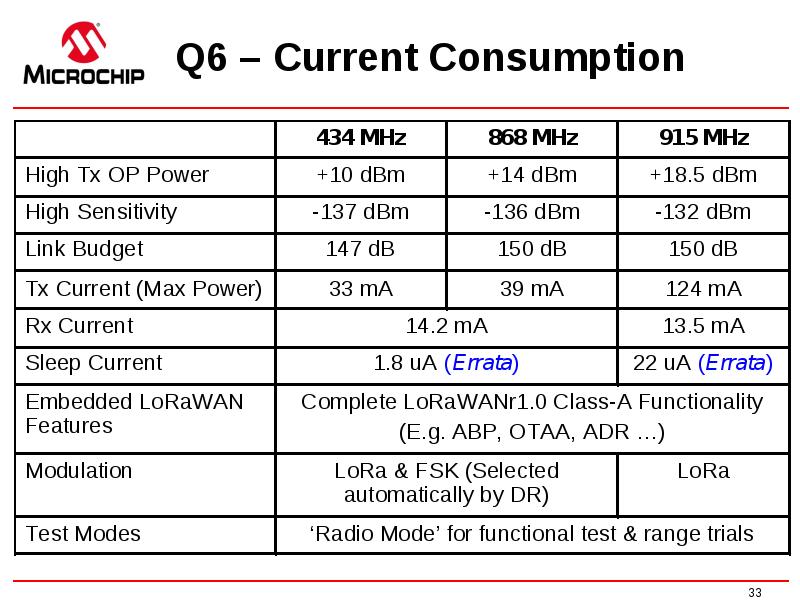

Q6 – Current Consumption

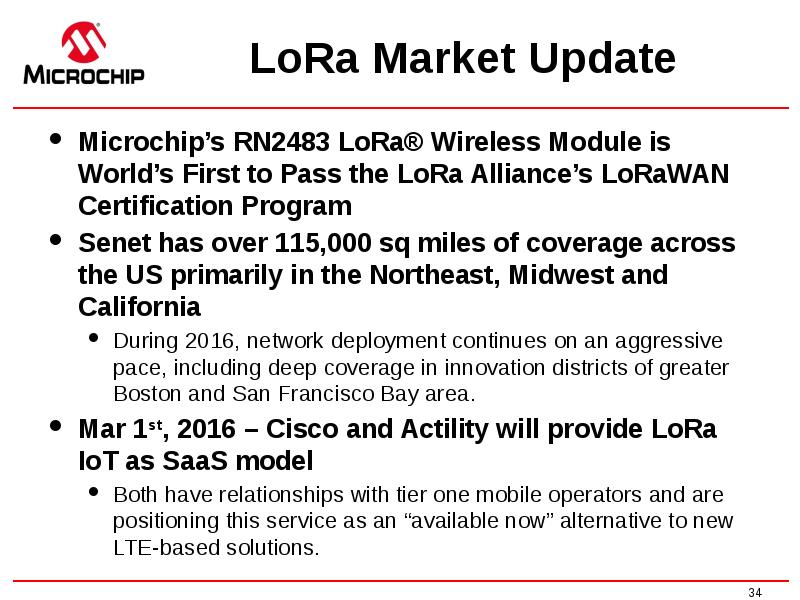

LoRa Market Update Microchip’s RN2483 LoRa® Wireless Module is World’s First to Pass the LoRa Alliance’s LoRaWAN Certification Program Senet has over 115,000 sq miles of coverage across the US primarily in the Northeast, Midwest and California  During 2016, network deployment continues on an aggressive pace, including deep coverage in innovation districts of greater Boston and San Francisco Bay area.  Mar 1st, 2016 – Cisco and Actility will provide LoRa IoT as SaaS model Both have relationships with tier one mobile operators and are positioning this service as an “available now” alternative to new LTE-based solutions.

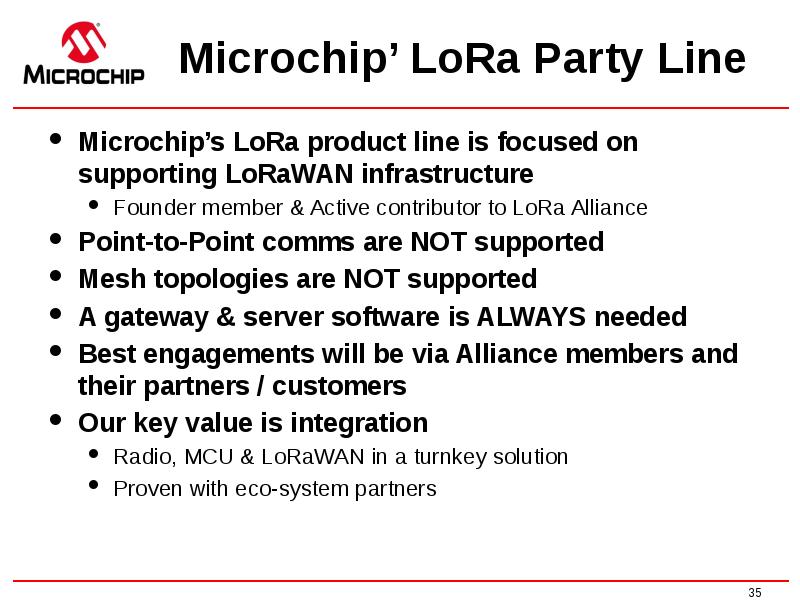

Microchip’ LoRa Party Line Microchip’s LoRa product line is focused on supporting LoRaWAN infrastructure Founder member & Active contributor to LoRa Alliance Point-to-Point comms are NOT supported Mesh topologies are NOT supported A gateway & server software is ALWAYS needed Best engagements will be via Alliance members and their partners / customers Our key value is integration Radio, MCU & LoRaWAN in a turnkey solution Proven with eco-system partners

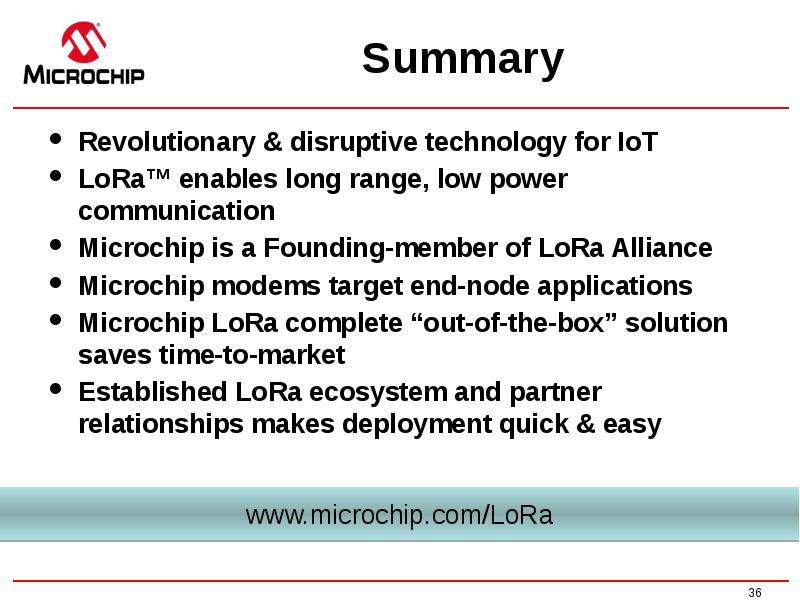

Summary Revolutionary & disruptive technology for IoT LoRa™ enables long range, low power communication Microchip is a Founding-member of LoRa Alliance Microchip modems target end-node applications Microchip LoRa complete “out-of-the-box” solution saves time-to-market Established LoRa ecosystem and partner relationships makes deployment quick & easy

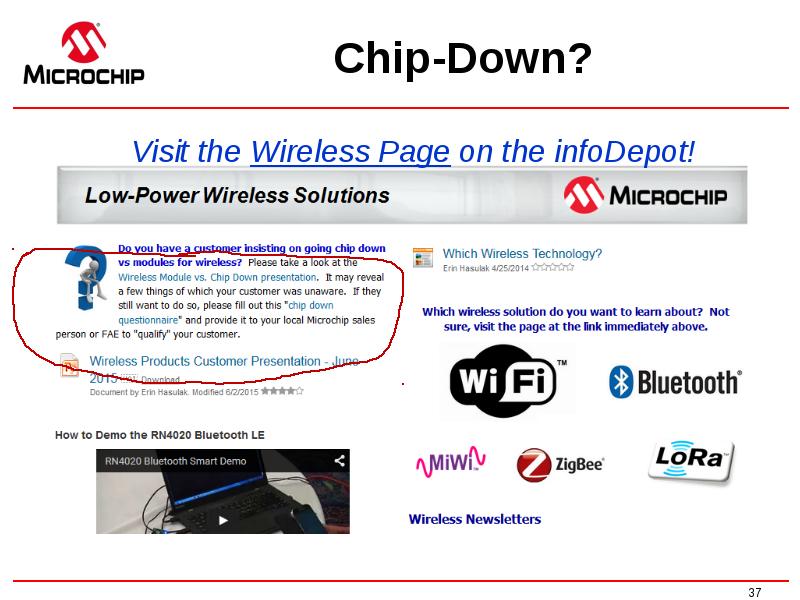

Chip-Down?
