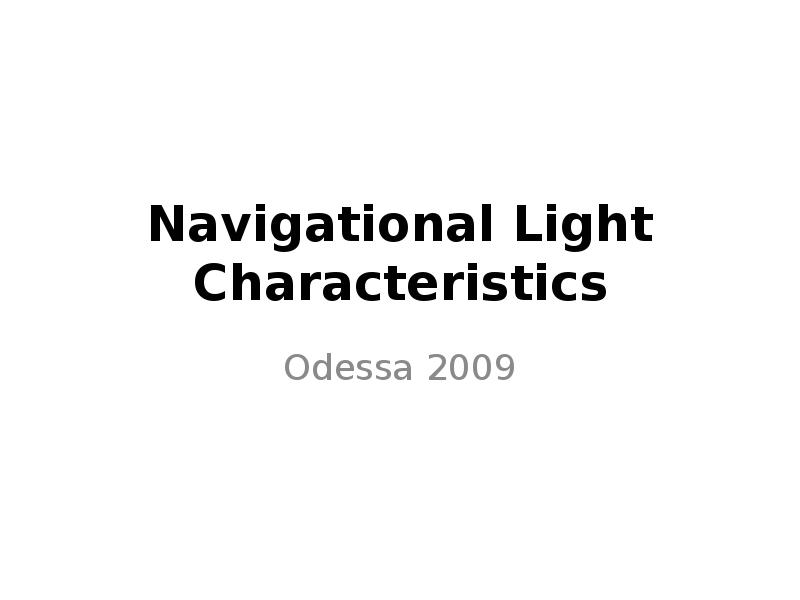

Navigational Light Characteristics Odessa 2009

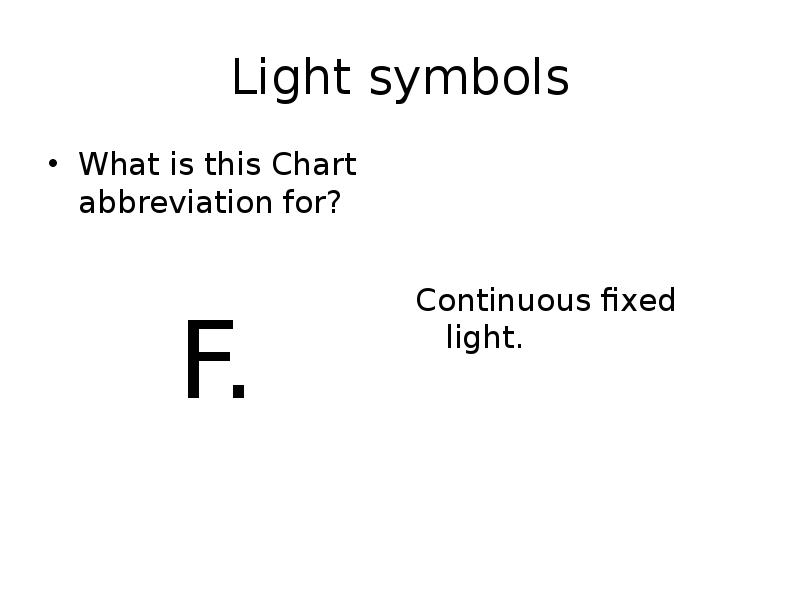

Light symbols What is this Chart abbreviation for? F.

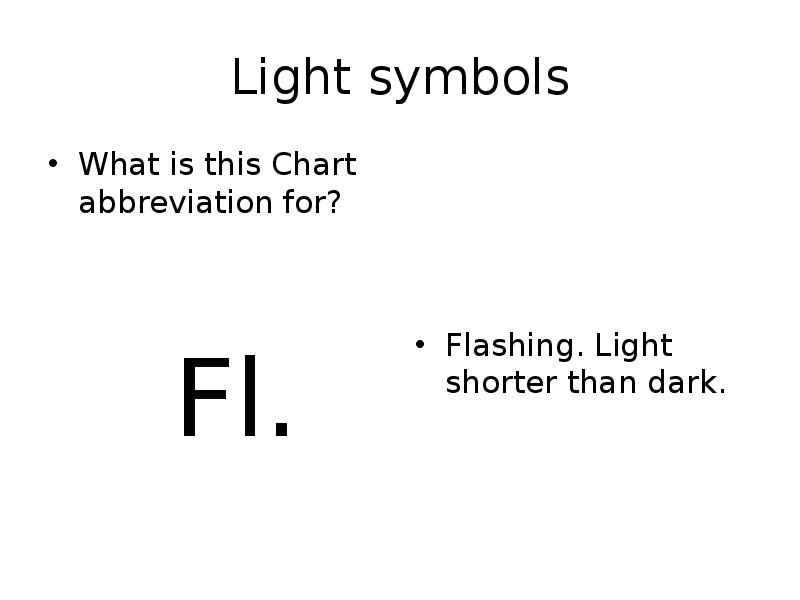

Light symbols What is this Chart abbreviation for? Fl.

Light symbols What is this Chart abbreviation for? Iso.

Light symbols What is this Chart abbreviation for? Gp.Fl.(3)

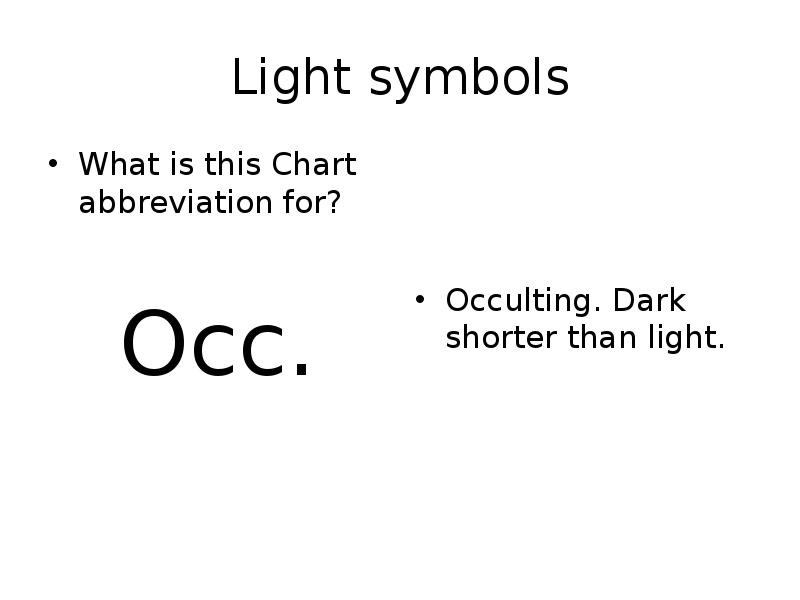

Light symbols What is this Chart abbreviation for? Occ.

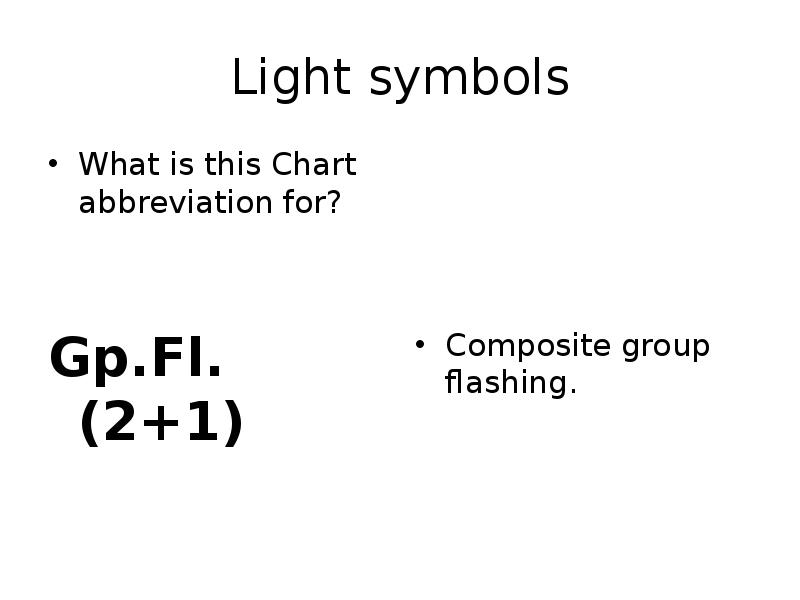

Light symbols What is this Chart abbreviation for? Gp.Fl.(2+1)

Light symbols What is this Chart abbreviation for? Qk.Fl. Quick flashing 50 or 60 per minute. Where are you likely to see this type of light? Cardinal Marks - North/South etc

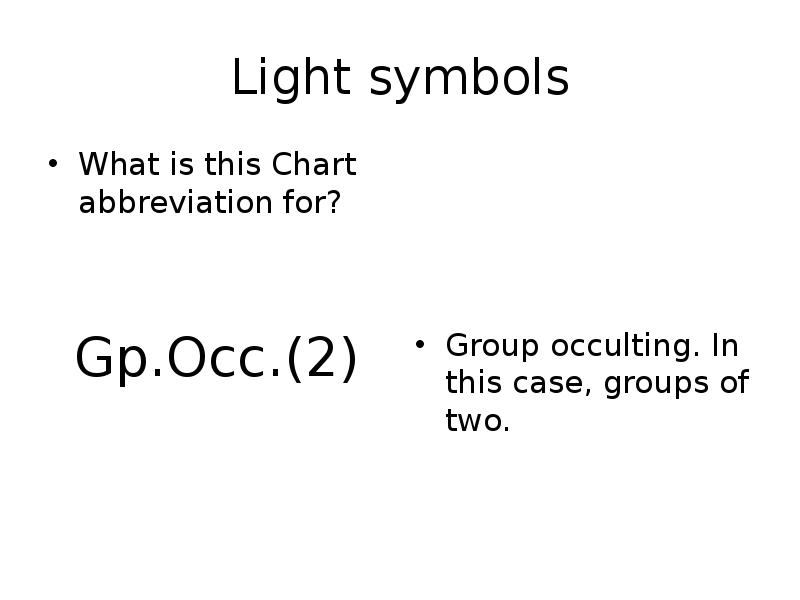

Light symbols What is this Chart abbreviation for? Gp.Occ.(2)

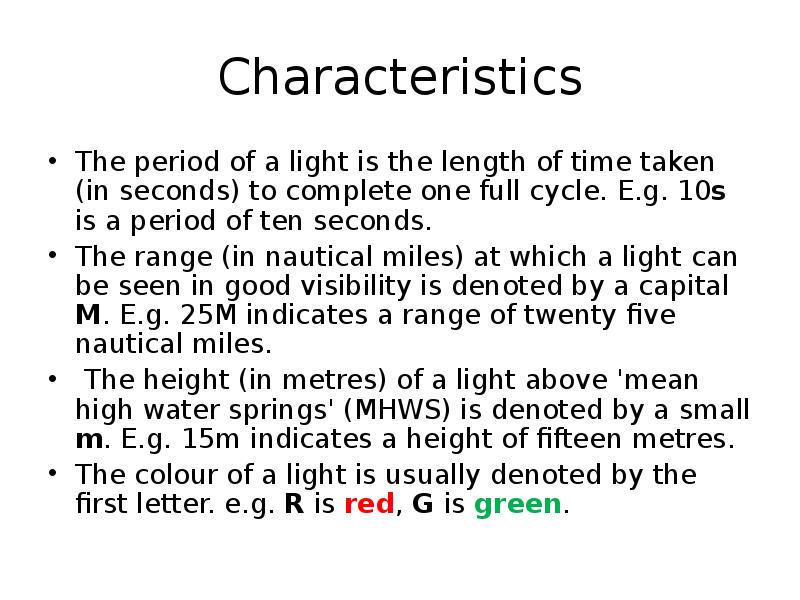

Characteristics The period of a light is the length of time taken (in seconds) to complete one full cycle. E.g. 10s is a period of ten seconds. The range (in nautical miles) at which a light can be seen in good visibility is denoted by a capital M. E.g. 25M indicates a range of twenty five nautical miles. The height (in metres) of a light above 'mean high water springs' (MHWS) is denoted by a small m. E.g. 15m indicates a height of fifteen metres. The colour of a light is usually denoted by the first letter. e.g. R is red, G is green.

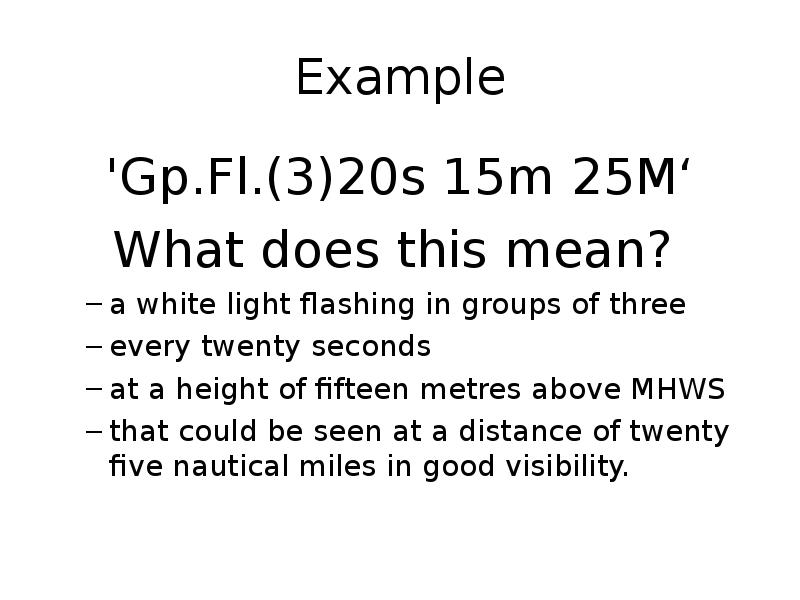

Example 'Gp.Fl.(3)20s 15m 25M‘ What does this mean? a white light flashing in groups of three every twenty seconds at a height of fifteen metres above MHWS that could be seen at a distance of twenty five nautical miles in good visibility.

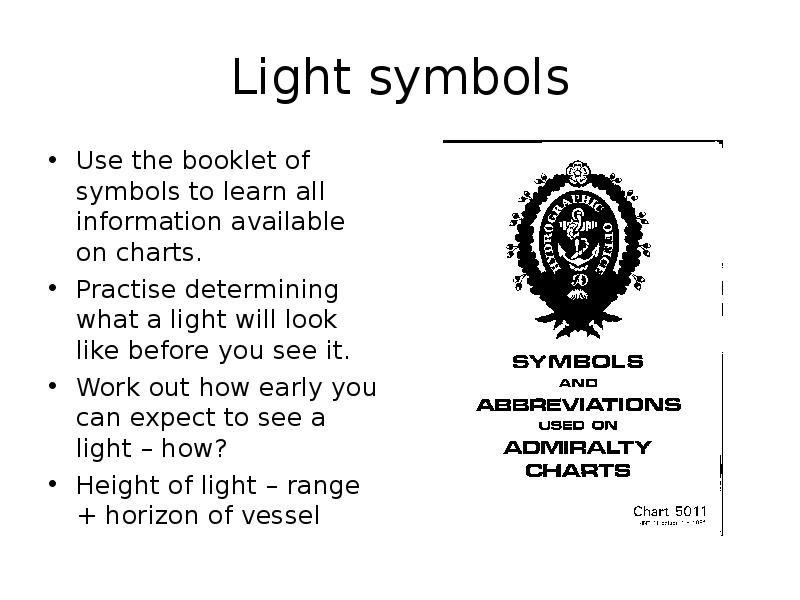

Light symbols Use the booklet of symbols to learn all information available on charts. Practise determining what a light will look like before you see it. Work out how early you can expect to see a light – how? Height of light – range + horizon of vessel
